RA9205

Respiratory protection kit for 1 person with a haft mask, ambient air pump & 50 feet, Allegro, no 9205-01.

$1,870.00

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

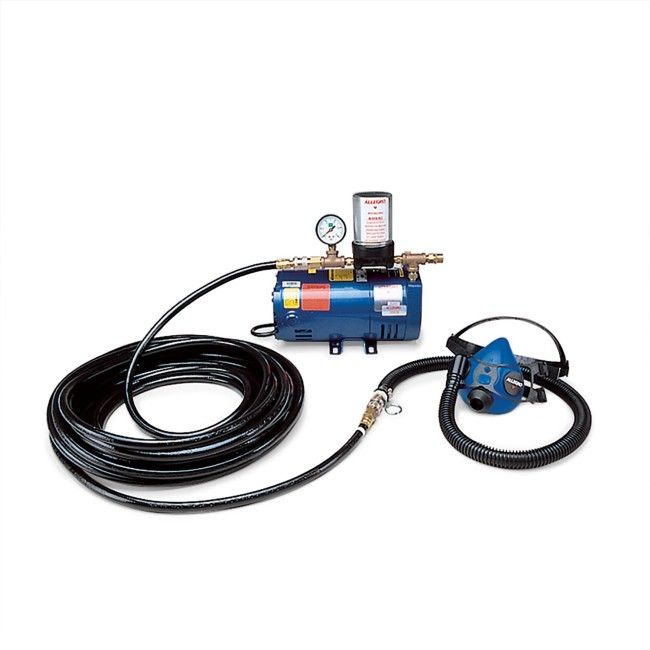

Respiratory protection kit for 1 person with a haft mask, ambient air pump & 50 feet, Allegro, no 9205-01.

Allegro respiratory protection kit for one worker included: one low-pressure air source powered air-supply pump, one 50-foot-long hose and one haft mask respirator, one size fit most (medium/large).

Code of the manufacturer Allegro: 9205-01.

This kit offers an all-set configuration to provide respiratory protection for one person. The pump is designed to transfer breathable air from an uncontaminated location to a worker who requires supply air. The ambient air pump connects to a standard power outlet, eliminating the need for special wiring and electrical compatibility issues. In addition, it can be easily transported from one job site to another.

This kit contains:

For more specific information about the products included in this set, consult the product sheet by clicking on the product code in green.

Application:
This type of respiratory protection is recommended for work that will release solid and liquid particles into the air or work in environments where you find contaminants and/or biological particles in the air. The air supply system is required when the worker is in the presence of a contaminant that cannot be filtered by cartridges or filters.

Restriction:
You should not use a respirator when a beard is visible. Indeed, facial hair or any other condition that may prevent direct contact between the edge of the mask and the face may compromise a worker’s safety by not fully protecting him.

This kit offers a protection factor of 1000 NIOSH approved when you fully use all components designated by the manufacturer Allegro. You must check the level of respiratory risk associated with its use. The manufacturer has designed its products for environments with contaminant concentrations that do not exceed the limit that results in the immediate death of the worker (IDLH). This must be taken into account if the pump stops working. In addition, be sure to choose the location of your air source wisely because the pump is designed to transfer breathing air from an uncontaminated area to a worker. This kit offers a protection factor up to 1,000 times the exposure limit allowed by the CNESST or any other applicable government regulation. This kit is not recommended for sandblasting work. Do not use this respirator kit in areas where there is a risk of oxygen deficiency.

Maintenance and service life:

Mask maintenance:
This kit is reusable provided you perform the maintenance and storage according to the rules. Allegro recommends that you always inspect your mask before using it, clean it after using it, and keep it in its packaging when it is not in use. When cleaning, you should not use solvents since they can weaken some components of the mask, which can affect its effectiveness.

Pump maintenance:

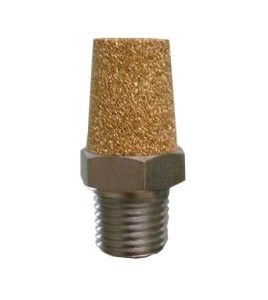

The ambient air pump must not be fed to a generator. To avoid damaging the pump, we recommend that you attach the hose and the face part before starting it. Replace the inlet (RA9700-07) and exhaust (RA9700-02) filters after 200 hours of use. Replace carbon vanes around 400 to 500 hours of use (RA9700-41S).

Hose maintenance:
This hose could be washed by hand with cold or warm water and a mild detergent, thoroughly rinsed the inner part of the hose to remove traces of soap. It must also be dried in the open air away from the sun’s rays.

Suggestions:
Also take care to provide you with spare parts for the haft mask respirator such as: the exhalation valve (RA9920-03B). And why not the parts of engine maintenance: the inlet filter (RA9700-07) and exhaust filter (RA9700-02), carbon vanes (RA9700-41S). Please note that his items are available only on special order only, the supply may vary from 2 to 3 weeks.

Possible other configurations:

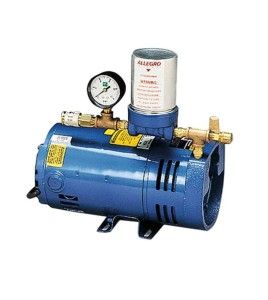

The RA9806 (A-300) pump offers the ability to be configured with different size hoses as well as with other facial parts. You can choose air supply hoses of 25, 50 or 100 feet (RA9100 and RA9100-100), choose up to 1 type respirator half mask (RA9920) or full-face mask (RA9901). By cons you cannot use a hood.

To Consider Before Buying:
If you chose this specific model of respiratory protection, it is to protect a worker with a half-mask. You must remember that if you intend this kit to a man it must be finely shaved before using it. From experience we know that this requirement prescribed by standards (CSA and NIOSH) and by government agencies is very difficult to obtain daily. Your challenge will be to require the male worker to be finely shaved and to monitor daily or to opt for a hood. The problem with this model pump is that it cannot provide breathable air to a worker equipped with a hood. The capacity of the pump does not allow it. To obtain a powerful enough pump to feed a worker equipped with a hood you must choose the pump (RA9821) or the kit with hood (RA9220).

For more technical details, please refer to the attached PDF documents on” Download “tab under ‘More info’ tab.

Type of productSafety equipment
Main categoryPersonal protection
Sub categoryRespiratory protection
Sub sub categoryAllegro low pressure air-supplied respirators
Name of the productRespiratory protection kit
Product codeRA9205
Approved/CertifiedMeets NIOSH
ManufacturerAllegro industries
Country of originUnited State of America
Protection factorProtection factor of 1000
Eye protectionNo eye protection
Type of harness2 attachment points
Air supply systemLow pressure
Pump TypeCarbon rotary vane and oil-less motor
Pump VanesCarbon construction
Pump Inlet filter40.0 Micron made of bronze and steel
Pump Exhaust filter0.30 Micron HEPA
Pump Pressure gage1½" / 3.8cm) face, steel housing (0-15 psi) / (0-1.03 bar)
Pump Working press2-12 psi / 0.14-0.83 bar - 15 psi / 1.03 bar max
Pump Performance0-5 CFM / 0-8.5 m³/hr - for a 1/4 HP motor
Motor (HP)1/4 HP
Motor in Volts115 V / 230 V AC, single phase
Motor Current draw5.5 A for the 1/4 HP pump
Hose materialPolyvinyl chloride with reinforced braided polyester yarn
Hose length50 Feet / 15.24 m
Type of connectionOBAC quick-connect plug with wide diameter and minimal air restriction
Hose Max pressure185 psi à 70° F / 12.76 bar à 21.1°C
Hose temperature range-20°F to 150°F / -28.8°C to 65.5°C

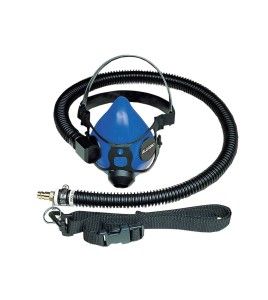

Facial partInclude a kit of haft mask & breathing hose and belt, model RA9920
Respirator / mask characteristicsEquipped with a contoured, large diameter exhalation valve that reduces breathing resistance for the worker
Respirator / mask sizesOne size fits all
Facial part MaterialSilicone
Removable protectornew
Splash protectionDoes not protect against splashes
Visor coatingNo coating
MaterialSee items separately
WashableWashable mask
Height (in/cm)15 in / 38.1 cm
Length (in/cm)21 in / 53.34 cm
Width (in/cm)16 in / 40.6 cm
Weight (lb/kg)44 lb / 19.95 Kg
Sold byUnit
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

RA9920 Haft mask explosive view

RA9920 Allegro low pressure haft mask explosive view

Download (568.43k)

RA9920 Haft mask techical sheet

RA9920 Allegro low pressure haft mask technical sheet

Download (46.3k)

RA9806 1/4 HP explosive view

RA9806 Allegro low pressure pump 1/4 HP A-300 explosive view.

Download (670.32k)

RA9806 1/4 HP technical sheet

RA9806 Allegro low pressure 1/4 HP A-300 technical sheet.

Download (83k)

RA9100 Technical sheet hoses

RA9100 Allegro low pressure hoses technical sheet.

Download (43.66k)
