Magnehelic differential pressure gauge for asbestos abatement

Magnehelic 0-0.5" H₂O pressure gauge: precise differential pressure measurement for decontamination areas.

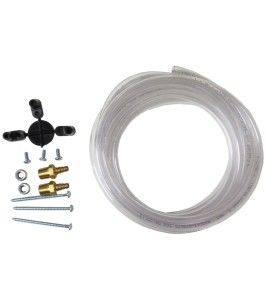

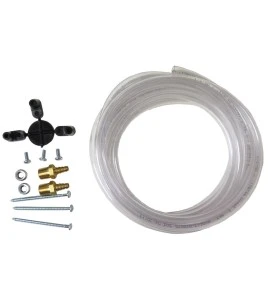

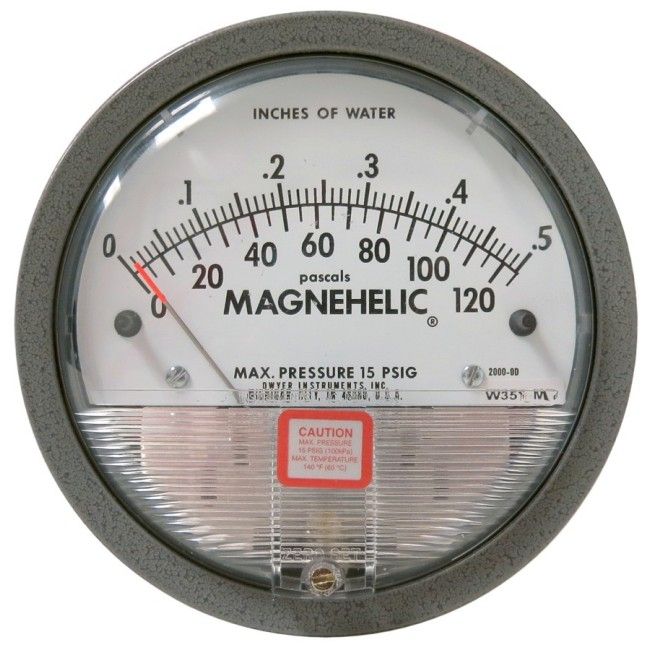

Magnehelic differential pressure gauge to swiftly indicate positive, negative or differential pressure. This tool comes with rubber tubing ³/₁₆ in diameter X 10 ft length as well as mounting and sealing accessories. The display features a dual scale from 0 to 0.5 inches of water (inWC) and 0 to 120 Pascals. The pressure gauge can be used to measure the positive, negative and differential pressure with a high accuracy within 2% of the full scale. Sold individually.

This pressure gauge is generally used on major sites of asbestos abatement and decontamination to avoid the spread of dust arising from asbestos or materials containing asbestos outside the premises. With such a tool, one can confirm that the work site is under negative pressure, thus ensuring that all dust will remain inside the contaminated premises until filtered.

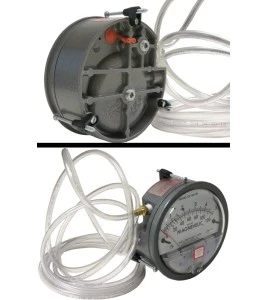

The pressure gauge should be installed outside the contaminated site near the employee entrance. Using a flexible tube, a gauge reading will be taken inside the site and compared to the reading outside the site.

Pressure gauge features:

• Designed to resist shock, vibration, and over-pressures
• Contains no liquid whatsoever, which may freeze or evaporate
• Requires no batteries or other sources of power
• Used mainly in the engineering and construction industries to measure fan and blower pressures, filter resistance, air velocity, etc.
• Can easily be either flush mounted or mounted on the wall
• Consist of a die-cast aluminum case and bezel coated with a corrosion-resistant acrylic cover
• Pressure limits: -20 inHg g to 15 psig (-0.677 bar to 1,034 bar)
• The relief plug opens when overpressure occurs at approximately 25 psig, 50,79 inHg, 1,72 bar
• Temperature limits: 20°F to 140°F (-6.67°C to 60°C)
• Designed for readings in vertical position
• Equipped with ¹/₈ in diameter FNPT plug

Give your teams a reliable, maintenance-free tool to ensure compliance and safety in sensitive environments with the Magnehelic pressure gauge.

Please note that we did get calls concerning the measurement scale in inches of water (in WC) rather than kPa (kilopascal). We have collected a few answers on that particular issue:
- Inches of water (inWC) units of measurement are actually more precise than the kPa unit of pressure.
- No variation would be visible with a device graduated in kPa.

Operating principle during abatement and decontamination

• Install black pieces with the help of the 3 screws provided in the kit, which will subsequently allow a secure fit on the plank.

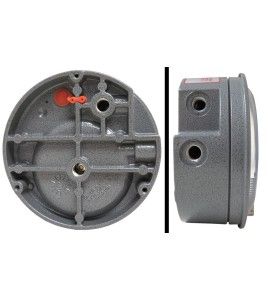

• Seal all remaining apertures at the back of the gauge. We recommend a tight seal with Teflon tape.
• Install the pressure gauge on a plank and center it.
• Set the gauge to zero
• Connect the rubber tubing to the - port.
• Plug the port so that the gauge takes the pressure inside the contaminated site from outside.
• Start the negative pressure vacuum and see how the needle in the gauge behaves.

FAQ - Magnehelic pressure gauge for differential pressure measurement

What is the use of a Magnehelic pressure gauge in an asbestos decontamination environment?

The Magnehelic manometer enables precise measurement of differential pressure to verify negative pressure in confined areas, ensuring safe and compliant decontamination.

2. How accurate is the Magnehelic 0-0.5" H₂O (0-120 Pa) manometer?

This model offers reliable and accurate fluid-free readings, with sensitivity tailored to the requirements of sensitive environments such as clean rooms, laboratories or asbestos removal sites.

3. Does the Magnehelic pressure gauge require a power supply to operate?

No, this manometer operates without a power supply, making it a robust, self-contained and easy-to-install tool for real-time pressure monitoring.
