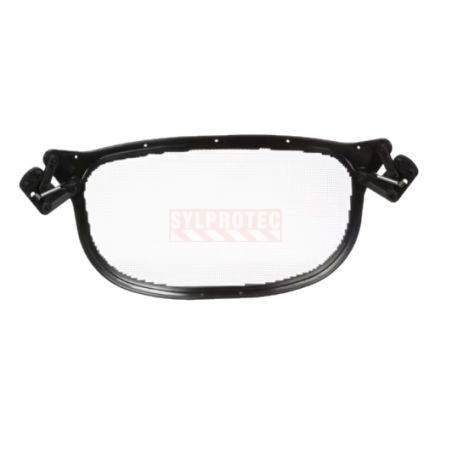

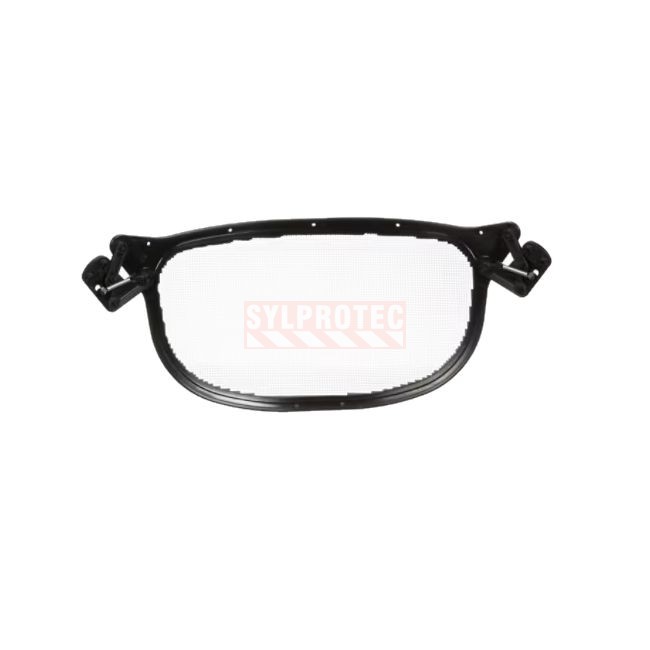

3M metal mesh faceshield V1A-10P black

Metal mesh faceshield for work exposed to debris and particles

The 3M™ V1A-10P black metal mesh faceshield is designed for applications where the user needs facial protection against flying debris and various particles while maintaining better airflow. Its mesh design helps provide more ventilation than a solid shield while still offering useful physical protection in suitable work environments.

Manufacturer code 3M: 7000103808, model V1A-10

Designed for selected forestry applications and outdoor work

This model is especially relevant in environments where chips, fragments or residues may be projected toward the face. The metal mesh helps maintain good overall visibility while allowing better airflow, which may improve comfort during extended tasks, especially outdoors or in work involving sustained physical effort.

A practical choice when better breathability is needed

The main benefit of a mesh faceshield such as the 3M™ V1A-10P is to provide ventilated facial protection. This type of equipment can be suitable when the user wants to reduce the closed-in feeling in front of the face while keeping a physical barrier against debris or particles compatible with this type of product.

Technical Specifications

• Material: Steel with a matte black coating.

• Mesh Size: 1.8 mm x 2.5 mm (optimized to block debris while maintaining 65% light transmission).

• Compatibility: 3M™ Peltor™ systems and P3E-style attachments.

• Light Reduction: Approximately 35%.

Installation Guide: Fast & Secure

Setting up your 3M V1A-10P is quick and intuitive. This shield is designed to integrate perfectly with 3M™ Peltor™ earmuffs or V-Series visor holders (such as the P3E helmet attachment).

Follow these simple steps:

1. Preparation: Locate the mounting lugs on the arms of your Peltor earmuffs or your helmet adapter.

2. Alignment: Position the lateral slots of the mesh shield in front of the support's anchor points.

3. Attachment: Apply firm pressure until the shield snaps into place. A distinct "click" confirms that the visor is securely locked.

4. Testing: Check the pivot function. The shield should flip up smoothly to a "rest" position above the helmet and stay securely in the "work" position in front of your face.

OHS Expert Safety Advice

"A mesh screen is excellent for stopping chips and branches, but it is not a solid barrier. It does not protect against fine dust or liquid splashes. For full compliance with safety standards (ANSI Z87.1 / CSA Z94.3), always wear certified safety glasses underneath your mesh shield."

FAQ about the 3M V1A-10P metal mesh faceshield

What is a metal mesh faceshield used for?

A metal mesh faceshield is mainly used to provide a physical barrier against certain flying debris and particles while allowing better airflow than a solid faceshield.

In what situations can this model be used?

This model may be used in selected forestry applications, outdoor work, or other compatible tasks where ventilated facial protection is needed.

What is the main advantage of the metal mesh?

The metal mesh promotes airflow and may improve comfort during tasks where the equipment is worn for extended periods.

Does this product replace all other facial protection?

No. The choice of a faceshield must always be based on the real risk, the nature of the projections and the exact requirements of the job.
