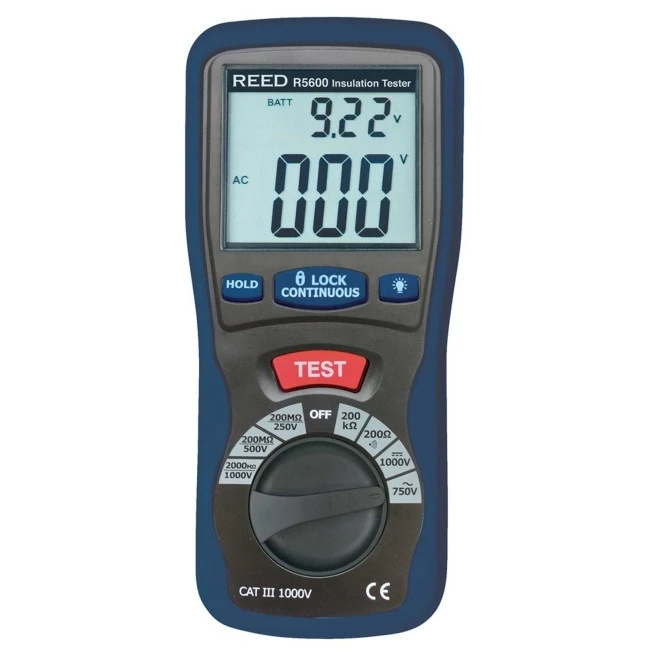

R5600
Insulation Tester.
Insulation Tester.
Features:
- Backlit dual displays insulation resistance and test voltage simultaneously
- 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
- Lock function and hanging strap for handfree operation
- Lo Ω function for testing connections
- Datahold function
- Double molded plastic housing for added protection
- Low battery indicator and auto shut off
- Cat. III, 1000V safety rating
Specifications:
Insulation Resistance Test Voltages: 250V, 500V, 1000V.
Insulation Resistance Range: 200MΩ, 2000MΩ.
Resistance Test Range: 200Ω, 2000Ω.
Voltage Range: 750VAC; 1000VDC.
| Type of product | Safety equipment |
| Main category | Industrial accessoiries |
| Sub category | Precision instruments by reed |
| Sub sub category | Electrical |
| Name of the product | Insulation Tester. |
| Product code | R5600 |
| Approved/Certified | Meets Cat. III, 1000V |
| Manufacturer | Reed Instruments |
| Measurement functions | Is capable of measuring 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ. Lo Ω function for testing connections. |
| Includes | Insulation Tester, test leads, alligator clip, hanging strap, hard carrying case and batteries |
| Power supply requirements | 6 AAA Batteries |
| Length (in/cm) | 12 in / 30.48 cm |
| Width (in/cm) | 9 in / 22.8 cm |
| Height (in/cm) | 3 in / 7.6 cm |
| Weight (lb/kg) | 3.1 lb / 1.4 Kg |
| Return conditions | No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page |
