> Industrial Accessories> Precision instruments by REED> electrical >Insulation Tester, measurements from 500V to 5000V and up to 60GΩ.

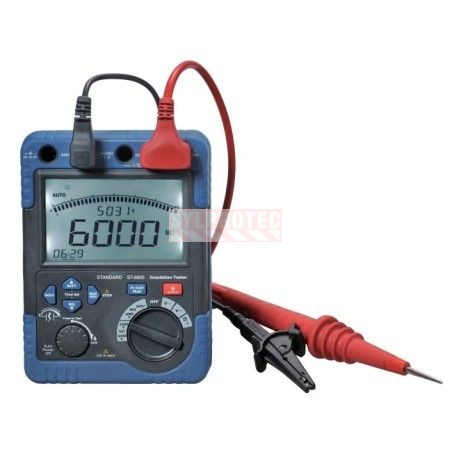

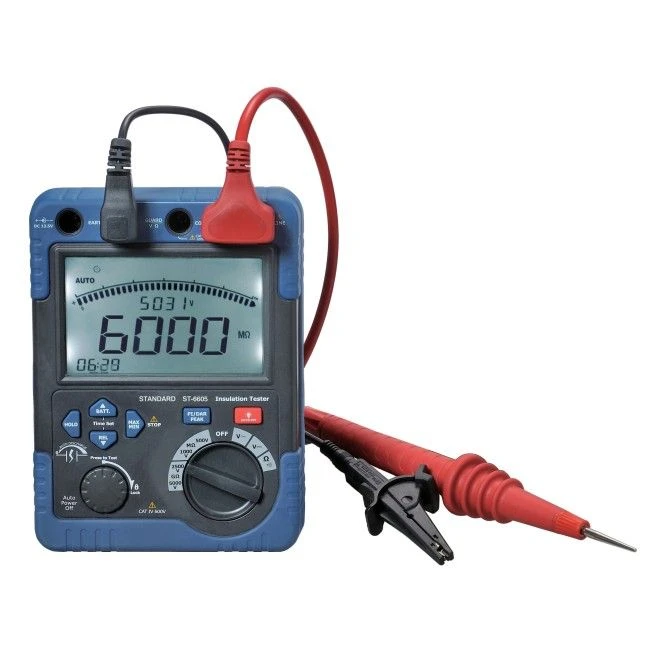

Vérificateur de l’isolement View larger

R5002

Insulation Tester, measurements from 500V to 5000V and up to 60GΩ.

$1,002.45

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Add to Compare

Insulation Tester.

Features:

  • Measurements from 500V to 5000V and up to 60GΩ.
  • Sources up to 1.2mA current during tests to offset capacitance load.
  • Dielectric absorption ratio measurements (DAR).
  • Polarization index measurement (PI).
  • Time set measurement function.
  • Auto-discharge function and voltage output warning function.
  • Live circuit warning symbols plus audible warning.
  • Live circuit detection prevents insulation test if >30V is detected.
  • Max/Min, Peak, Relative value and Data Hold functions.
  • 6000-count digital display with bargraph and backlight.
  • Meets IEC61010-1 Cat. IV 600V safety standards.
  • Includes test leads, batteries and carrying case.

Specifications:

Insulation Resistance Test Voltages:
500V, 1000V, 2500V, 5000 VDC.
Insulation Resistance Range: 0 to 60.0GΩ.
Resistance Test Range: 0.1 to 6000Ω.
Voltage Range: 0.5 to 600.0V AC/DC.

Type of productSafety equipment
Main categoryIndustrial accessoiries
Sub categoryPrecision instruments by reed
Sub sub categoryElectrical
Product codeR5002
Approved/CertifiedMeets CE and Cat. IV 600V
ManufacturerReed Instruments
Measurement functionsTest Voltages of 500V, 1000V, 2500V, and 5000V, measure insulation Resistance to 60GΩ, AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions, Polarization index measurement (PI), Dielectric absorption ratio measurements (DAR).
IncludesTest leads, alligator clips, AC adapter, batteries and hard carrying case
Power supply requirements8 C Batteries or AC Adapter (included)
Length (in/cm)13.75 in / 34.9 cm
Width (in/cm)9.5 in / 24.1 cm
Height (in/cm)4.5 in / 11.4 cm
Weight (lb/kg)7.6 lb / 3.5 Kg
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

R5002_FR

Download (373.17k)

R5002_EN

Download (380.65k)

R5002_Manuel

Download (2.63M)

R5002_Manual

Download (2.44M)
