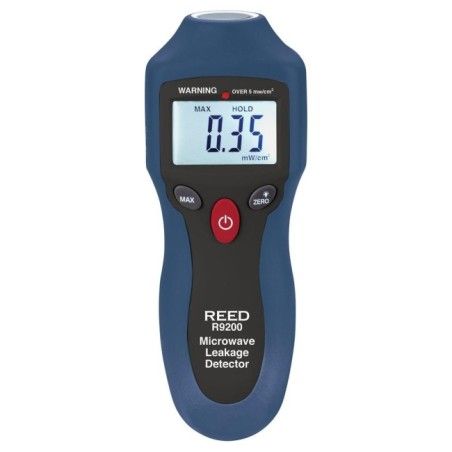

REED R9200 Microwave Leakage Detector

Ensure the safety of your environment with the REED R9200 Microwave Leakage Detector. A high-precision instrument designed to detect electromagnetic leaks, even at low levels.

The REED R9200 is an essential tool for verifying the seal integrity of industrial and domestic microwave ovens. Prolonged exposure to microwave leakage can pose health risks; this device allows you to accurately measure the intensity of electromagnetic radiation. User-friendly and highly reliable, it features both audible and visual alarms that trigger as soon as the safety threshold is exceeded.

This instrument is ideal for building inspectors, maintenance technicians, and Occupational Health and Safety (OHS) managers.

Key Advantages of the REED R9200:

• High Sensitivity: Capable of detecting low-level leaks for maximum user protection.

• Instant Alerts: Features an audible alarm and a bright red warning light when the 5 mW/cm² threshold is surpassed.

• Easy-to-Read Display: Large backlit LCD screen provides clear measurement readings in any lighting condition.

• Advanced Functions: Includes Max-hold (to capture peak readings) and Data-hold functions.

• Ready to Use: Comes complete with a 9V battery and a soft carrying case.

Technical Specifications:

• Frequency Range: Calibrated for 2.45 GHz (standard microwave frequency).

• Measurement Range: 0 to 9.99 mW/cm².

• Alarm Value: Pre-set at 5.0 mW/cm².

• Accuracy: ±1 dB.

• Power Supply: 9V battery (included).

Sylprotec Expert Advice

"When performing your safety tests, be sure to move the detector slowly around the door seals of the oven. Leakage is most common near the hinges or the latch mechanism. Regular testing is highly recommended for equipment used intensively in commercial kitchens or breakrooms."

Frequently Asked Questions (FAQ)

Q: At what level does a microwave leak become dangerous?

A: According to international safety standards, the REED R9200 alarm is set at 5 mW/cm², which is the recognized safety limit for microwave oven emissions.

Q: Does this device detect other waves like Wi-Fi or 5G?

A: The R9200 is specifically calibrated for the 2.45 GHz frequency used by microwave ovens. While other signals may exist nearby, this ensures the measurement is focused and accurate for oven safety.

Q: Does the detector require annual calibration?

A: For professional safety audits or regulatory compliance, an annual calibration check is recommended to maintain sensor accuracy.
