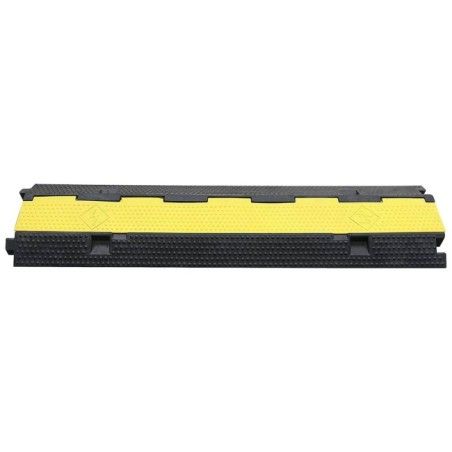

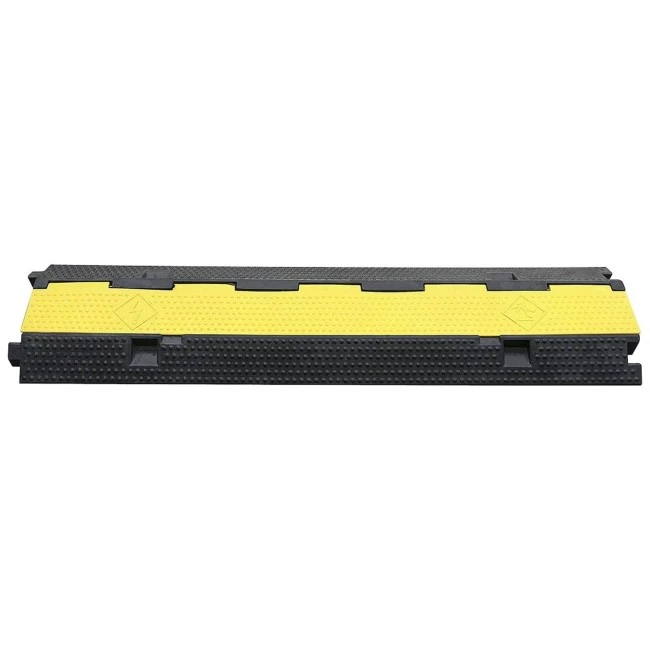

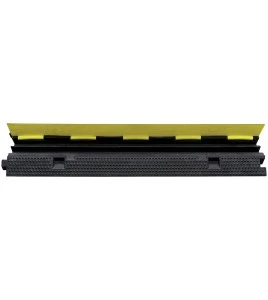

Pioneer 2-channel cable protector with high-visibility cover, sold individually
PC282
$44.80
Pioneer PC282 2-channel cable protector with rubber base, yellow high-visibility cover and indicated maximum capacity of 30 tonnes at 8 km/h.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Pioneer PC282 2-channel high-visibility cable protector
The Pioneer PC282 cable protector helps route cables, cords or hoses through a traffic area without leaving them directly exposed to passage. Its commercial-grade rubber base and yellow high-visibility cover help organize a jobsite, event or temporary access point. Pioneer manufacturer code: V6220290-O/S, model 282.
This model includes 2 channels, each 1.3 in / 3.3 cm wide, and can accommodate cables up to 1.3 in / 3.3 cm in diameter. API data indicates a 39.4 in x 10.6 in x 2.8 in format, a structured weight of 12.64 lb and an indicated maximum capacity of 30 tonnes at a speed limit of 8 km/h.
Features of the PC282 2-channel cable protector
The PC282 is designed to protect cables from damage caused by passage, vibration, accidental contact and trip hazards.
- Product code: PC282.
- Type: 2-channel cable protector.
- Manufacturer: Pioneer.
- Manufacturer code: V6220290-O/S, model 282.
- Material: rubber base with yellow high-visibility cover.
- Channel width: 1.3 in / 3.3 cm.
- Indicated maximum cable diameter: up to 1.3 in / 3.3 cm.
- API dimensions: 39.4 in x 10.6 in x 2.8 in.
- API weight: 12.64 lb.
- Indicated maximum capacity: 30 tonnes at 8 km/h.
Applications for jobsites, events and passage areas
This cable protector suits festivals, conference centers, workshops, jobsites, temporary access points and areas where cables must cross pedestrian or light vehicle traffic. It helps reduce cable exposure and makes their presence more visible with the yellow cover.
Installation, inspection and limits of the cable protector
Choose a stable location, confirm that cable diameter fits the channels, open the cover, place cables without forcing them, then close the cover before traffic passes. Inspect the protector before use and remove it from service if it is cracked, deformed or damaged. Respect the indicated capacity and speed, and do not use it as a general ramp or electrical protection device.
FAQ about the Pioneer PC282 cable protector
How many channels does the PC282 have?
The PC282 has 2 channels.
What channel width is indicated?
Each channel is 1.3 in / 3.3 cm wide.
What maximum capacity is indicated?
The indicated maximum capacity is 30 tonnes, with a speed limit of 8 km/h.
What material is used?
The product page indicates a rubber base with a yellow high-visibility cover.
What is the yellow cover for?
It allows cable installation and removal while improving protector visibility in the passage area.
Suggestions to complete cable and perimeter protection
For other passage needs, the three channel protector (PC286) offers 3 channels, the five channel model (PC287) adds a wider cable path, the reflectors (EPTR) improve stopped-area visibility, and the cone (EPTCONE) marks a point to avoid.
To reinforce the marking setup, the drum (EPTBA) channels an area, the strobe light (LL2304) increases lighted visibility, the line with flags (EFLAC) frames a perimeter, and the chock (EPC32) complements a vehicle area.
PC282
Data sheet
- Product group
- Safety equipment
- Main category
- Sign and lock
- Sub category
- Traffic and transport
- Sub sub category
- Traffic safety accessories
- Name of the product
- Cable protector
- Series of products
- Pioneer®
- Product code
- PC282
- Sort by keywords
- Cable protectors
- Approved/Certified
- None
- Manufacturer
- Pioneer®
- Country of origin
- China
- Features
- 2-channel cable protector, 1.3 in / 3.3 cm wide, accommodates cables up to 1.3 in / 3.3 cm in diameter. The protector is built with a commercial-grade rubber base and can support up to 30 tons
- Additional Features
- It is designed to protect cables from pedestrians and light vehicles. They also improve accessibility by allowing cables to cross traffic areas without obstructing pedestrian or vehicular traffic
- Comfort features
- The yellow plastic cover is easily accessible for cable installation and removal - it's also durable and high-visibility, for easy cable access
- Includes
- 2 channels, 1.3 in / 3.3 cm wide
- Property of the material
- The protector is built with a commercial-grade rubber base and can support up to 30 tonnes of weight, with a speed limit of 8 km/h
- Load capacity
- Maximum capacity of 30 tonnes / 30 000 Kg
- Material
- Rubber
- Washable
- Washable
- Length (in/cm)
- 39.4 in / 99.06 cm
- Width (in/cm)
- 10.6 in / 26.92 cm
- Height (in/cm)
- 2.8 in / 7.11 cm
- Weight (lb/kg)
- 15.50 lb / 7.03 kg
- Sold by
- Unit
- Color
- Black/Yellow
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- CAUTION: Supports a weight of 30 tonnes / 30,000 Kg with a speed limit of 8 km/h
