RA9700-65

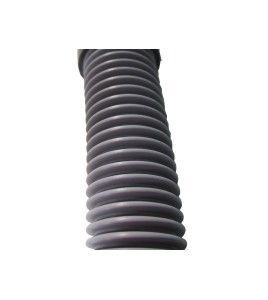

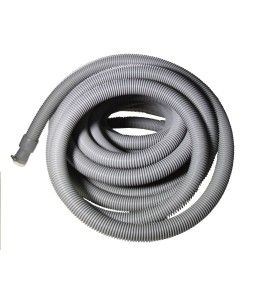

Kit of 50 ft inlet hose for air ambient low pressure Allegro pump RA9806, RA9821 and RA9832.

$160.00

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

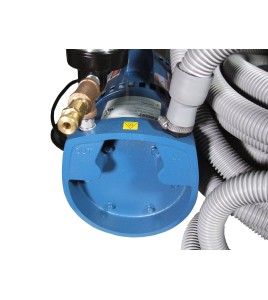

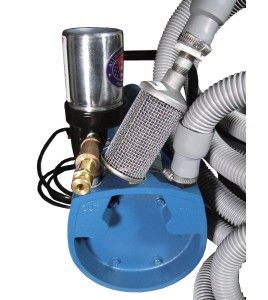

This set of hoses and adapter allows you to extend the intake air intake beyond the pump. This set includes a 50 'long hose (15.24 m) and adapters. The maximum number of lengths you can install is five (250 feet - 76.2 m). This extension of the inlet pump is compatible with the Allegro low pressure ambient air pump: RA9806 (A300), RA9821 (A750) and RA9832 (A-1500).

Installation mode:

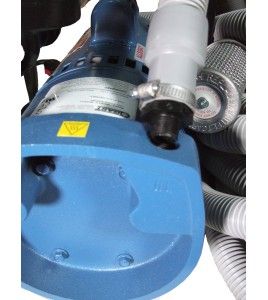

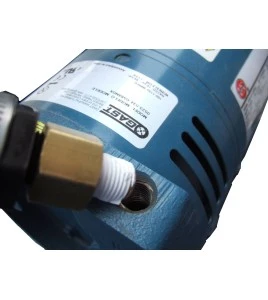

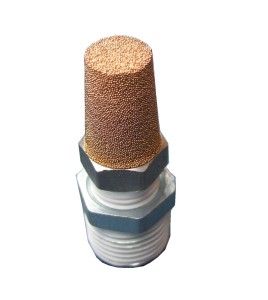

1- Remove the inlet filter on the pump [mark with the word ‘in’ on the end of the pump.

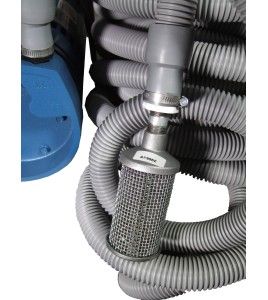

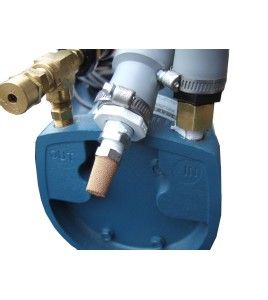

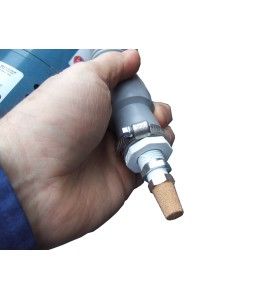

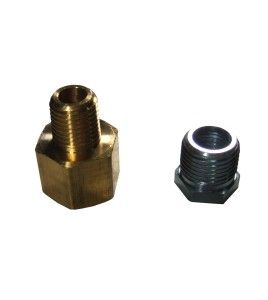

2- Locate the end of the hose to attach the inlet filter; depending on the pump model, you may need an adapter.

3- Reinstalled the other end of the hose on the pump (where you removed the inlet filter at the beginning), depending on the pump model you may need an adapter.

Suggestion:
Replace inlet and outlet filters after 200 hours of use. Replace carbon vanes around 400 to 500 hours of use.

Please note that these items are available on special order only, the lead time may vary from 2 to 3 weeks.

Type of productSafety equipment
Main categoryPersonal protection
Sub categoryRespiratory protection
Sub sub categoryAllegro low pressure air-supplied respirators
Name of the productKit with hose and adapters
Product codeRA9700-65
Approved/CertifiedMeets NIOSH
ManufacturerAllegro industries
Country of originUnited State of America
FeaturesExtends the air intake beyond the pump
Additional FeaturesThe maximum number of lengths you can install is five (250 ft - 76.2 m)

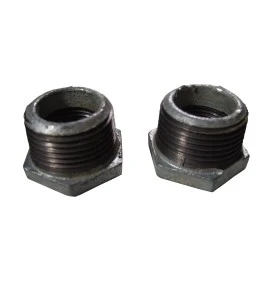

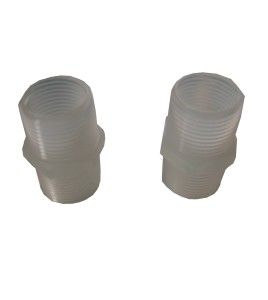

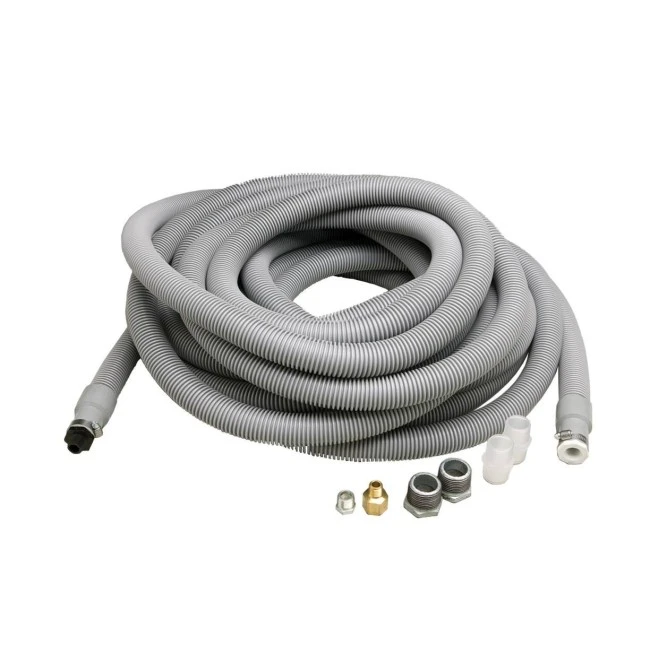

Includes1 hose (50 ft / 15.24 m) and adapters
Air supply systemLow pressure

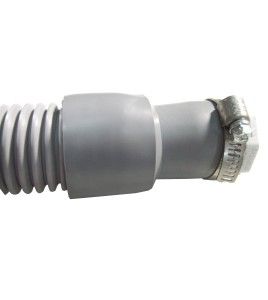

Hose materialPVC chlorinated poly vinyl
Hose length50 Feet / 15.24 m
Type of connection3/8 in thread NPTM and 3/8 in thread NPTF
Hose Inner diameter1 in / 2.54 cm
Hose Outer diameter1.30 in / 3.30 cm
Hose Max pressure29 in/hg Vac or 15 psi
Hose temperature range-10°F to 160°F / -23.33°C to 71.11°C
Height (in/cm)13 in / 33 cm
Length (in/cm)16 in / 40.6 cm
Width (in/cm)16 in / 40.6 cm
Weight (lb/kg)9 lbs / 4.08 Kg
AvailabilityPlease note: Available only on special order
Sold byUnit
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

RA9821 3/4 HP technical sheet

RA9821 Allegro low pression pump 3/4 HP A-750 technical sheet.

Download (68.45k)

RA9832 1 1/2 HP pump tech. sheet

RA9832 Allegro low pressure pump 1 1/2 HP A-1500 technical sheet.

Download (47.79k)

RA9806 1/4 HP technical sheet

RA9806 Allegro low pressure 1/4 HP A-300 technical sheet.

Download (83k)
