Pioneer® orange-black 7-in-1 parka, each, 5020BB
V50202C-L
$182.45

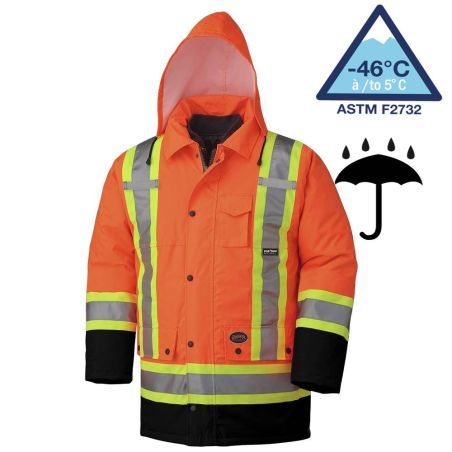

Pioneer® 5020BB orange-black high-visibility winter parka for men, for outdoor work near traffic in cold weather. Its outer fabric of 300-denier oxford polyester with polyurethane coating is 100% waterproof and windproof, with taped and heat-sealed seams. It combines an outer jacket with a detachable hood and an inner jacket with detachable sleeves that reverses to black. Complies with CSA Z96-22 Class 2 Level 2 and ANSI/ISEA 107-2020 Class 3 Types P and R. Sizes 2XS to 5XL, sold individually.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Pioneer® 5020BB 7-in-1 orange-black high-visibility winter parka for men, 100% waterproof
This winter parka keeps people working near traffic dry and warm. It combines two jackets: a waterproof outer jacket and a quilted inner jacket with detachable sleeves that reverses to black. Wear them together or separately, depending on the weather and the job. Sold individually; also available in a box of 5 units.
Offered in 10 sizes, from 2XS to 5XL; choose yours in the size table below. To complete the outfit, Pioneer® also offers the orange-black winter overalls (V50402C).
Design of the polyurethane-coated oxford polyester parka
The outer fabric is a 300-denier oxford polyester with polyurethane coating. With its taped and heat-sealed seams, it makes the parka 100% waterproof and windproof. The 5.3 oz/yd² (180 g/m²) polyester fleece lining is quilted and holds in warmth. Distributors list a use range of -46°C to -5°C (-50°F to 23°F). A front zipper with snap storm placket closes the outer jacket, and its 7 in (18 cm) side zippers give greater mobility.
The 7-in-1 system: outer jacket and inner jacket
The versatility of the 7-in-1 comes from its two jackets and their detachable parts.
- Outer jacket: quilted lining, detachable snap hood, storm cuffs, 2 large front cargo pockets, 2 inner pockets and an embroidery access zipper.
- Inner jacket: quilted lining, comfort collar, detachable sleeves, drawstring waist with toggles, 2 large front cargo pockets and 2 inner pockets; it reverses to black.
Class 2 and Class 3 high visibility
The outer and inner jackets comply with CSA Z96-22 Class 2 Level 2, as long as the sleeves are not removed. Worn with high-visibility pants featuring reflective leg bands, they reach Class 3 under CSA. Under ANSI/ISEA 107-2020, they are Class 3, Types P and R. The StarTech® reflective tape is double-stitched. The 10 cm wide contrasting ribbon complies with British Columbia WorkSafeBC/Dot requirements.
About the fluorescent orange high-visibility classification
Fluorescent orange is very visible during the day and in conditions of strong artificial light. In most situations, it also provides high contrast with the background. It is, however, less visible at night and in low light, for example at dawn or dusk.
Silver retroreflective stripes are very visible in low natural or artificial light, because they send light back toward its source (flashlight, car headlights, etc.). They therefore offer maximum safety at dawn, at dusk and at night, but do not increase visibility in full daylight.
Applications of the high-visibility winter parka
For outdoor work near traffic in cold or wet weather: road and utility crews, site supervisors, yards and loading docks. The inner jacket worn alone suits milder weather, and the detachable sleeves come off when the work warms you up; keep the sleeves on, however, where the CSA class is required.
Parka use restrictions
This parka is not flame resistant: for a flame or electric arc hazard, choose a garment certified for that hazard. Worn reversed, the black side does not provide the high visibility of the orange side.
Parka care and service life
Before washing, empty all pockets and close the zippers, snaps and hook-and-loop fasteners. Machine wash with mild soap, shake the parka after washing, then hang it to dry out of the sun; do not put it in the dryer. Do not use chlorine or hydrogen peroxide bleach, or fabric softener, which renders garments flammable. Replace the parka when the polyurethane coating cracks or the reflective tape peels off.
Available sizes: 2XS to 5XL
| Selection | Sylprotec code | Pioneer® manufacturer code | Model |
|---|---|---|---|
| 2 Extra Small (2XS) | V50202C-2XS | V1120151-XXS | 5020BB |
| Extra Small (XS) | V50202C-XS | V1120151-XS | 5020BB |
| Small (S) | V50202C-S | V1120151-S | 5020BB |
| Medium (M) | V50202C-M | V1120151-M | 5020BB |
| Large (L) | V50202C-L | V1120151-L | 5020BB |
| Extra Large (XL) | V50202C-XL | V1120151-XL | 5020BB |
| 2 Extra Large (2XL) | V50202C-2XL | V1120151-2XL | 5020BB |
| 3 Extra Large (3XL) | V50202C-3XL | V1120151-3XL | 5020BB |
| 4 Extra Large (4XL) | V50202C-4XL | V1120151-4XL | 5020BB |
| 5 Extra Large (5XL) | V50202C-5XL | V1120151-5XL | 5020BB |
FAQ: the Pioneer® 5020BB winter parka
Why is it called "7-in-1"?
That is Pioneer®'s name for this system: an outer jacket and an inner jacket worn together or separately, with a detachable hood, detachable inner sleeves and an inner jacket that reverses to black.
What standards does it meet?
CSA Z96-22 Class 2 Level 2, as long as the sleeves are not removed, and Class 3 with high-visibility pants featuring reflective leg bands. Under ANSI/ISEA 107-2020: Class 3, Types P and R.
Is it really waterproof?
Yes. Pioneer® lists it as 100% waterproof and windproof, thanks to its polyurethane-coated fabric and taped, heat-sealed seams.
What temperature can it be worn in?
Distributors list a use range of -46°C to -5°C (-50°F to 23°F).
Does it protect against flames?
No. This parka is not flame resistant.
What sizes are offered?
From 2XS to 5XL, sold individually or in a box of 5 units. The codes are in the size table.
Are there other colours?
Yes: the yellow-black 7-in-1 winter parka (V50212C) and the black 7-in-1 winter parka (V5025).
Suggestions for working near traffic in winter
For the person wearing this parka, plan for the Honeywell Everest type 2 class E safety helmet (TA119R), the yellow high-visibility 100% acrylic winter toque (V317), the Classic 312-1201 earplugs (OA101), 29 dB, the Endura cowhide leather winter glove (G911) and the Ranpro Airlok waterproof boots (VC105FUL).
To mark off the work zone, add the yellow CAUTION barricade tape (ECT3YF1), the red DANGER barricade tape (ECT3RE9), the high-visibility retroreflective road sign (EPAL191), the orange PVC traffic cone (EPTCONE36) and the LED safety light baton (EFLAS3).
Ergodyne hand-warmer muff (VNF6980) ; hand warmer sachets (VCHM20) ; toe warmer sachets (VCHO20).
V50202C-L
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Safety clothing
- Sub sub category
- Traffic safety clothing
- Name of the product
- High visibility winter jacket
- Series of products
- Pioneer®
- Product code
- V50202C
- Sort by keywords
- Winter traffic coats
- Product use
- Outdoor work near traffic in cold weather
- Approved/Certified for orange and yellow
- CSA Z96-22 Class 2 Level 2; ANSI/ISEA 107-2020 Class 3 Types P and R
- Manufacturer
- Pioneer®
- Country of origin
- Myanmar
- Type of seam
- Taped and heat-sealed seams
- Fineness of the knitting
- 300 denier polyester knit in oxford gauge with polyurethane coating
- Flame Resistance
- No Flame resistant
- Choice of format
- Double size extra-small (2XS) to 5 extra-large (5XL) available
- Recommended use temperature
- It is designed for use in temperatures ranging from -50°F (-46°C) to 23°F (-5°C)
- Gender
- Male
- Features
- With alternating silver retroreflective and fluorescent yellow stripes. 2 vertical stripes on the front, 2 crossed X stripes on the back and 1 horizontal stripe on the waist
- Additional Features
- Inner jacket reverses to black and has detachable sleeves
- Characteristic adding safety
- StarTech® double-stitched reflective tape
- Comfort features
- Inner jacket comfort collar
- Hood features
- Detachable snap hood
- Features on zips, buttons and hook-and-loop fasteners
- Full-length nylon front zipper with flap and snap fasteners, plus 7” (18 cm) side zippers for added mobility
- Features concerning sleeves
- The outer jacket has windproof cuffs on the sleeves, while the inner jacket has detachable sleeves
- Features relating to opening and attachments
- The outer and inner jackets include 2 large front pockets and 2 inside pockets for your personal belongings
- Precision on the color of the material and their visibilities
- Fluorescent orange is very visible during the day and in conditions with a lot of artificial light. In most situations, it also provides high contrast with the background
- Includes
- 5.3 oz/vg2 (180g/m2) polyester fleece lining
- Includes 2
- 10 cm wide contrasting ribbon, complies with British Columbia WorkSafeBC/Dot requirements
- Property of the material
- waterproof
- Material1
- Polyester
- Material2
- Polyurethane
- Material3
- StarTech® reflective strips
- Washable
- Machine wash with mild soap and hang to dry out of the sun. DO NOT PUT IN THE DRYER
- Washable2
- Do not use bleaches containing chlorine (sodium hypochlorite) or hydrogen peroxide in the wash cycle. Do not use fabric softeners, as they render garments flammable
- Before/after washing tips
- Before washing, be sure to empty all garment pockets and close all zippers, snaps and hook-and-loop fasteners. After washing, shake the garment to remove wrinkles and hang to dry in a cool, well-ventilated place
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer
- Length (in/cm)
- 24.8 in / 62.99 cm
- Width (in/cm)
- 17.4 in / 44.2 cm
- Height (in/cm)
- 3.78 in / 9.6 cm
- Weight (lb/kg)
- 5.9 lb / 2.68 kg
- ****Variable weight and size****
- Dimensions and weight vary with the selected size; values shown are for size Large (L)
- Sold by
- Unit
- Color
- Orange/Black/Yellow/Gray
- Another packaging available
- 5 units per box
- Return conditions
- Not returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
