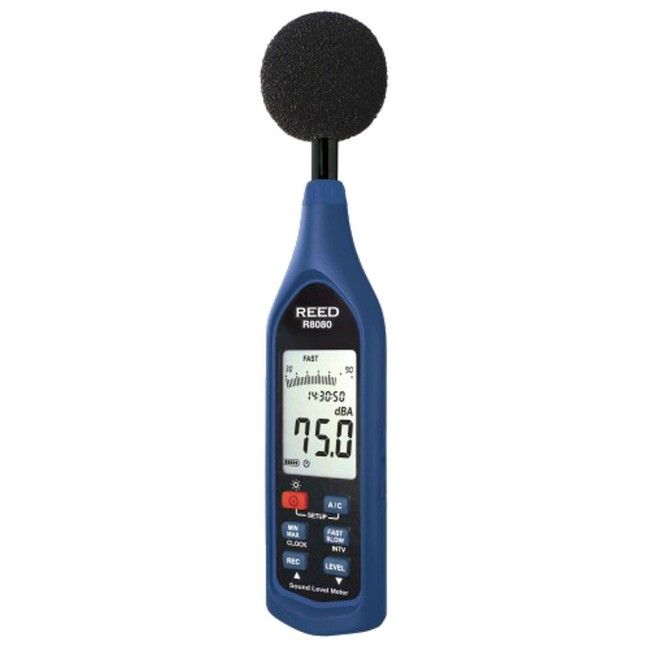

Sound Level Meters and Data Loggers three ranges from 30 to 130 dB, type 2

Sound level meter and data logger.

Manufacturer number REED: R8080

Investing in a professional sound level meter means choosing prevention and safety. This model is manufactured by Reed Instruments, reference R8080, and meets type 2 standards. Thanks to its three measurement ranges from 30 to 130 dB, it allows detection of dangerous noise levels and ensures reliable monitoring. Its clear LCD display, its recording capacity of 64,000 data points and its A and C frequency weightings guarantee complete analysis. This sound level meter is an indispensable ally for companies concerned with protecting their employees and remaining compliant with regulations.

Choosing this sound level meter means investing in peace of mind and performance.

Characteristics of the data logger sound level meter:

• High accuracy of ±1.4 dB meeting type 2 standards
• Triple range measurement (dynamic range 60 dB) • Frequency weighting A and C
• Fast and slow time weighting
• Records up to 64,000 data points and ensures tracking with an internal date and time displayed. • User-selectable sampling rate from 1 to 60 seconds.
• Easy-to-read LCD display
• Analog numeric bar graph
• Min/max hold and automatic shutoff
• Tripod mounting for long-term monitoring
• Low battery indicator
• Specifications of the data logger sound level meter
• Measurement range: 30 to 130 dB, low: 30 to 90 dB
• Moderate: 50 to 110 dB, high: 70 to 130 dB, full: 30 to 130 dB.
• Frequency range: 20 Hz to 8 kHz

Accessories also available to complete your purchase:

(R1500): Tripod

Technical features of the type 2 sound level meter three ranges

This sound level meter stands out with an accuracy of ±1.4 dB, a sampling rate adjustable from 1 to 60 seconds and an internal time-stamped memory. It offers a numeric bar graph, min/max hold and automatic shutoff. Its robust design allows tripod mounting for extended monitoring. With a frequency range from 20 Hz to 8 kHz, it adapts to varied and demanding environments.

Installation of the type 2 sound level meter to measure noise

Installation of the sound level meter is simple and quick. Just calibrate it before use, place it on a tripod or hold it at an appropriate distance from the noise source. Its intuitive interface and LCD display make data reading easy, even in working conditions.

Maintenance of the type 2 sound level meter to extend its efficiency

To ensure the longevity of your sound level meter, store it in a dry place, away from humidity and extreme temperatures. Keep it in its protective case when not in use. Regular cleaning of the sensors and periodic calibration ensure optimal operation and extend its lifespan.

Usage tips for the type 2 sound level meter three ranges

This sound level meter is ideal for industrial environments, construction sites or public spaces subject to noise regulations. Use the ranges adapted to the situation to obtain reliable measurements. Regularly analyze the results in order to implement corrective actions and improve sound conditions.

FAQ about the type 2 sound level meter three ranges

Is the type 2 Reed R8080 sound level meter compliant with safety standards?

Yes, it meets type 2 accuracy standards and guarantees reliable measurements from 30 to 130 dB.

Can the sound level meter be used for long-term monitoring?

 Yes, thanks to its tripod mounting and its recording capacity of 64,000 data points, it is perfect for extended monitoring.

What accessories are included with the type 2 sound level meter?

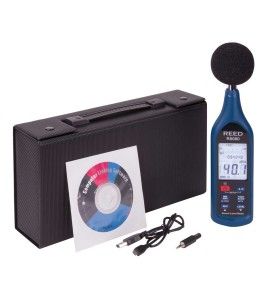

The sound level meter comes with a microphone, windscreen, a USB cable, Windows software, batteries and a carrying case. The tripod is available separately.
