Sound Level Meter and Data Logger three ranges R8085

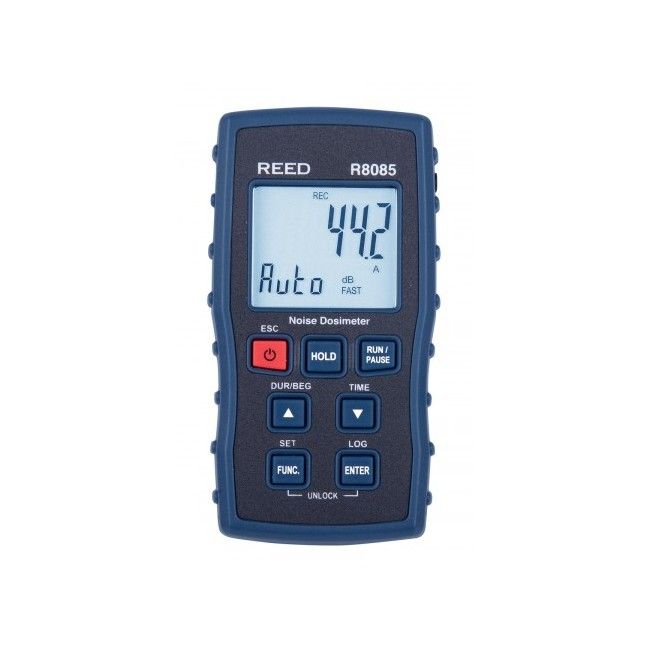

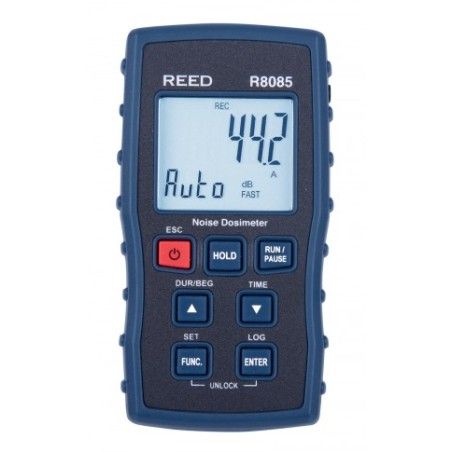

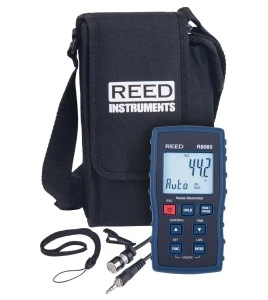

REED R8085 Noise Dosimeter, Sound Level Meter, and Datalogger

Accurately assess workplace noise exposure with the REED R8085. A versatile 3-in-1 instrument combining a noise dosimeter, sound level meter, and data logger for comprehensive hearing conservation management.

The REED R8085 is the ultimate tool for Occupational Health and Safety (OHS) professionals. It allows for precise measurement of noise exposure over time to ensure compliance with industrial and environmental regulations. This multifunctional device operates as a personal noise dosimeter, a Class 2 sound level meter, and a data logger capable of storing up to 16,000 measurement points. Its built-in USB interface makes transferring data to a PC for in-depth analysis simple and efficient.

Key Advantages of the REED R8085:

• 3-in-1 Solution: Seamlessly combines noise dosimeter, sound level meter, and datalogger functions.

• Dose Analysis: Measures noise dose, Time Weighted Average (TWA), and Peak levels.

• High Precision: Meets ANSI S1.25 and IEC 61252 standards for noise dosimeters.

• Data Management: Records up to 16,000 readings with time stamps and includes specialized analysis software.

• User Comfort: Compact and lightweight design, easily clips to a belt or shoulder for long-term monitoring.

Technical Specifications:

• Measuring Range: 30 to 130 dB.

• Standards: ANSI S1.4 Type 2, IEC 61672 Class 2.

• Memory: Internal logging with USB interface.

• Adjustable Parameters: Customizable exchange rate, thresholds, and criterion levels.

Sylprotec Expert Advice

"To obtain valid results during a noise survey, place the microphone on the worker's shoulder, approximately 10-15 cm from the ear. Always calibrate the device with an acoustic calibrator before and after each measurement period to ensure the integrity of your data for regulatory bodies like OSHA or CNESST."

Frequently Asked Questions (FAQ)

Q: What is the difference between sound level meter mode and dosimeter mode?

A: Sound level meter mode measures instantaneous noise at a specific moment, while dosimeter mode calculates the accumulated average exposure a worker receives over an 8-hour shift (noise dose).

Q: Is the software compatible with the latest versions of Windows?

A: Yes, the software included with the R8085 is compatible with current Windows operating systems for fast and easy data downloading via USB.

Q: Does the unit come with a calibration certificate?

A: The unit is factory-tested. For official certification requirements, Sylprotec offers optional certified calibration services.

Maintenance for noise dosimeters:

Regularly clean the microphone and windscreen using a soft, dry cloth.

Suggestions for noise dosimeters:

Do you need additional safety equipment? Check out the following items: CDN signs “Mandatory Hearing Protectors” (ECO117), OSHA sign “Hearing Protectors Notice” (EOAV322), earplug dispensers Howard Leight (OA1104D) and noise-reducing earplug dispensers (OA102).

Under "Accessories" at the bottom of the page, you’ll find these products: classic earplugs (OA101), earmuff hearing protection (OPH10A).
