Acrylic full dome convex mirror, for 360-degree view in an intersection.
M86-20
$111.55
Full dome convex mirror made of lightweight, durable acrylic with a black vinyl frame, giving a 360-degree view where four aisles cross. It hangs from the ceiling with the four chains and five S-hooks included, or mounts directly on the ceiling with four screws or bolts, not included. Available in 4 diameters, from 20 to 47 in. Designed for indoor use only, it reduces the risk of collision in warehouses, plants and hallways.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Full dome convex mirror, 360-degree view in an intersection

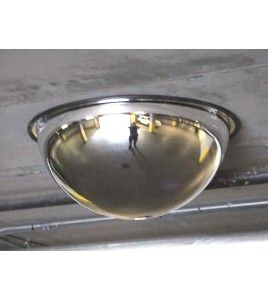

Hung from the ceiling where two aisles cross, this full dome convex mirror gives a 360-degree view in all four directions at once. Pedestrians and forklift drivers see what is coming from every side before moving ahead, which reduces the risk of collision in warehouses, plants and busy hallways. Made of lightweight, flexible and durable acrylic with a black vinyl frame, it can be suspended from chains or mounted directly on the ceiling. It is designed for indoor use only and must not be installed outdoors.
Available in 4 diameters. Select the size you need from the drop-down menu.
| Diameter | Sylprotec code |
|---|---|
| 20 in | M86-20 |
| 24 in | M86-24 |
| 31 in | M86-31 |
| 47 in | M86-47 |
Features of the acrylic full dome convex mirror
- 360-degree view for a four-way aisle intersection.
- Lightweight, flexible and durable acrylic mirror.
- Black vinyl frame, mirror open at the top.
- Four chains and five S-hooks included for suspension.

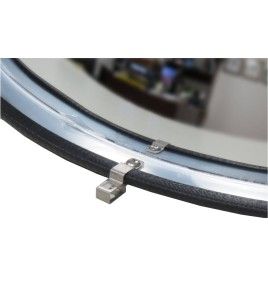

- Four mounting holes reinforced with metal brackets.
Applications of the full dome mirror at indoor intersections
This mirror eliminates blind spots and improves safety at indoor intersections. Use it to watch a room, hallway, aisle or entryway and help prevent accidents and shoplifting. Placed at the centre of a crossing, it replaces several wall mirrors with a single point of view.
Ceiling installation of the full dome convex mirror
The mirror can be installed in two ways: suspended from the ceiling with the four chains and five S-hooks included, or mounted directly on the ceiling with four screws or bolts (not included). The frame has four pre-drilled holes reinforced with metal brackets. This mirror is designed for indoor use only.
Sizing of the full dome convex mirror
The nominal size of a full dome mirror is the diameter of the dome, not the length of its circular arc. For example, a nominal 20 in full dome mirror is 20 in high, 20 in wide and 10 in deep, with a circular arc of about 31 in.
Maintenance of the full dome convex mirror
This first surface mirror has an exposed reflective coating that is not protected by glass. To protect the coating, the manufacturer recommends cleaning the mirror with furniture polish. Do not use glass cleaners: they could damage the reflective coating.
FAQ about the 360-degree full dome convex mirror
Can this mirror be installed outdoors?
No. It is designed for indoor use only.
How is it mounted on the ceiling?
Suspended with the four chains and five S-hooks included, or mounted directly on the ceiling with four screws or bolts, not included.
Is the mounting hardware included?
The chains and S-hooks are included, but the screws or bolts for direct ceiling mounting are not.
What does the listed size refer to?
The diameter of the dome, not the length of its arc. A 20 in mirror has an arc of about 31 in.
How do I clean the mirror without damaging it?
Use furniture polish, as recommended by the manufacturer. Glass cleaners can damage the reflective coating.
Suggestions to complement safety at your indoor intersections
For the maintenance technician climbing a stepladder to hang this mirror from a warehouse ceiling, proper protective equipment is a must. Kevlar blend cut-resistant gloves (GS13KFNT) protect the hands while handling the chains and hooks, and SecureFit safety glasses (YASF602) protect the eyes from falling dust while drilling. An MSA Super V helmet (TA82) protects the head under racking, a yellow flagperson shirt (VV17) keeps the technician visible to forklift drivers, and Classic earplugs (OA101) reduce warehouse noise.
To cover other layouts, the half-dome (M88) mirror watches a T-intersection and the quarter dome mirror (M89) covers a right-angle corner. During installation, isolate the area under the stepladder with an orange cone (EPTCONE28B) with two reflective collars, completed by a retractable Tensacone (EPTCT) belt. In an indoor parking garage, channel traffic with a drum (EPTBA) set on its weighted base (EPTBAB).
M86-20
Data sheet
- Product group
- Safety equipment
- Main category
- Industrial accessories
- Sub category
- Mirrors
- Name of the product
- Convex mirror
- Product code
- M86
- Features
- For 360 degree view in an intersection
- Additional Features
- This mirror helps eliminate blind spots for better safety
- Form
- Full dome
- Material1
- Acrylic
- Material2
- Vinyl
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer
- Length (in/cm)
- Variable according to selection
- Width (in/cm)
- Variable according to selection
- Height (in/cm)
- Variable according to selection
- Weight (lb/kg)
- Variable according to selection
- Color
- Gray/Black
- Return conditions
- Not returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
