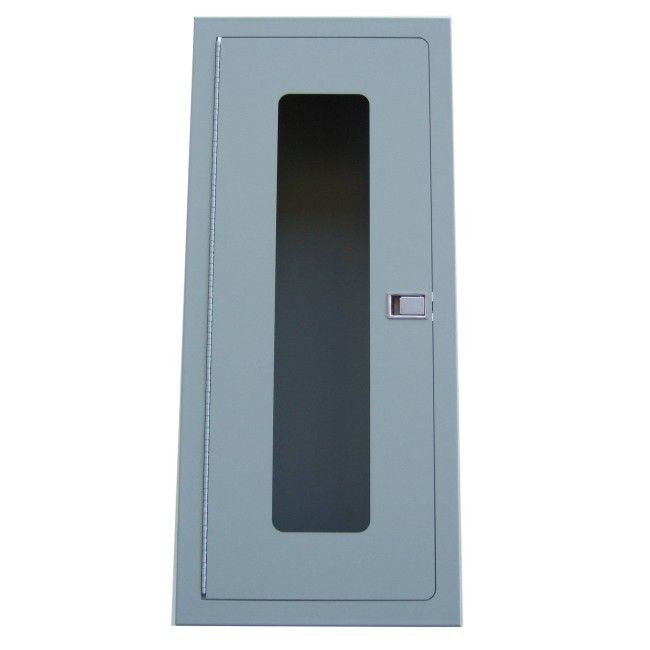

Semi-recessed built-in cabinet for 10 lbs powder fire extinguishers, pre-painted white

Semi-recessed protective cabinet for commercial and industrial fire extinguishers

The semi-recessed cabinet for 10 lb fire extinguishers is an elegant and robust medium-format storage solution designed to partially conceal your fire protection equipment while ensuring complete accessibility. Pre-painted with a white primer coat, this metal housing blends smoothly into the walls of modern buildings, significantly limiting how much the unit protrudes into high-traffic areas such as corridors or emergency exits.

In educational institutions, office buildings, and retail environments, safety regulations frequently mandate the installation of larger 10 lb fire extinguishers. This cabinet perfectly addresses design and safety requirements by embedding most of the extinguisher's body into the wall structure, providing a clean, professional finish that also safeguards the equipment against accidental impacts and dirt buildup.

Dimensions of cabinet:
width 9 in, high 24 in, depth 6 in.
(Width 22.3 cm, height 61 cm, depth 15.2 cm.)

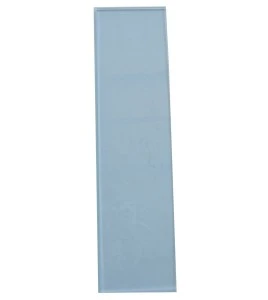

Dimensions of acrylic panel:
width 4 in, high 13 in.
(Width 10 cm, high 33 cm.)

Technical data sheet available in PDF version attached below (English only).

Robust metal design for secure wall integration

Manufactured from premium-grade durable steel, this cabinet features a swinging door that includes a clear acrylic front panel. This transparent window allows property managers and safety inspectors to immediately verify the presence of the dry chemical extinguisher and read its pressure gauge during mandatory monthly checks, without needing to open the box.

The pre-painted white finish serves as an ideal primer, allowing you to leave the cabinet as is for clean, minimalist decors or easily paint it to match your wall color precisely. Its recessed depth is perfectly suited for standard 4-inch deep wall partitions, leaving only a slight, clean border visible on the wall surface.

Why choose this 10 lb semi-recessed cabinet

• Optimized footprint: Fits inside the wall partition to minimize protrusion in busy hallways and comply with accessibility codes.

• Customizable finish: White primer coat ready to be painted to match your facilities' interior design.

• Acrylic window: Clear front panel included, ensuring excellent visibility of the device's pressure gauge.

• Steel protection: Rigid structure that shields life-safety equipment from mechanical impacts.

Technical specifications

• Compatibility: 10 lbs (pound) dry chemical portable fire extinguishers

• Installation type: Semi-recessed mounting (designed for standard 4-inch deep walls)

• Material: Heavy-duty steel with a white primer coat

• Visual component: Clear acrylic front panel included for the door window

• Cabinet dimensions: Width 10 in, height 24 in, depth 6 in

• Transparent panel dimensions: Width 6 in, height 19 in

FAQ — Frequently asked questions about the 10 lb semi-recessed cabinet

What is the difference between a surface-mounted cabinet and this 10 lb semi-recessed model?

A surface-mounted cabinet is fixed entirely on top of the wall partition and protrudes fully into the room (about 6 to 7 inches out for a 10 lb model). The semi-recessed model slips mostly inside a standard 4-inch wall cavity, reducing the exterior protrusion to just a fraction of its total depth to keep hallways clear.

Is the 10 lb fire extinguisher included with the cabinet?

No, the fire extinguisher is not included with the housing. The cabinet is sold separately alongside its clear acrylic panel so you can select the specific 10 lb fire extinguisher best suited for your building's unique hazards.

Is this cabinet suitable for installation in an underground parking garage or outdoors?

This pre-painted steel cabinet is engineered exclusively for indoor use in dry environments. For unheated parking garages exposed to dampness or for outdoor applications, it is highly recommended to use weatherproof thermoplastic or fiberglass cabinets to prevent rust and corrosion.
