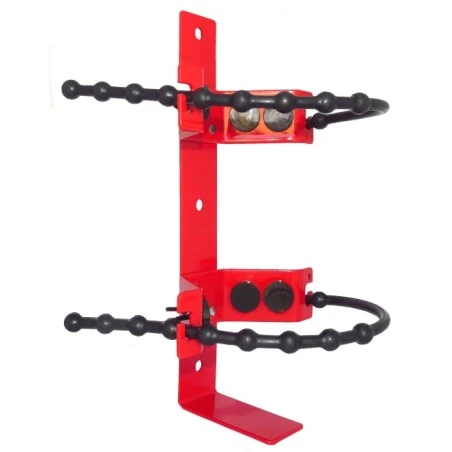

Amerex 862 heavy-duty vehicle rubber strap bracket for 10 lb portable fire extinguishers, Ø 5-7 inches

Amerex 862 vehicle hook for 10 lb extinguisher

The Amerex 862 hook is a rugged vehicle bracket for a 10 lb portable extinguisher with a 5 to 7 inch diameter. Its 5/32 inch (4 mm) thick steel frame ensures a solid hold in trucks, machinery and demanding conditions.

Specifications of the vehicle hook

• Type: vehicle hook for portable extinguisher.

• Capacity: 10 lb extinguisher.

• Extinguisher diameter: 5 to 7 in.

• Dimensions: height 4 in (10.16 cm) x length 13 in (33 cm) x width 8 in (20.3 cm).

• Weight: 3,5 lb (1,58 kg).

• Material: steel frame 5/32 in (4 mm) thick.

• Colour: Red/Black.

• Manufacturer: Amerex (code 862).

Location and installation of the vehicle hook

Per NFPA 10 on portable extinguishers, operational readiness is essential: place the extinguisher in a strategic spot in the vehicle, and never set it on the floor.

• Proper bracket: the extinguisher must always be installed on a purpose-built bracket, securely screwed to the vehicle's inner wall.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation; an extinguisher is only laid down when empty, to spot it and have it recharged.

• Vibration: dry chemical extinguishers are sensitive to vibration that packs the powder; a well-tensioned vehicle hook limits this.

Maintenance and mounting tips

• Flat-head screws: use flat-head screws to fix the hook so you do not damage the extinguisher cylinder.

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

FAQ about the vehicle hook

What sets this Amerex hook apart?

Its 5/32 in (4 mm) thick steel frame makes it a rugged bracket, designed for vehicle use and demanding conditions.

Should it be installed vertically?

Yes, the Montreal Fire Safety Service recommends a vertical installation; an extinguisher is only laid down when empty.

Which screws should I use?

Flat-head screws, so you do not damage the extinguisher cylinder.

Suggestions and accessories for your Amerex vehicle hook

See also an ABC dry extinguisher 10 lb (EXABC10), a Diamond wall hook 10 lb (CDM10), an Amerex 860 hook for 5 lb (CUNV5), an version 864 hook for 20 lb (CUNV20), a CO2 extinguisher 10 lb (EXCO10), a semi-recessed cabinet (EC7), an ABC size extinguisher 20 lb (EXABC20) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
