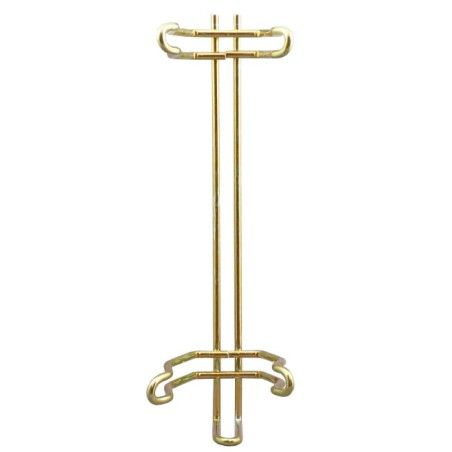

Universal vehicle bracket for 2.5 lb portable fire extinguishers with 3 ¼ inches in diameter

Universal vehicle hook for 2.5 lb extinguisher

The universal vehicle hook firmly holds a 2.5 lb portable extinguisher with a 3 1/4 inch diameter. Designed for in-vehicle installation, it keeps the extinguisher accessible and secure despite movement.

Specifications of the vehicle hook

• Type: vehicle hook for portable extinguisher.

• Capacity: 2,5 lb extinguisher.

• Extinguisher diameter: 3 1/4 in.

• Dimensions: height 5 in (12.7 cm) x length 12 in (30.48 cm) x width 6 in (15.24 cm).

• Weight: 0,8 lb (0,3 kg).

Location and installation of the vehicle hook

Per NFPA 10 on portable extinguishers, operational readiness is essential: place the extinguisher in a strategic spot in the vehicle, and never set it on the floor.

• Proper bracket: the extinguisher must always be installed on a purpose-built bracket, securely screwed to the vehicle's inner wall.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation; an extinguisher is only laid down when empty, to spot it and have it recharged.

• Vibration: dry chemical extinguishers are sensitive to vibration that packs the powder; a well-tensioned vehicle hook limits this.

Maintenance and mounting tips

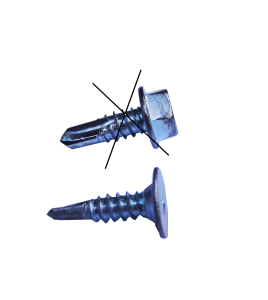

• Flat-head screws: use flat-head screws to fix the hook so you do not damage the extinguisher cylinder.

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

FAQ about the vehicle hook

Which extinguisher does this hook fit?

A vehicle extinguisher of the stated size and diameter. As long as the cylinder fits snugly on the hook, it will hold securely.

Should it be installed vertically?

Yes, the Montreal Fire Safety Service recommends a vertical installation; an extinguisher is only laid down when empty.

Which screws should I use?

Flat-head screws, so you do not damage the extinguisher cylinder.

Suggestions and accessories for your vehicle hook

See also an ABC dry extinguisher 2.5 lb (EXABC2.5), an Amerex wall hook 2.5 lb (CAM2), a universal wall bracket 2.5 lb (CM2.5), a vehicle hook for 5 lb (CUN5), an Amerex 860 hook for 5 lb (CUNV5), a semi-recessed cabinet (EC5), an ABC size extinguisher 5 lb (EXABC5) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
