ExoFit X200 Class ALP Cross-over Climbing/Positioning Harness DBI-SALA 3M

Reference : FPH1402158CALP

$497.00

3M DBI-SALA ExoFit X200 Class ALP cross-over harness for fall arrest, climbing and positioning. Patented double-locking buckles, stand-up dorsal D-ring, sternal D-ring, sub-pelvic strap and integrated adapter for connecting a self-retracting lifeline. CSA Z259.10-18 compliant.

Size: Large

Quantity

Compare

Estimate Shipping

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

More Info
Data Sheet

DBI-SALA X200 harness Class ALP Climbing

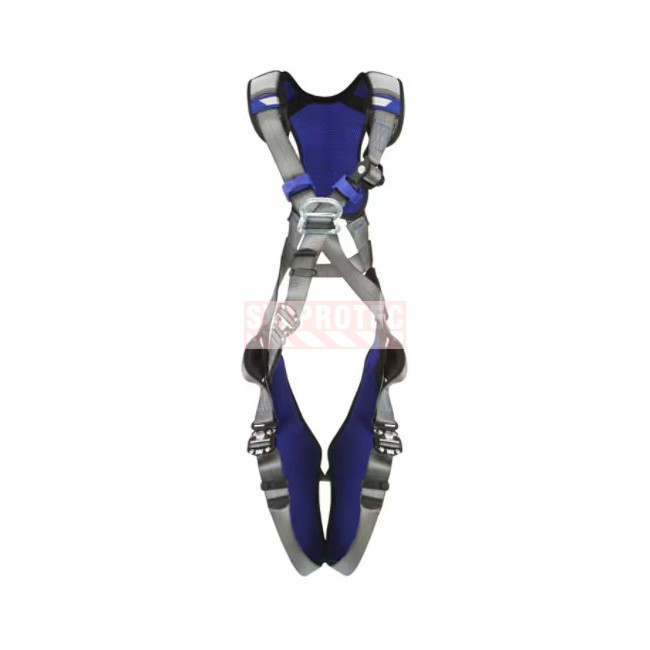

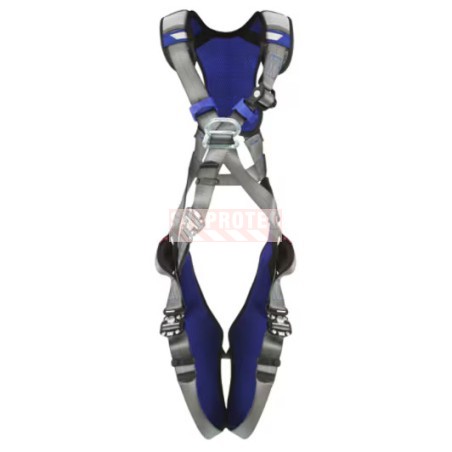

The ExoFit X200 Class ALP (fall arrest, ladder climbing and positioning) harness by 3M DBI-SALA is designed for professionals demanding reliability, comfort and safety during work at height. Ideal for: fixed ladder climbing, telecom towers, wind turbines and pylons. Made in the USA, compliant with CSA Z259.10-18. This harness is cross-over style, with X-shaped shoulder straps that distribute the load and ease wearing a safety vest at the same time. The integrated adapter for easy connection of an individual self-retracting lifeline allows quick attachment and removal of the SRL at the dorsal connection point.

Size	Sylprotec Code	DBI-SALA Model	3M Purchase Code
XS	FPH1402155CALP	1402155C	7012817917
Small	FPH1402156CALP	1402156C	7012817919
Medium	FPH1402157CALP	1402157C	7012817921
Large	FPH1402158CALP	1402158C	7012817923
X-Large	FPH1402159CALP	1402159C	7012817925

Technical description : features and components

This ExoFit X200 safety harness features dorsal, sternal and hip D-rings with automatic vertical positioning (stand-up) and anti-slip plate. The patented 3M double-locking quick-connect buckles keep the adjustment secure throughout the shift, eliminating frequent readjustments. The torso buckle is swivel and lockable. The sub-pelvic strap prevents orthostatic suspension syndrome in the event of a fall.

The 6,000 lb polyester webbing offers superior UV and chemical resistance. Zinc-plated alloy steel hardware is unpainted for easy visual inspection. Color-coded webbing simplifies donning. Available in: XS, Small, Medium, Large, X-Large.

Load capacity and certified safety standards

Maximum load: 310 lb / 140.6 kg including clothing, tools and equipment. Compliant with CSA Z259.10-18 for the Canadian market. Made to order by 3M. Allow approximately 1 month lead time.

Materials : strength, durability and light weight

6,000 lb (27 kN) polyester webbing: superior resistance to acids and UV. Unpainted light aluminum-alloy D-rings and slides, and quick-connect leg buckles of hybrid aluminum-alloy and zinc-plated-steel construction (light weight and strength): facilitates visual inspection with advanced material engineering specific to 3M DBI-SALA harnesses. Multi-color webbing: quick identification of anchor points and adjustments. Plastic tips on webbing ends: prevent fraying over time.

Application and recommended uses

Suitable for: fixed ladder climbing, telecom towers, wind turbines and pylons. Meets the requirements of Canadian Labour Code and CNESST (Quebec) regulations for work at height. Sizes available: XS, Small, Medium, Large, X-Large.

Inspection and service life : verification guide

Inspect before each use: check for cuts, fraying, broken stitching and deformed hardware. Inspection by a qualified person is required at least annually. Recommended service life: 5 years with regular use. Any harness subjected to a fall must be removed from service and destroyed immediately. Sylprotec offers annual inspection by a qualified technician.

Care and cleaning to extend service life

Clean with mild soap and lukewarm water (max 37 C / 98.6 F). Never use bleach, solvents or abrasive products. Air dry away from direct sunlight. Store hanging in a clean, dry location away from chemicals and heat sources.

FAQ - Frequently Asked Questions

What is the difference between cross-over style and vest style?

The cross-over style uses X-shaped shoulder straps that cross at the back, distributing the load and making it easier to wear a high-visibility safety vest at the same time. The vest style uses vertical shoulder straps for faster donning. Both provide the same protection; the choice depends on comfort and whether a vest needs to be worn over the harness.

Can the dorsal, sternal and hip D-rings be used at the same time?

Each D-ring has a specific function and must never be used outside its intended purpose. The dorsal ring is for fall arrest, the sternal ring for guided ascent and the hip rings for positioning with a restraint lanyard. Use the ring matching the current task; hip rings are never used for fall arrest. Always consult the manufacturer's instructions and applicable regulations.

Why is there about a 1 month lead time for this harness?

This model is made to order by 3M and is not kept in regular stock. Allow approximately 1 month from the order date. For an urgent need, contact Sylprotec: we can check availability and suggest an equivalent in-stock harness when possible.

Complementary Suggestions

To complete your fall protection system, add a leading-edge SRL retractable (FPLR80302-18LE) or an energy-absorbing lanyard (FPL1340125C) as your fall arrest connection. Protect the head with a Peak T2 helmet with integrated chin strap (TA222), the eyes with safety glasses (YA11514) and hearing with earplugs (OA1250). For the job, add suitable gloves (GMXVSB) and a flame-resistant garment (V1766).

Under “Accessories” at the bottom of the page. For safe storage and transport of your equipment at height, a Peakworks bag (FPBAG) keeps your gear clean and inspection-ready.

Green-coloured text corresponds to hyperlinks leading to specific safety equipment or general information.

Reference FPH1402158CALP

Data sheet

Product group: Safety equipment
Main category: Personal protection
Sub category: Fall protection
Sub sub category: Fall protection safety harness
Name of the product: Safety harness
Series of products: ExoFit X200
Product code: FPH1402158CAL
Product use: Integrated adapter for quick connection of an individual self-retracting lifeline
Approved/Certified: Compliant with CSA Z259.10-18
Manufacturer: 3M DBI-SALA
Country of origin: United State of America
Choice of format: Available in extra-small (XS) to extra-large (XL)
Reusable: Reusable with careful inspection and proper installation
Features: Patented 3M double-locking quick-connect buckles. Sternal D-ring for ladder climbing.
Characteristic adding safety: Polyester webbing with a 6,000 lb (26.7 kN) strength rating.
Comfort features: Equipped with a sub-pelvic strap providing greater comfort during suspension.
Characteristics of metal parts: Unpainted metal parts for easy visual inspection; patented 3M self-locking quick-connect leg buckles made of aluminum alloy and zinc-plated steel (hybrid construction), combining light weight and strength
Feature that facilitates use: The straps have distinct colors for easy donning
Includes: With 1 zinc-plated steel dorsal D-ring (stand-up) and 1 sternal (front) D-ring
Includes 3: The ends of the straps have plastic tips to prevent fraying and allow the user to adjust the harness easily even when wearing work gloves
Property of the material: Polyester straps offer better resistance to acidic chemicals
Classification: Class ALP — dorsal (A, fall arrest) + sternal (L, climbing) + hips (P, work positioning)
Type of harness: Cross-over style harness
Material1: Polyester
Material2: Aluminum
Material3: Aluminum alloy / zinc-plated steel
Weight (lb/kg): 4.46 lb / 2.02 kg
Availability: Please note: Available only on special order
Sold by: Unit
Color: Gray/Blue
Return conditions: No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
Caution: The maximum weight of the worker wearing this harness is 310 lb / 140.6 kg, including clothing, tools, etc.
