ExoFit X300 Class AP Construction, Hip D-Rings, DBI-SALA 3M Harness
FPH1403090CAP
$860.75
ExoFit X300 Class AP DBI-SALA fall arrest harness. Aluminum alloy hardware, patented 3M auto-locking buckles, integrated RFID Connected Safety ID. CSA Z259.10 compliant. Made to order by 3M. Allow approximately 1 month.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
This model features a weight distribution system that relieves the load on the shoulders during long days at height.

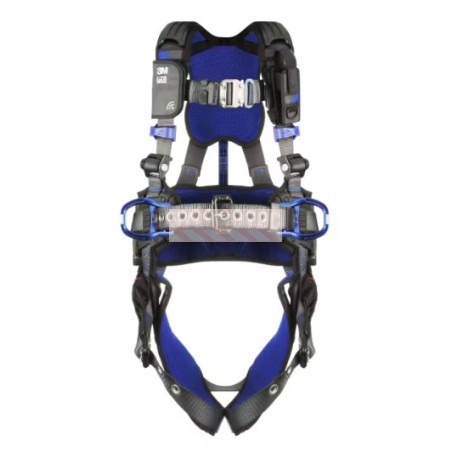

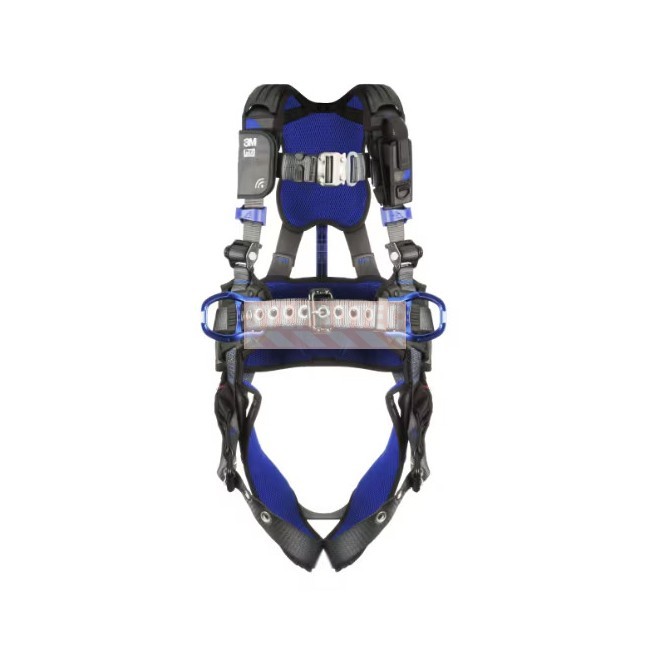

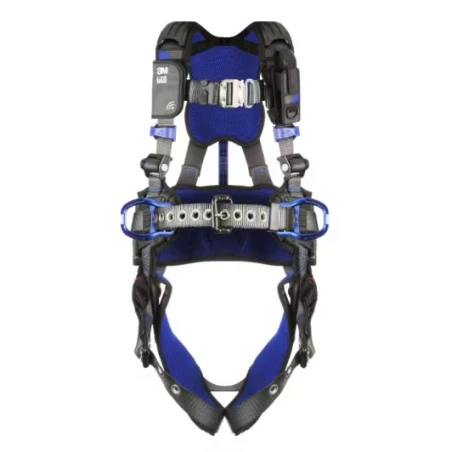

ExoFit X300 Class AP Positioning Harness DBI-SALA 3M
The ExoFit X300 Class AP harness by 3M DBI-SALA is designed for workers at a height requiring performance and protection. This harness features one aluminum alloy dorsal D-ring (stand-up) and two aluminum side D-rings for positioning, 3M patented auto-locking buckles for quick and reliable donning, and an integrated RFID connected safety ID system enabling electronic inspection management. Maximum capacity 310 lb (140.6 kg). Complies with CSA Z259.10-18. Made to order by 3M. Please allow approximately 1 month lead time. This harness is vest-style, with vertical shoulder straps for easy donning and optimal comfort.
| Size | Sylprotec Code | DBI-SALA Model | 3M Purchase Code |
|---|---|---|---|
| Small | FPH1403088CAP | 1403088C | 7012817975 |
| Medium | FPH1403089CAP | 1403089C | 7012817977 |
| Large | FPH1403090CAP | 1403090C | 7012817979 |
| Extra Large | FPH1403091CAP | 1403091C | 7012817981 |
| 2X-Large | FPH1403092CAP | 1403092C | 7012817983 |
Technical description : features and components
This Class AP harness provides fall arrest and positioning through one aluminum alloy dorsal D-ring (stand-up) and two aluminum side D-rings for positioning. 3M patented auto-locking buckles click and lock automatically in a single motion, eliminating the risk of forgetting manual locking seen with conventional double-locking buckles. Each D-ring is made from anodized aluminum alloy, offering an excellent strength-to-weight ratio and superior corrosion resistance in wet or chemical environments. The RFID Connected Safety ID system, integrated into the harness body, allows safety managers to electronically record inspection dates and individual verification results. Five independent adjustment points (shoulders, chest, thighs, sub-pelvic) ensure an optimal fit and uniform force distribution during a fall arrest event.
Load capacity and certified safety standards
Maximum capacity of 310 lb (140.6 kg) including worker weight, clothing, and equipment. Complies with CSA Z259.10-18 (Safety Harnesses) in effect in Canada. Polyester webbing tensile strength: 6,000 lb (2,722 kg). This harness meets Canadian provincial and federal occupational health and safety regulations for work at height.
Materials : strength, durability and light weight
High-strength polyester webbing (6,000 lb / 2,722 kg), resistant to abrasion, moisture, and UV rays. Aluminum D-rings and hybrid aluminum-stainless steel alloy buckle thigh straps (superior corrosion resistance in wet or corrosive environments): excellent strength-to-weight ratio, superior corrosion resistance compared to alloy steel in wet or chemical environments, and reduced total weight to minimize muscle fatigue. The 3M Connected Safety ID (CSID) system is encapsulated within the harness body, making it impact-, water-, and dust-resistant. Padding areas use memory foam covered with breathable fabric for maximum comfort during long days at height.
Application and recommended uses
The ExoFit X300 Class AP positioning harness is designed for work requiring maintained work positioning on structures or rooftops: solar panel installation and maintenance, electrical tower work, steel structure assembly, and any movement restriction application. Aluminum side D-rings allow positioning rope connections without compromising the dorsal fall arrest system. Made to order by 3M. Please allow approximately 1 month lead time.
Inspection and service life : verification guide
Before each use, visually inspect the entire harness: webbing (wear, cuts, chemical or thermal burns, excessive UV exposure), hardware (deformation, corrosion, proper operation of 3M patented auto-locking buckles), stitching (fraying, tearing), and D-rings (deformation, cracks). A thorough inspection by a competent person must be performed every 6 months under normal use, or every 3 months under intensive use. Maximum service life is 5 years from first use or 10 years from date of manufacture. The harness must be immediately removed from service after any fall, even without apparent visible damage. Record each inspection using the integrated RFID Connected Safety ID system for complete traceability.
Maintenance and cleaning to extend service life
High-strength polyester webbing (6,000 lb / 2,722 kg), resistant to abrasion, moisture, and UV rays. Aluminum D-rings and hybrid aluminum-stainless steel alloy buckle thigh straps (superior corrosion resistance in wet or corrosive environments): excellent strength-to-weight ratio, superior corrosion resistance compared to alloy steel in wet or chemical environments, and reduced total weight to minimize muscle fatigue. The 3M Connected Safety ID (CSID) system is encapsulated within the harness body, making it impact-, water-, and dust-resistant. Padding areas use memory foam covered with breathable fabric for maximum comfort during long days at height.
FAQ : frequently asked questions about this product
How does the RFID Connected Safety ID work?
A passive RFID chip is integrated into the harness at manufacture. With a compatible 3M connected safety reader, managers can read the unique identifier and record inspections. This system replaces paper tags and enables complete traceability in a centralized database.
How do I use the positioning D-rings?
Side D-rings connect to a positioning rope or movement restriction system. These rings are not designed for fall arrest: always use the dorsal D-ring for connection to the fall arrest device.
What is the lead time?
The ExoFit X300 harness is made to order by 3M. Please allow approximately 1 month from order confirmation. Contact Sylprotec to plan your order according to your operational needs.
Recommended complementary personal protective equipment
To complete your fall protection system, add a leading-edge SRL retractable (FPLR73302-40LE) or an energy-absorbing lanyard (FPL1340125C) as your fall arrest connection. Protect the head with a Peak T2 helmet with an integrated chin strap (TA222), the eyes with safety glasses (YA11514) and hearing with earplugs (OA1250). For the job, add suitable gloves (GS13SXGPU) and a flame-resistant garment (V1766).
Under “Accessories” at the bottom of the page. For safe storage and transport of your equipment at height, a Peakworks bag (FPBAG) keeps your gear clean and inspection-ready.
FPH1403090CAP
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Fall protection safety harness
- Name of the product
- Safety harness
- Series of products
- ExoFit X300
- Product code
- FPH1403090CAP
- Product use
- Designed for construction work
- Approved/Certified
- Compliant with CSA Z259.10-18
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Choice of format
- Size small (S) to double extra large (2XL) available
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Patented 3M dual-locking quick-connect buckles. Hip D-rings for positioning Tongue-buckle thigh straps
- Additional Features
- Integrated SRL adapter and 3M Connected Safety ID (RFID)
- Characteristic adding safety
- Polyester webbing with a 6,000 lb (26.7 kN) strength rating
- Comfort features
- Equipped with a sub-pelvic strap for greater comfort during suspension. Weight distribution system that relieves the load on your shoulders.
- Characteristics of metal parts
- Quick-release buckle made of zinc-plated steel, D-ring made of anodized aluminum, belt and strap with a zinc-plated steel buckle
- Post-suspension relief strap
- Includes trauma straps to allow the fallen worker to stand up while awaiting recovery and avoid losing consciousness
- Includes
- Includes 3 aluminum D-rings: 1 self-standing dorsal D-ring and 2 lateral hip D-rings for work positioning
- Includes 2
- Equipped with a padded work belt at the waist with a tongue buckle for stable positioning and lumbar support during extended work at height
- Includes 3
- The ends of the straps have plastic tips to prevent fraying and allow the user to adjust the harness easily even when wearing work gloves
- Type of retaining straps
- Auto-resetting lanyard keepers and radio/cell phone holster
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Classification
- Class AP — dorsal D-ring (A, fall arrest) + lateral hip D-rings (P, work positioning)
- Function of attachment points
- Dorsal D-ring: fall arrest. Hip D-rings: work positioning
- Type of harness
- Vest-style harness
- Material1
- Polyester
- Material2
- Aluminum
- Material3
- Aluminum alloy / zinc-plated steel
- Washable
- Wash with mild soap and lukewarm water at 98.6°F / 37°C. Never use bleach or abrasive chemicals. Air dry only
- Length (in/cm)
- 18 in / 45.72 cm
- Width (in/cm)
- 16 in / 40.64 cm
- Height (in/cm)
- 7.8 in / 19.81 cm
- Weight (lb/kg)
- 4.46 lb / 2.02 kg
- Availability
- Please note: Available only on special order
- Sold by
- Unit
- Color
- Gray/Blue
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker wearing this harness is 310 lb / 140.6 kg, including clothing, tools, etc
