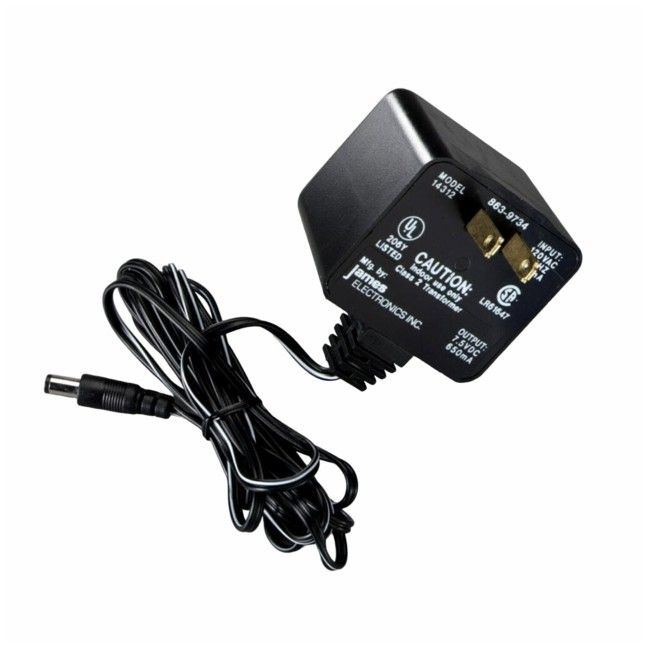

Adapter for 3M compressed air filter and regulator panel feeder

3M Adapter for Compressed Air Filtration Panel: Reliable and Compliant Power Supply

3M Manufacturer Code: 7000131705 or 529-04-50. This 3M adapter is designed to power compressed air filtration and regulation panels with a flow rate of 100 ft³/min. It guarantees a stable and secure electrical supply for carbon monoxide monitoring systems, especially model 256-02-01. Thanks to its robust design and direct compatibility with 3M equipment, this adapter is a key component in maintaining breathable air quality in industrial environments.

Operation and Compatibility of the 3M Power Adapter

The adapter operates on a 120 V power supply and easily connects to the filtration panel to activate the CO monitor. It is specifically designed for model 256-02-01, ensuring seamless integration into compressed air filtration systems. Its durable design allows extended use in industrial conditions while meeting safety and performance standards.

The application of the 3MMc 529-04-50 adapter is simple and fast. Here are the steps to follow:

1. Turn off the filtration panel: Before proceeding, make sure the filtration panel is turned off and unplugged.
2. Locate the power port: Find the power port on the filtration panel. It is usually a small connector located on the back or side.
3. Plug in the adapter: Insert the plug of the 3MMc R529/04/50 adapter into the power port of the filtration panel. Make sure it is securely in place.
4. Plug the adapter into an electrical outlet: Connect the other end of the adapter to a standard wall outlet. Check that the connection is solid.
5. Turn on the filtration panel: Once the adapter is plugged in, turn on the filtration panel. The carbon monoxide (CO) monitor should now be powered by the mains.
6. Check operation: Verify that the carbon monoxide monitors displays information correctly. If everything works as expected, you are ready to monitor CO safely.

Technical Features of the Adapter for Filtration Panel

The 3M™ R529/04/50 adapter is used with the carbon monoxide (CO) monitor in the 3M™ Portable Compressed Air Filter and Regulator Panel R256/02/00 and Portable Compressed Air Filter and Regulator Panel R256-02-01, as well as in the 3M™ RW2808 CO monitor modification kit. It enables the CO monitor to be converted from battery operation to mains operation.

Installing the 3M Power Adapter

Installation is simple: just plug the adapter into a 120 V power source and connect it to the compatible filtration panel. No specialized tools are required. Make sure the connections are secure to ensure constant power supply to the CO monitor.

Maintenance of the Adapter for Compressed Air Regulation Panel

Unplug the adapter before cleaning. Use a dry cloth to remove dust or dirt. Check cables and connectors for signs of wear or damage. Replace immediately if necessary. Store the adapter in a dry, shockproof place.

Remember to consult your filter panel's user manual for specific instructions concerning the adapter.

Usage Tips for Optimal Safety

Use this adapter exclusively with compatible 3M filtration panels, especially model 256-02-01. Do not attempt to modify it or use it with uncertified equipment. Ensure the environment meets the required electrical conditions to prevent any interruption in CO monitoring.

Restrictions

• Make sure the electrical voltage supplied by the wall outlet matches that specified for the adapter.
• Use the adapter in a clean, dry environment. Avoid humid or dusty areas.
• Use only with the filtration panel and carbon monoxide monitor models specified by 3MMc.
• If the panel is powered by the 120 V adapter, intrinsic certification is void.

FAQ About the Power Adapter for 3M Filtration Panel

Is this adapter compatible with all filtration panels?

No, it is designed to work with 3M model 256-02-01. Use with other models is not guaranteed.

Can this adapter be used in a humid environment?

It is best to install it in a dry and protected location to avoid electrical risks or corrosion.

Can the adapter be returned after use?

 No, in accordance with safety policy, the adapter is non-returnable once used.

Complementary suggestions of the Adapter for Compressed Air Regulation Panel

Need additional safety equipment? See the following items: CDN “Cartridge Respirator Required” sign (ECO106), “Notice: Cartridge Respirator Required in This Area” sign (EOAV328-107), half-face respirator (R6200), full-face respirator (RFF402), or Airline (RW2929).

See “Accessories” at the bottom of the page. If you're looking for work equipment, have a look at the following products: Airline (RW2929), facepiece for respiratory protection (RM307), 3M s-Series hood (RS655) and filter panel R256/02/01.

Texts colored green corresponds to hyperlinks leading to specific safety equipment or to a general information link.
