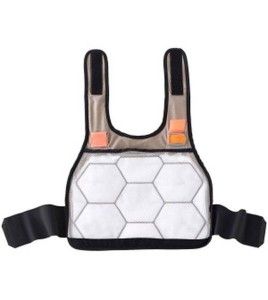

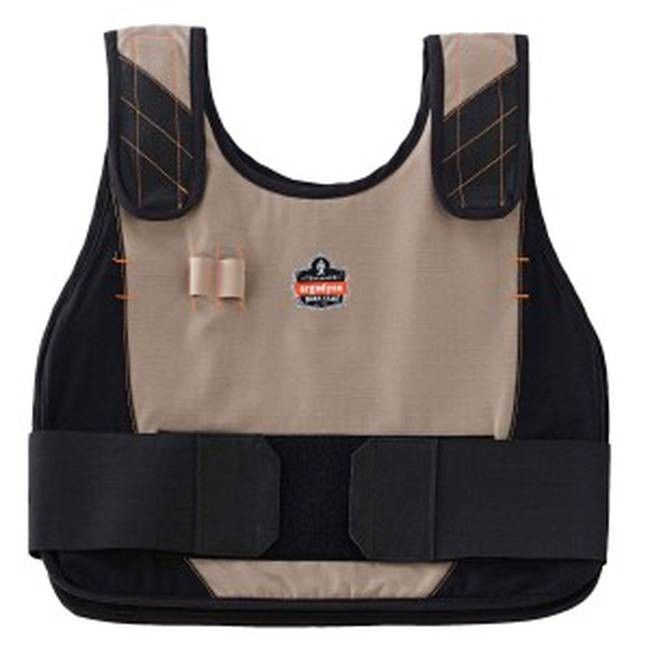

Vest change of state, for environments with intense heat.
VH6215-LXL
$534.50
Phase-change cooling vest, flame-resistant and dielectric (Banox FR3 fabric, ATPV 9.4 cal/cm², HRC 2 NFPA 70E). Maintains 14 °C (58 °F) near the body for 4 h using frozen thermal packs. Special order, sizes S/M and L/XL.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Phase-change cooling vest, flame-resistant and dielectric, ATPV 9.4 cal/cm², HRC 2
Special order only.
This phase-change (water evaporation) vest is designed for intense-heat environments. It maintains a constant temperature of 14 °C (58 °F) near the body regardless of the ambient temperature, improving worker productivity while preventing heat stress. Unique in the cooling range: it is also flame-resistant and dielectric, making it compatible with work exposed to arc flash.
How the phase-change vest and thermal packs work
The vest holds thermal packs inserted in mesh pockets near the worker's body. It is recommended to freeze the thermal packs before use: they slowly absorb heat and keep a cool temperature near the body. Repeat the pack cooling cycle as needed, and plan spare packs for long-duration work. The cycle maintains a temperature of about 14 °C (58 °F) for 4 hours (results may vary depending on the method used).
Flame-resistant and dielectric protection in Banox FR3 fabric
The vest is entirely made of dielectric materials (non-conductive). It is flame and arc-flash resistant thanks to Banox FR3 fabric, with an ATPV rating of 9.4 cal/cm² and HRC 2 certification per the NFPA 70E standard. It therefore suits the worker who must stay cool while being protected against arc flash.
Available sizes of the flame-resistant cooling vest
Two sizes are available: Small/Medium (S/M) or Large/Extra Large (L/XL). Please specify your size when ordering.
Applications of the vest in hot and electrical environments
This vest suits workers exposed to both intense heat and arc flash risk: electrical technicians, substation staff, foundries, heavy industry and any job requiring cooling and flame-resistant protection at once.
Care of the phase-change vest
Remove the thermal packs before any care of the vest. Let the vest air dry and store it in a dry place. Do not use bleach or abrasive cleaners. Inspect the vest and packs before each use and replace any damaged item.
FAQ about the flame-resistant phase-change cooling vest
What temperature does the vest maintain?
About 14 °C (58 °F) near the body, for 4 hours per cycle, regardless of the ambient temperature.
How do I activate the vest?
Freeze the thermal packs, insert them in the vest's mesh pockets: they absorb heat and release coolness. Repeat the cycle as needed.
Does the vest protect against arc flash?
Yes. Fully dielectric and flame-resistant (Banox FR3 fabric), it has an ATPV rating of 9.4 cal/cm² and HRC 2 certification per NFPA 70E.
What sizes are available?
Two sizes: Small/Medium (S/M) and Large/Extra Large (L/XL). Specify your size when ordering. Special-order product.
Do I need spare thermal packs?
For long-duration work, yes: spare packs let you alternate cooling cycles without interruption.
Complementary cooling accessory suggestions
To fight the heat from head to toe, pair this vest with the grey nylon cooling vest (VH6665G), the cooling glasses SecureFit (YASF401), the cooling earplugs (OA101) and the cooling towel (VH6602).
Under "Accessories" at the bottom of the page, add the cooling hood (VH6710CT), a bilingual first aid seal (TRS) and Cool Jel burn gel packets (PS625) and a 3M N95 respirator (R8210).
VH6215-LXL
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Safety clothing
- Sub sub category
- Heat-resistant gear and cooling wear accessories
- Name of the product
- Cooling Vest
- Series of products
- Chill-Its®
- Product code
- VH6215
- Approved/Certified
- Complies with HRC 2 according to NFPA 70E
- Manufacturer
- Ergodyne
- Country of origin
- China
- Thermal protection
- ATPV 9.4 cal/cm2 (HRC 2)
- Flame Resistance
- Flame resistant
- Choice of format
- Universal size (S-M / L-XL)
- Features
- The cooling cycle maintains the temperature near your body at 14°C (58°F) for 4 hours
- Additional Features
- The vest is made entirely of dielectric (non-conductive) materials
- Comfort features
- Patented honeycomb ice pack design eliminates stiffness
- Includes
- With adjustable hook and loop closures on the shoulders and waist
- Includes 2
- Equipped with 2 elastic pen loops on the chest
- Material
- Banox FR3® fabric
- Washable
- Should be hand-washed with warm water and soap, never use solvents
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer.
- Length (in/cm)
- 16 in / 40.6 cm
- Width (in/cm)
- 12 in / 30.48 cm
- Height (in/cm)
- 6 in / 15.2 cm
- Weight (lb/kg)
- 8 lb / 3.6 Kg
- Availability
- Please note: Available only on special order
- Sold by
- Unit
- Color
- Khaki
- Return conditions
- No returnable
