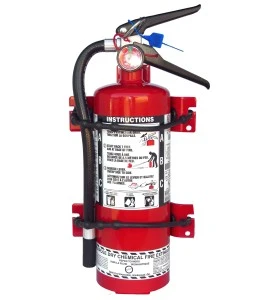

Amerex 864 heavy-duty vehicle rubber strap bracket for 20 lb portable fire extinguishers, Ø 7-8 inches

Amerex 864 vehicle hook for 20 lb extinguisher

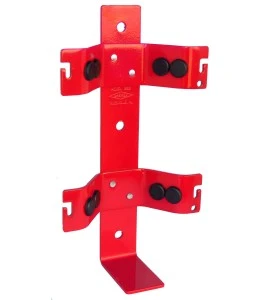

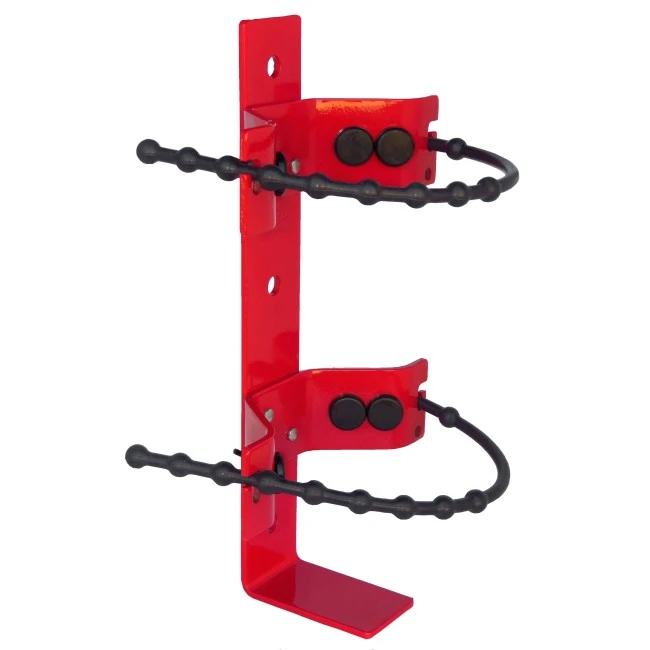

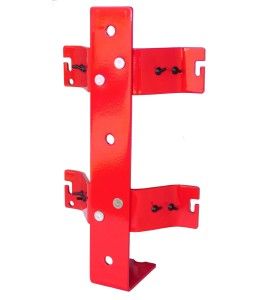

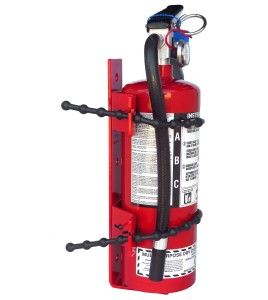

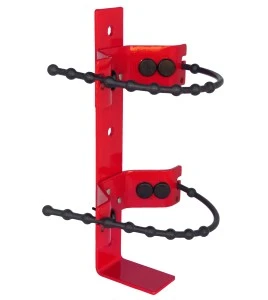

The Amerex 864 hook is a rugged vehicle bracket for a 20 lb portable extinguisher with a 7 to 8 inch diameter. Its 5/32 inch (4 mm) thick steel frame makes it the ideal choice for large extinguishers in trucks, machinery and mobile industrial setups.

Specifications of the vehicle hook

• Type: vehicle hook for portable extinguisher.

• Capacity: 20 lb extinguisher.

• Extinguisher diameter: 7 to 8 in.

• Dimensions: height 5 in (12.7 cm) x length 19 in (48.26 cm) x width 11 in (27.94 cm).

• Weight: 5,3 lb (2,40 kg).

• Material: steel frame 5/32 in (4 mm) thick.

• Colour: Red/Black.

• Manufacturer: Amerex (code 864).

Location and installation of the vehicle hook

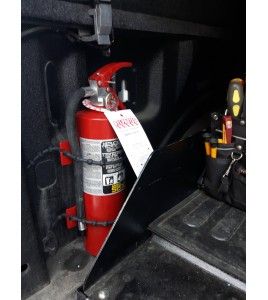

Per NFPA 10 on portable extinguishers, operational readiness is essential: place the extinguisher in a strategic spot in the vehicle, and never set it on the floor.

• Proper bracket: the extinguisher must always be installed on a purpose-built bracket, securely screwed to the vehicle's inner wall.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation; an extinguisher is only laid down when empty, to spot it and have it recharged.

• Vibration: dry chemical extinguishers are sensitive to vibration that packs the powder; a well-tensioned vehicle hook limits this.

Maintenance and mounting tips

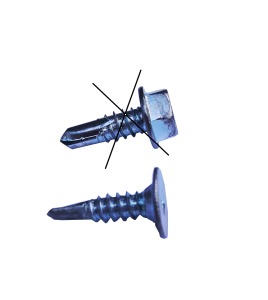

• Flat-head screws: use flat-head screws to fix the hook so you do not damage the extinguisher cylinder.

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

FAQ about the vehicle hook

What sets this Amerex hook apart?

Its 5/32 in (4 mm) thick steel frame makes it a rugged bracket, designed for vehicle use and demanding conditions.

Should it be installed vertically?

Yes, the Montreal Fire Safety Service recommends a vertical installation; an extinguisher is only laid down when empty.

Which screws should I use?

Flat-head screws, so you do not damage the extinguisher cylinder.

Suggestions and accessories for your Amerex vehicle hook

See also an ABC dry extinguisher 20 lb (EXABC20), a Diamond wall hook 20 lb (CDM20), an Amerex 862 hook for 10 lb (CUNV10), a CO2 extinguisher 20 lb (EXCO20), a semi-recessed cabinet (EC7), an ABC size extinguisher 10 lb (EXABC10), an ABC compact extinguisher 5 lb (EXABC5) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.
