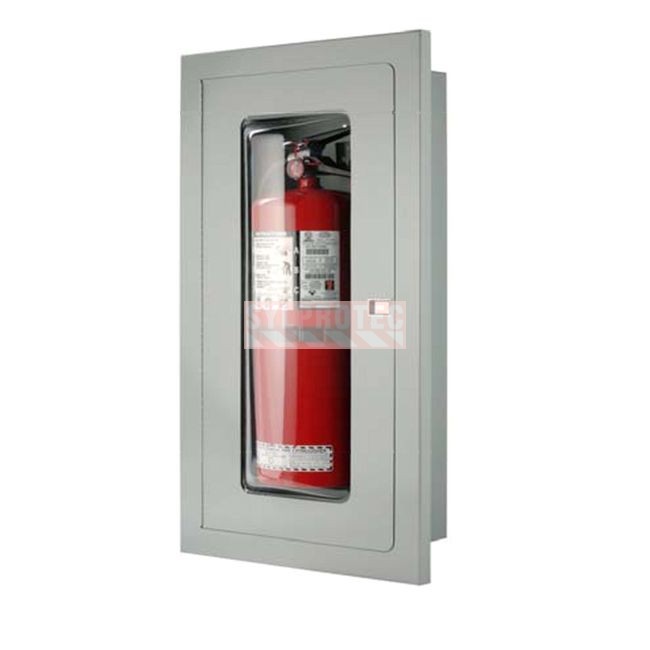

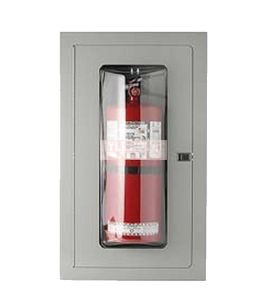

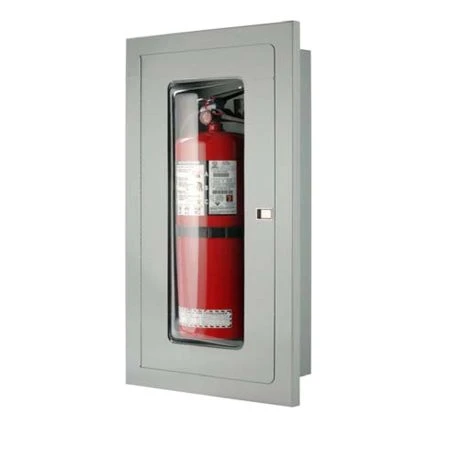

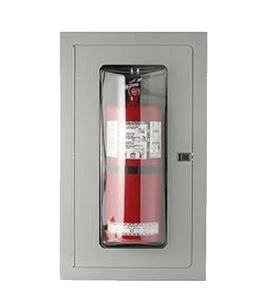

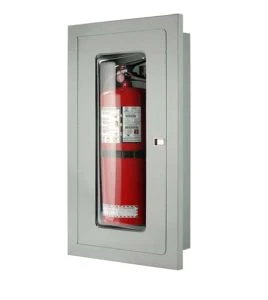

Semi-recessed cabinet for 2.5 gal, 10 lbs, 20 lbs extinguishers

Semi-recessed cabinet for 2.5 gal water, 10 lbs CO2 or 20 lbs dry chemical powder fire extinguishers

The EC7 semi-recessed cabinet by Sylprotec is designed to house three types of large-format fire extinguishers: 2.5 gallon water extinguishers, 10 lbs CO2 extinguishers and 20 lbs ABC dry chemical powder extinguishers. Pre-painted flat white, it integrates discreetly into the wall while keeping fire safety equipment accessible in case of emergency. A transparent bubble (moulded) panel is included for the front window. Extinguisher not included.

This cabinet is ideal for institutional, commercial and industrial buildings that require fire protection suited to larger extinguisher formats. It is designed for walls with a 4-inch depth and a 1-inch return. Made in Canada. Technical data sheet available in PDF format, attached at the bottom of the page (English only).

Benefits

Versatility - three compatible extinguisher types

The EC7 is one of the few standard semi-recessed cabinets to offer compatibility with three families of large-format extinguishers. This versatility makes it particularly useful when planning fire safety installations in existing buildings where the extinguisher type may vary by zone or change over time. A single cabinet model can cover multiple configurations without requiring different housing units.

Compatibility with water extinguishers is especially valued in heritage buildings, multi-unit residential buildings and Class A fire risk areas. The CO2 version suits server rooms, laboratories and spaces where water damage must be avoided. The 20 lbs powder version suits industrial zones with elevated fire risk.

Bubble panel included - ready to install

Unlike some models that require having a custom glass pane cut, the EC7 cabinet ships with its transparent bubble (moulded) panel already included. This front window allows visual verification of the extinguisher's presence without opening the cabinet, making daily inspection rounds easier. Installation can therefore be completed without additional steps or a visit to a glass shop.

Dimensions and installation

Cabinet dimensions: width 14.5 in (36.8 cm), height 30 in (76.2 cm), depth 4 in (10.1 cm). Bubble panel dimensions: width 10 3/4 in (27.3 cm), height 27 in (68.6 cm). This larger format than the EC5 and EC6 models is required to accommodate 20 lbs extinguishers or 2.5 gal water extinguishers. The cabinet is pre-painted flat white, ready to install without additional finishing.

Fields of Application

The EC7 cabinet meets fire protection needs in environments that require larger-format extinguishers. It is particularly suited to warehouses and industrial storage areas requiring a 20 lbs powder extinguisher, server rooms and data centers where CO2 is preferred to avoid equipment damage, commercial and multi-unit residential buildings with water extinguishers, as well as public and institutional spaces subject to fire prevention inspector requirements.

In all these contexts, the cabinet protects the extinguisher from impacts, dust and unauthorized handling, while maintaining the rapid access required by fire prevention codes in Quebec and Canada.

FAQ - Frequently Asked Questions

Is this cabinet suitable for 10 lbs powder extinguishers?

No, the EC7 is sized for larger extinguisher formats: 2.5 gal water, 10 lbs CO2 or 20 lbs powder. For a 10 lbs powder extinguisher, see the EC6 (semi-recessed painted), EC6FR (fully recessed painted) or EC6ST (semi-recessed stainless steel for food industry) models.

Is the panel included?

Yes. Unlike the EC6ST and EC6FR models which require a custom-cut glass pane, the EC7 ships with its transparent bubble (moulded) panel included. No additional steps are needed to complete the front window installation.

Can this cabinet be installed on a wall less than 4 inches deep?

This cabinet is designed for walls with a 4-inch depth and a 1-inch return. For shallower walls, a surface-mounted installation or structural adaptation may be required. Consult a qualified installer to assess the options available based on the building's configuration.

Complementary Suggestions for Fire Protection

Looking for complementary fire safety equipment to go with this large-format cabinet; also see the painted semi-recessed 10 lbs cabinet (EC6), the fully recessed painted 10 lbs cabinet (EC6FR), the stainless semi-recessed 10 lbs cabinet (EC6ST), the painted semi-recessed 5 lbs cabinet (EC5), the stainless semi-recessed 5 lbs cabinet (EC5ST), the recessed fire hose cabinet (BC100), the surface-mounted fire hose cabinet (BC101) and the acrylic panel glass clips kit (EFCLIP).

Under « Accessories » at the bottom of the page.

Looking for more fire protection equipment, see the EC6 cabinet for 10 lbs extinguishers cabinet (EC6), the EC6ST stainless cabinet for food environments cabinet (EC6ST) and the EFCLIP acrylic panel glass clips (EFCLIP).
