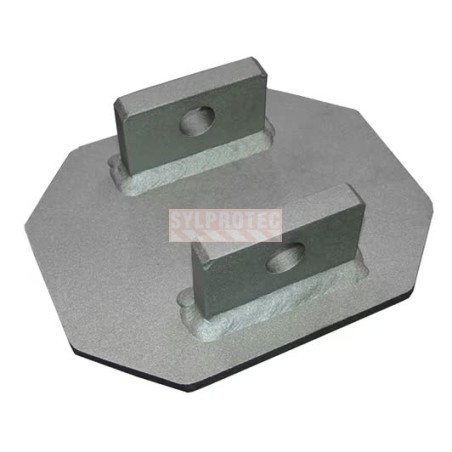

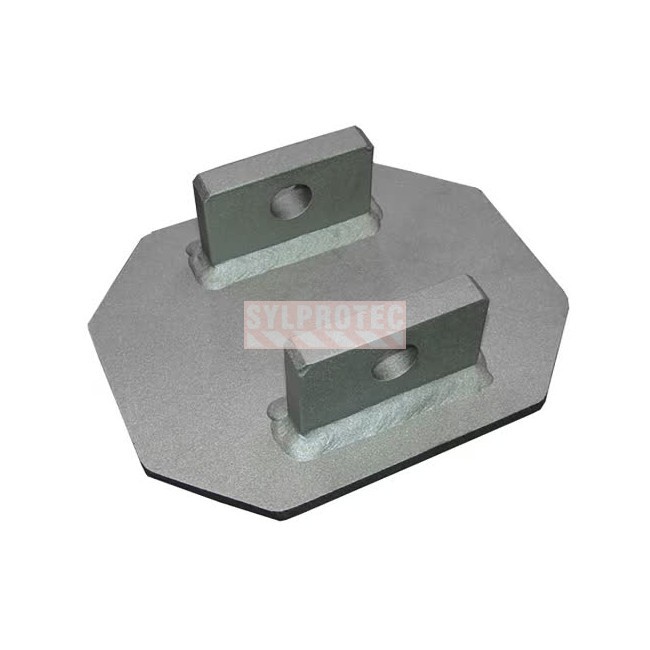

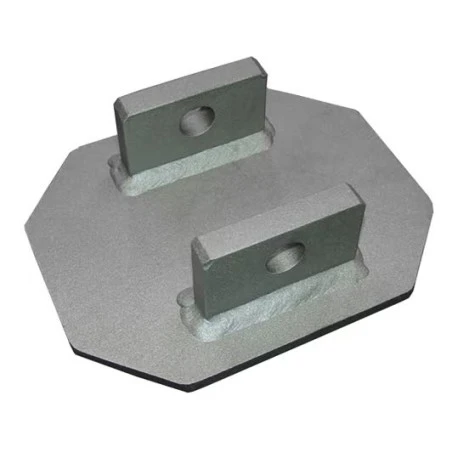

Uni-Anchor fall protection post base DBI-SALA 3M permanent bolt-on for concrete, zinc-plated steel, model 8519819

Uni-Anchor fall protection post base DBI-SALA 3M 8519819 permanent bolt-on for concrete, zinc-plated steel, 15 in x 12 in

3M purchase code: 7012263040, model: 8519819

The Uni-Anchor fall protection post base by DBI-SALA 3M is a permanent anchor point that bolts onto a concrete or steel surface to receive a multi-clamp post. Its zinc-plated steel construction, robust and corrosion-resistant, ensures durability and reliability while keeping a compact, lightweight design. It serves as the anchor foot for an individual fall protection system or a horizontal lifeline.

Benefits of the Uni-Anchor post base for concrete

• Permanent bolt-on anchor point for concrete or steel
• Receives a multi-clamp anchor post
• Robust, corrosion-resistant zinc-plated steel construction
• Compact and lightweight design
• Anchor plate of 15 in x 12 in (381 mm x 304.8 mm)
• Designed for use with other individual fall protection systems

Technical specifications of the zinc-plated Uni-Anchor base

• Product type: permanent bolt-on anchor post base
• Material: zinc-plated steel (gold finish)
• Load capacity: 141 kg (310 lb)
• Plate dimensions: 15 in x 12 in (381 mm x 304.8 mm)
• Installation type: permanent, bolted on concrete or steel
• Compliance: 29 CFR OSHA 1910.140 and 1926.502

Capacity and use of the Uni-Anchor base for anchor post

Capacity is 141 kg (310 lb). The base bolts permanently onto a concrete slab or steel structure and receives a multi-clamp anchor post. It does not form a fall protection system on its own: it serves as the anchor foot and is used with a post, a lifeline and appropriate connectors. It is recommended for construction, general industry, mining, oil and gas, and utilities. Always have the design and verification of the system carried out by a competent person or engineer, per the applicable provincial regulation.

Inspection of the Uni-Anchor base before each use

Before each use, visually inspect the base, the anchor plate, the fastening bolts and the connection points for any sign of corrosion, deformation, cracking or wear. Remove any damaged component from service. A formal inspection by a competent person must be performed at the frequency required by regulations and the manufacturer.

Maintenance and corrosion protection of the Uni-Anchor base

Keep the base clean and dry. Clean it with water and mild soap, then air dry away from direct heat. The zinc-plated finish resists corrosion well in normal outdoor use.

FAQ about the Uni-Anchor post base

On which surfaces can the base be bolted?

On concrete or steel surfaces; installation is permanent, by bolting on the anchor plate.

Is the anchor post included?

No. The base receives a multi-clamp post that is ordered separately.

What is the capacity?

Load capacity is 141 kg (310 lb), compliant with OSHA 1910.140 and 1926.502.

Complementary fall protection equipment suggestions for anchor base

The installer who bolts this post base onto a concrete slab prepares a permanent anchor point that will serve as the foot of a fall protection system. To work safely on the structure, he wears his personal protective equipment: a full DBI-SALA harness (FPH140103XCAP) tied to his energy-absorbing lanyard (FPL5400), cut-resistant gloves (G378GKGVBE), safety glasses (YA11329), a protective helmet (TA80) held by its chin strap (TA80CS), a high-visibility vest (V6935) and earplugs (OA1101).

This base is a component that receives an anchor post: it integrates into a horizontal lifeline system. Pair it with the SecuraSpan end stanchions (FPLH74000XX) to build the span, and mark off the ground work zone with warning tape (ECT3YE1).
