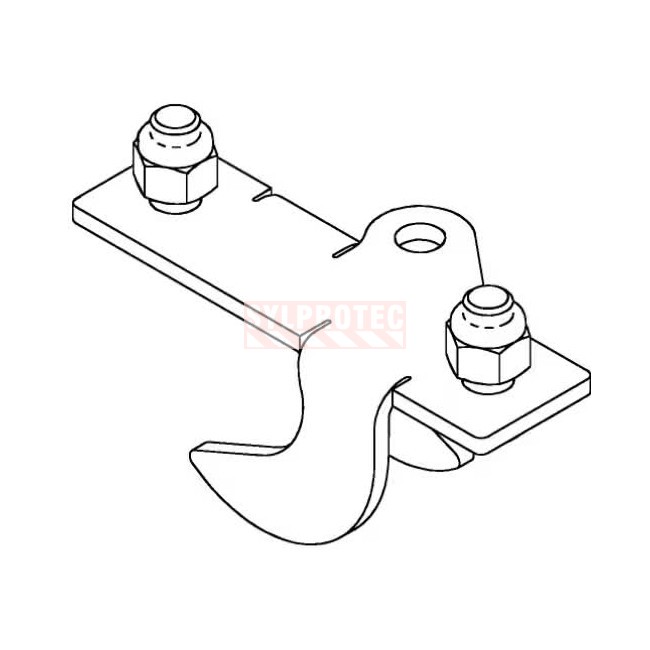

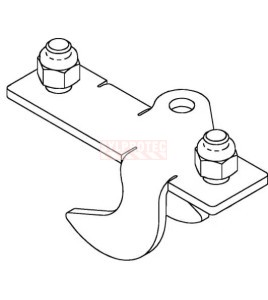

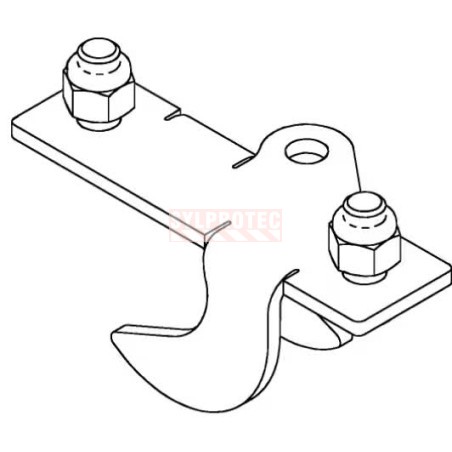

SecuraSpan DBI-SALA 3M 7400089 intermediate bracket for perpendicular I-beam horizontal lifeline stanchion, steel

SecuraSpan DBI-SALA 3M 7400089 intermediate bracket for perpendicular I-beam horizontal lifeline stanchion, steel

3M purchase code: 7100220292, model: 7400089

The SecuraSpan intermediate bracket by DBI-SALA 3M is a component of a temporary horizontal lifeline installed on a perpendicular I-beam. It supports the stanchion along the span and allows the lifeline to run through continuously (pass-thru 100% tie-off protection at all times). Its steel construction provides strength and durability from one jobsite to the next, and it ships with its mounting hardware to bolt onto an existing SecuraSpan stanchion. It is part of the modular SecuraSpan system assembled with the end stanchions, tensioned cable and energy absorber, for spans up to 60 ft (18.3 m).

Benefits of the SecuraSpan steel intermediate bracket

• Component of a temporary horizontal lifeline for a perpendicular I-beam
• Supports the stanchion along the span
• Lifeline runs through continuously: pass-thru 100% tie-off protection at all times
• Mounting hardware included to bolt onto an existing stanchion
• Modular, lightweight and portable design
• Strong and durable steel construction
• Compatible with SecuraSpan system components and lengths

Technical specifications of the SecuraSpan I-beam bracket

• Product type: intermediate bracket for a perpendicular I-beam horizontal lifeline
• Material: steel
• Mounting hardware included
• Maximum system span: up to 60 ft (18.3 m)
• Installation type: temporary and portable
• Dimensions: 3.5 x 11.1 x 10.5 in (height x width x length)
• Weight: 2.0 lb (0.9 kg)
• Cable and absorber: order separately

Capacity and use of the horizontal lifeline bracket

This component does not form a fall-arrest system on its own: it is part of a complete assembly comprising the lifeline beam, an energy absorber, a connector and a harness. Always have the design and verification of the system carried out by a competent person or engineer, per the applicable provincial regulation. The system is designed for a worker with a maximum weight of 310 lb (141 kg) including equipment. Product intended for industrial and occupational use (compliant with applicable OSHA and ANSI requirements).

FAQ about the SecuraSpan 7400089 intermediate bracket

Does this part form a system on its own?

No. It is a component of the modular SecuraSpan system that combines with the end stanchions, tensioned cable and energy absorber to form a complete horizontal lifeline.

What is the intermediate bracket for?

It supports the horizontal lifeline stanchion along the span to maintain the alignment and stability of the system on the beam, while letting the lifeline run through continuously.

Is the mounting hardware included?

Yes. The bracket ships with its mounting hardware to bolt onto an existing SecuraSpan stanchion. The tensioned cable and energy absorber, however, are ordered separately.

What span can the SecuraSpan system cover?

The modular SecuraSpan I-beam system allows spans up to 60 ft (18.3 m) between the end stanchions; the intermediate brackets support the line along that span.

Are the cable and absorber included?

No. The part is sold individually; the tensioned cable, energy absorber and other SecuraSpan components are ordered separately.

Complementary fall protection equipment suggestions

The structural steel ironworker who installs this horizontal lifeline works at height, exposed to the void. A wrong move or unsuitable equipment is enough to turn a routine maneuver into a serious fall. On this type of job site, he wears his full personal protective equipment: a full DBI-SALA harness (FPH140100XCA) tied to his self-retracting lifeline (FPLR3101507) or to his energy-absorbing lanyard (FPL5400), cut-resistant gloves (G120), safety glasses (YA3300), a helmet (TA14OR) retained by its chinstrap (TA14CS), a high-visibility vest (V6673) and earplugs (OA101).

This component is part of a horizontal lifeline system: pair it with the complete temporary horizontal lifeline system (FPLVH) with tensioned cable and energy absorber, along with the SecuraSpan end stanchions (FPLH74000XX) to form a complete span. Also plan a height rescue device (FPLR550) to evacuate a suspended worker, and mark off the ground zone with warning tape (ECT3YE1).
