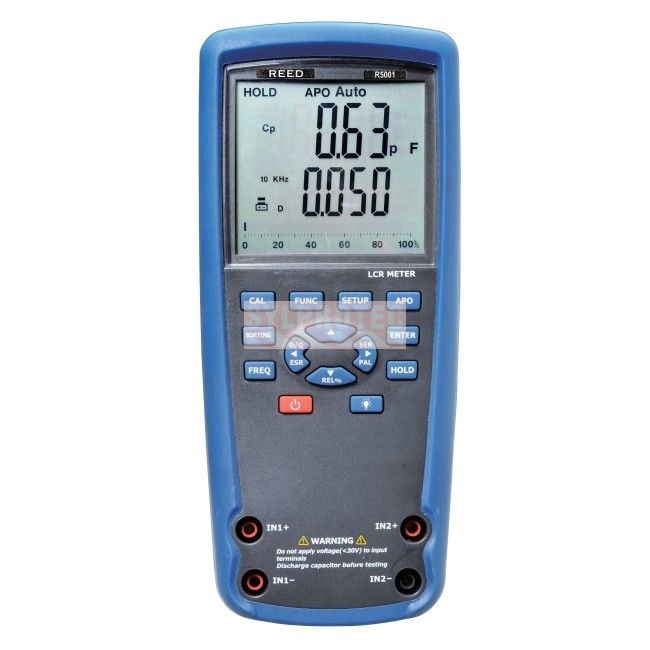

R5001

LCR Meter, measure inductance/capacitance/resistance.

$327.80

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page.

LCR Meter.

Features:

  • Measure inductance/capacitance/resistance with secondary.
  • Parameters including dissipation factor (D), quality factor (Q), phase angle (Ø), equivalent series/parallel resistance (ESR or Rp).
  • Autoranging operation for AC impedance and DE resistance measurement.
  • Auto LCR smart check and measurement.
  • Series/Parallel modes.
  • Ls/Lp/Cp with D/Q/Ø/ESR parameters.
  • Support DCR mode 200 to 200MΩ.
  • High accuracy with 4 or 5 terminal Kelvin measurement.
  • Testing frequency is up to 10 kHz and output frequency is up to 100 kHz.
  • Dual display with backlight.
  • Data hold function.
  • Dust and water proof to IP67.
  • Includes test leads and batteries.

Specifications:

Inductance Range: 2000.0μH/20.000/200.0/2000.0mH/20.000/200.00/2000.0H.
Capacitance Range: 2000.0pF/20.000/200.00/2000.0nF/20.00/200.00/2000μF.
Resistance Range: 20.000/200.00Ω/2.0000/20.000/200.00kΩ/2.0000/20.000/200.0MΩ.
Test Frequencies: 100/120/1k/10k/100k Hz.

Type of product Safety equipment
Main category Industrial accessoiries
Sub category Precision instruments by reed
Sub sub category Electrical
Product code R5001
Approved/Certified Certification CE
Manufacturer Reed Instruments
Includes Test leads and probes, tweezers, alligator clips and batteries
Height (in/cm) 3 in / 7.6 cm
Length (in/cm) 10 in / 25.4 cm
Width (in/cm) 7.25 in / 18.4 cm
Weight (lb/kg) 2.3 lbs / 1 Kg
Measurement functions Inductance, capacitance and resistance with test frequency up to 100kHz.
Return conditions No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page.
