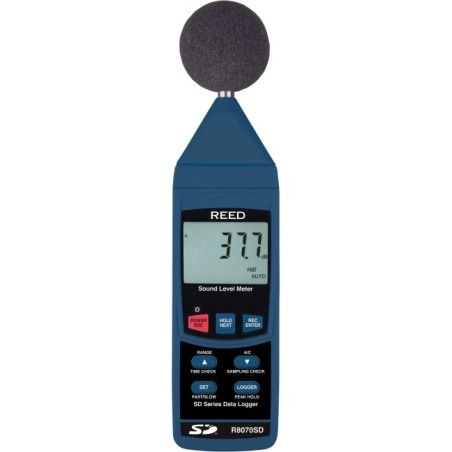

Sound Level Meter and Data Logger. View larger

R8070SD

Sound Level Meter and Data Logger.

$422.15

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Add to Compare

Sound Level Meter and Data Logger.

Features:

  • High accuracy of ±1.0dB to 1kHz meets Type 2 standards
  • Triple range measurement (50dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Real-time data logger with integrated SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Peak hold, Data hold and Min/Max hold
  • Easy-to-read backlit LCD display
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off
  • The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.

Specifications:

Measuring Range: 30 to 130dB.
Frequency Weighting: A: Human Ear Listening; C: FLAT Response.
Time Weighting: Fast: 125ms; Slow: 1s.
Frequency Range: 31.5 Hz to 8 kHz.
Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 sec.

Accessories available to complete your purchase:

(R8090): Sound Level Calibrator.
SB01: Wind Shield Ball.
(SD4GB): 4GB SD Memory Card.
(USB01): USB Cable.
(SWU801WIN): Data Acquisition Software.
(CA05A): Soft Carrying Case.
(R1500): Tripod

Type of productSafety equipment
Main categoryIndustrial accessoiries
Sub categoryPrecision instruments by reed
Sub sub categoryHealth and safety
Product codeR8070SD
Approved/CertifiedMeets CE, IEC 61672-1-2013, Class 2
ManufacturerReed Instruments
FeaturesTriple range measurement (50dB dynamic range)
Additional FeaturesReal-time data logger with integrated SD memory card
Comfort featuresTripod mount for long-term monitoring
IncludesData Logging Sound Level Meter, Windshield Ball, Soft Carrying Case et Batteries
Power supply requirements6 x AA Batteries or AC Adapter (optional)
Length (in/cm)10.5 in / 26.67 cm
Width (in/cm)5.75 in / 14.6 cm
Height (in/cm)2.5 in / 6.3 cm
Weight (lb/kg)1.3 lb / 0.58 Kg
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
CautionTripod not included. SD memory card (optional)

R8070SD_FR

Download (670.94k)

R8070SD_EN

Download (667.12k)

R8070SD_Manuel

Download (1.15M)

R8070SD_Manual

Download (1.98M)
