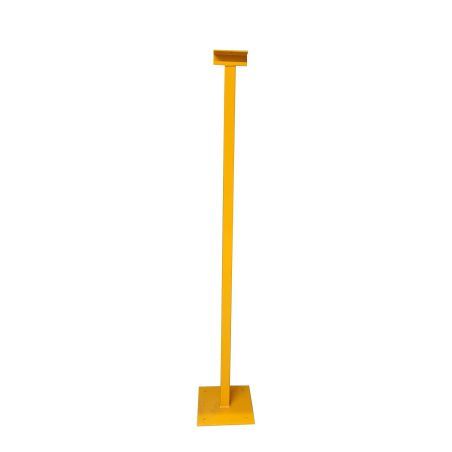

Extra durable 2 X 2 in post for industrial curtain systems

Extra durable 2” by 2” post for industrial curtain systems

The AGCG110 post is an extra durable post designed to support industrial curtain rails in demanding environments. Made of sturdy 2” by 2” steel, it ensures optimal stability for the rail system, whether for welding stations, containment areas, or industrial partitions.

The height of the post must be specified when ordering, depending on the configuration of your space and the desired final height of the curtain.

Features of a reinforced vertical support

• 2” by 2” square section offering excellent rigidity
• Extra durable design for heavy industrial use
• Custom height, up to a maximum of 10 feet
• Perforated base plate for secure floor mounting
• Head designed to directly accommodate the system rail

Properties of rail support posts

• Recommended spacing: maximum of 1 post every 10 feet
• Ensures alignment and stability of the rail along its entire length
• Compatible with AGCG100 extra-durable rails
• Structure designed to support the weight of the rail, rollers, and curtain

Applications of the industrial curtain post

This post is used in industrial curtain systems for:

• Welding stations
• Containment areas (dust, splashes, heat)
• Work area separations
• Fixed or semi-permanent installations in industrial environments

Ideal when ceiling installation is not possible or desired.

Restrictions for structural elements

A maximum height of 10 feet is permitted, and an AGCG110 post is required at least every 10 feet.

The floor mounting surface must be flat and sufficiently strong, and installation must be performed by qualified personnel.

Maintenance and service life of the long-lasting steel post

This post does not require any special maintenance.

Occasional cleaning helps maintain good visibility and prevent the accumulation of industrial dust. When used under normal conditions, the AGCG110 post has a very long service life, equivalent to that of the rail and other system components.

💡 Calculating the height of the curtain

To determine the height of the curtain :

➡️ Measure the height from the floor to the top of the post, then subtract 7 inches. See the photo attached to the product.

FAQs about support posts for industrial curtains

What is the purpose of the AGCG110 post in an industrial curtain system?

The AGCG110 post serves as a vertical support to hold the curtain rail when ceiling installation is not possible or when long lengths require intermediate support.

How far apart should I install the posts?

It is recommended to install a post at a maximum of every 10 feet to ensure the stability of the track and prevent bending.

 What height of the post should I order?

The height of the post depends on your installation. To correctly calculate the height of the curtain, measure from the floor to the top of the post, then subtract 7 inches. The maximum height of the post is 10 feet. See the photo attached to the product.

Is the post adjustable on site?

No. The height must be specified when ordering. The post is delivered at the requested size to ensure safe and compliant installation.

Can the post be mounted on any floor?

The post must be mounted on a flat, solid, structural surface (concrete or equivalent structure) using appropriate anchors.

Compatible accessories for the industrial curtain system

For a complete and functional installation, the AGCG110 post is compatible with the following accessories:

• AGCG100 - Extra durable aluminum rail, the main element on which the rollers and curtains run.
• AGCG104 - Extra durable fastener for AGCG100 rail allows two lengths of rail to be securely connected to each other.
• AGCG102 - Riveted nylon rollers with S-hooks ensure smooth movement of the curtain on the rail.
• AGFC004 - Translucent green industrial vinyl (14 mils) curtain material used for welding stations, containment, or separation of work areas.

💡 Good to know

When an AGCG100 rail is used with AGCG102 rollers, the total height of the post, rollers, and S-hook is 7 inches. See the photo attached to the product.

 This dimension must be taken into account in the overall calculation of the curtain height.
