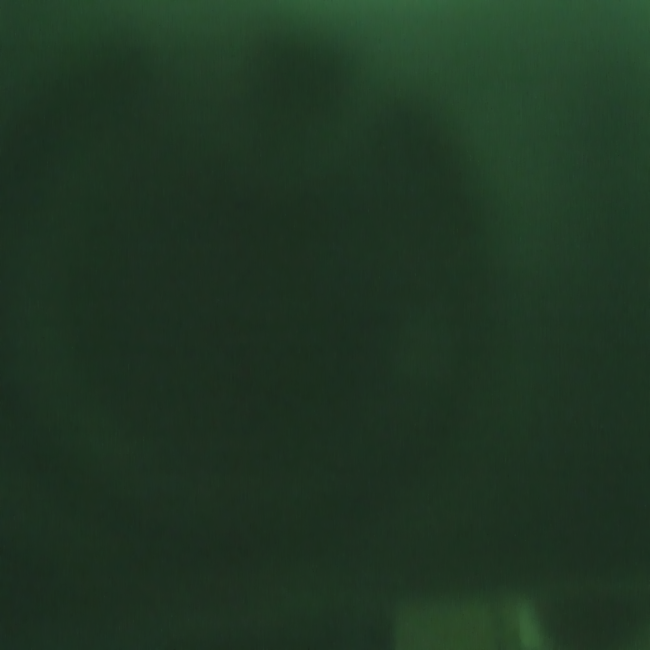

14 mil translucent green vinyl welding station, sold by square foot

14 mil translucent green vinyl for welding stations, sold by the square foot

This translucent green vinyl for welding stations is designed for the manufacture of industrial curtains intended to protect workers from the risks associated with welding.

Made of flexible 14 mil thick vinyl, it provides an effective barrier against harmful light radiation while maintaining partial visibility of the work area.

The material is sold by the square foot and cut to size according to the dimensions provided when ordering.

Minimum order: $75 per type of material.

Special features of the green translucent vinyl sheet

This translucent green welding curtain is specially formulated to absorb the harmful ultraviolet rays generated by welding arcs. Its green tint reduces visual glare (“flashes”) while improving visual comfort for workers located near welding operations.

During assembly, vinyl grommets are installed every 12 inches, allowing for stable and secure installation.

Properties of flame-resistant 14 mil vinyl materials

• Thickness: 14 mils (0.3556 mm)
• Material: Translucent green vinyl
• Flame resistant

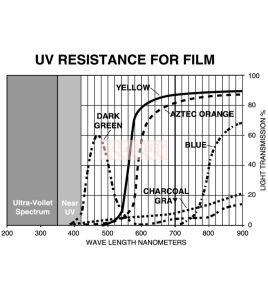

• Absorbs harmful UV rays
• Complies with OSHA requirements
• Complies with the California Fire Marshal CPAI-84 standard (registration F191)
• Sold by the square foot
  • 1 ft² = 12 in x 12 in = 144 in²
  • 1 ft² = 30.5 cm x 30.5 cm = 930.25 cm²

Applications of a protective curtain for TIG and MIG welding

• TIG and MIG welding stations
• Industrial welding booths
• Separation of work areas
• Metal fabrication and assembly shops

It secures the work environment while protecting adjacent employees from light flashes and UV radiation.

Restrictions on the use of custom welding station vinyl

This green vinyl industrial curtain is intended exclusively for welding applications. It must not be used as mechanical protection against solid projections, impacts, or aggressive chemicals that are not compatible with PVC. The dimensions and location of the eyelets must be specified when ordering, as the product is cut to size and cannot be returned.

Maintenance and lifespan of the translucent welding curtain

This vinyl material for welding curtains requires little maintenance. Periodic cleaning with a soft cloth and mild soap is sufficient to preserve its transparency and protective properties.

The lifespan depends on the conditions of use, exposure to welding arcs, and how often the curtain is handled.

Important information for ordering

1. The final dimensions of the curtain (width and height)
2. The location of the eyelets:

• • only at the top of the curtain, or
  • around the entire perimeter of the curtain

📞 For a precise configuration or a complete estimate for your project, contact our customer service department.

FAQs about green translucent vinyl for welding stations

1. Why choose green vinyl for a welding station?

Green translucent welding vinyl is valued for its ability to attenuate flashes of light while maintaining good peripheral visibility. Its green tint helps reduce eye strain in workshops where welding operations are frequent.

2. Does this vinyl protect against ultraviolet rays?

Yes. This 14-mil vinyl protective curtain is formulated to absorb the harmful UV rays generated by welding processes, thereby limiting the risks to nearby workers.

3. Does this material comply with safety standards?

Absolutely. This translucent welding vinyl exceeds OSHA requirements and meets the criteria of California Fire Marshal CPAI-84 (registration F191), ensuring flame resistance suitable for industrial environments.

4. How are the grommets arranged on the curtain?

During assembly, vinyl grommets are placed every 12 inches. When ordering, you must specify whether you want grommets:

• Only at the top of the curtain,
• Around the entire perimeter of the curtain, or
• Others

5. Is this product sold in standard sizes or custom sizes?

This vinyl for welding stations is sold by the square foot and cut to size. You must specify the final width and height of the curtain when ordering.

A minimum order of $75 per type of material applies.

Suggested complementary products for 14 mil thick translucent green vinyl

Do you need complementary safety equipment? See the following items: translucent yellow vinyl, thickness 14 mil (AGFC001), translucent orange vinyl, thickness 14 mil (AGFC002), grade 8 dark green vinyl (AGFC005), 14 mil PVC weld curtains, two-tone dark green (grade 8) and yellow (AGFC006).

Under “Accessories” at the bottom of the page: curtain hook (AGCG001), extra durable aluminum rail (AGCG100), extra durable 2 in. x 2 in. post (AGCG110), the 90-degree elbow (AGCG101) and the super roller for projects involving heavy curtains (AGCG103).

The texts highlighted in green correspond to hyperlinks leading to specific safety equipment or to general information links.
