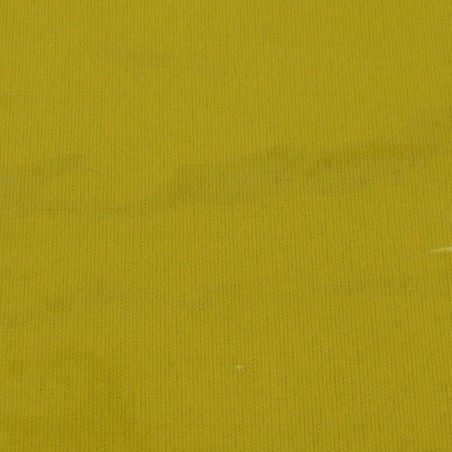

14 mil translucent yellow vinyl for welding station

14 mil translucent yellow vinyl for welding stations - sold by the square foot

This translucent yellow vinyl for welding stations is intended for the manufacture of industrial protective curtains used in welding environments.

Made of flexible 14 mil thick PVC, it provides an effective barrier against hazardous light radiation while maintaining controlled visibility between work areas.

The material is sold by the square foot and cut to size according to the dimensions provided at the time of ordering.

A minimum order of $75 per type of material applies.

Special features of yellow translucent protective sheets

The translucent yellow tint of this welding curtain promotes good ambient light while reducing the visual impact of welding flashes. This compromise between filtering and light transmission makes it a popular choice in workshops where visual monitoring and safe traffic flow are important.

Vinyl grommets, installed every 12 inches, allow for stable suspension on rails, cables, or fixed structures.

Properties of flame-resistant 14-mil PVC vinyl

• Thickness: 14 mils (0.3556 mm)
• Material: Translucent yellow PVC
• Flame resistant
• Absorbs harmful ultraviolet rays
• Reduces glare from welding arcs
• Complies with and exceeds OSHA requirements
• Complies with California Fire Marshal CPAI-84 standard
  • Registration number: F191

Area conversion:

• 1 ft² = 12 in × 12 in = 144 in²
• 1 ft² = 30.5 cm × 30.5 cm = 930.25 cm²

Applications for TIG and MIG welding safety screens

• Delimit welding stations
• Protect nearby workers from UV rays
• Reduce glare and light flashes
• Create flexible partitions in industrial workshops

It is suitable for both temporary and permanent installations.

Restrictions for custom industrial curtain material

This yellow welding vinyl is designed for visual and UV protection, but should not be used as a mechanical barrier or protection against solid impacts.

As it is made to order, the product is non-returnable. The final dimensions and eyelet configuration must be confirmed before production.

Maintenance and lifespan of a yellow translucent welding curtain

Maintaining this industrial PVC curtain is simple: regular cleaning with a soft cloth and mild soap is sufficient.

The lifespan depends on the intensity of welding operations, exposure to heat, and how often the curtain is handled.

Important information for ordering a custom-made curtain

When ordering, please be sure to indicate:

1. The final dimensions of the curtain (width and height)
2. The location of the eyelets:

• • at the top of the curtain, or
  • around the entire perimeter of the curtain

📞 To confirm your configuration or obtain a complete estimate for your project, contact our customer service department.

🧭 Help with choosing: Which industrial curtain material should you choose?

Before adding this product to your cart, make sure it is suitable for your application and safety requirements.

🔥 For welding (TIG, MIG, arc)

✔ Recommended if you need to:

• Protect against UV and infrared rays
• Reduce glare (welding flash)
• Maintain good visibility in the workshop

👉 Recommended materials: 14 mil welding vinyl / Grade 8

👉 Most commonly used colors: Green (versatile), orange (high brightness)

🔥 For heat and metal splashes

✔ Recommended if your environment has:

• High temperatures
• Sparks or molten metal splashes
• Significant thermal risk

👉 Recommended materials: Agotex, Heatstop, fiberglass, Kevlar

⚠️ Opaque materials: protection takes precedence over visibility.

🧪 For chemical or oily environments

✔ Recommended if you work with:

• Industrial oils
• Solvents
• Chemicals or corrosive products

👉 Recommended materials: 13 mil reinforced vinyl with polyester mesh

✔ Easy to clean and durable.

❄️ For cold and drafts

✔ Recommended for:

• Insulating heated areas
• Reducing heat loss
• Limiting drafts and dust

👉 Recommended materials: Clear vinyl, vinyl strips, overlapping curtains

🎨 Which color should you choose?

• 🟢 Green: best visual comfort, most commonly used in welding
• 🟠 Orange: excellent UV filtration
• 🟡 Yellow: increases brightness in dark areas
• 🔵 Blue: reduces visual fatigue
• ⚫ Opaque: maximum protection (heat/spatter)

📏 Good to know before ordering

• Materials sold by the square foot
• Minimum order of $75 per type of material
• To be specified when ordering:
  • Final width and height
  • Location of eyelets (top or perimeter)

FAQs about yellow translucent vinyl for welding stations

1. Why choose yellow vinyl for a welding station?

Yellow translucent welding vinyl is particularly popular for its high brightness. It clearly delineates welding areas while maintaining high visibility in the workshop, which improves traffic flow and vigilance around workstations.

2. Does this vinyl provide effective protection against UV rays?

Yes. This 14 mil PVC welding curtain is specially formulated to absorb the dangerous ultraviolet rays produced during welding, reducing the risks for workers indirectly exposed to the welding arc.

3. Does yellow vinyl comply with safety standards?

Absolutely. This translucent vinyl for welding stations exceeds OSHA requirements and complies with California Fire Marshal CPAI-84 (registration F191), certifying its flame resistance.

4. How should I choose the location of the grommets?

The vinyl grommets are installed every 12 inches during assembly. When ordering, you must specify whether you want:

• Grommets only at the top of the curtain, for suspension on a rail or cable, or
• Grommets around the entire perimeter, for a more rigid attachment or complete framing.

5. Is the vinyl sold in standard or custom sizes?

This yellow welding vinyl is sold by the square foot and cut to your specifications (width and height). A minimum order of $75 per type of material applies, and the product is non-returnable once manufactured.
