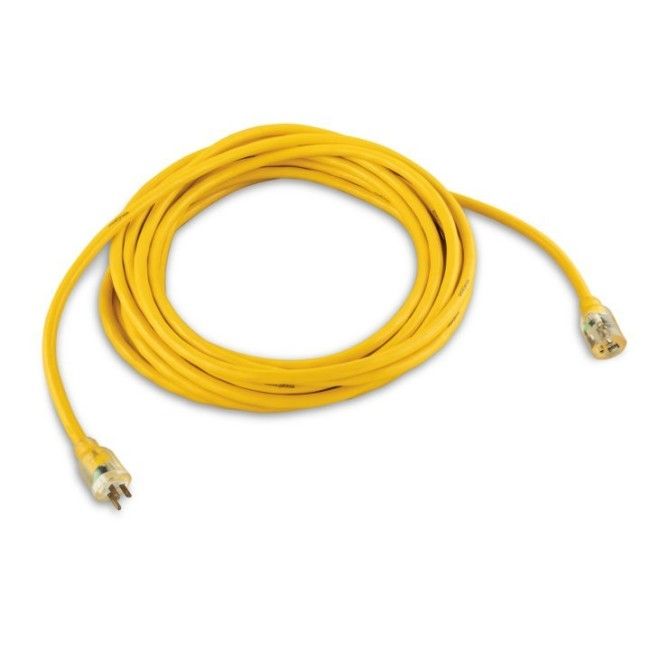

Heavy duty extension cord 50 ft / 15.24 m, 12/3 AWG, 15 A / 120 V, weatherproof, NEMA 5-15 connection

Heavy Duty 50 ft Extension Cord — 15 A / 120 V, 12/3 AWG, for Standard Blowers

The Allegro heavy duty yellow extension cord, 50 ft / 15.24 m, is designed to reliably power the standard fans and blowers used during confined space work. It operates at 15 A / 120 V with a 12/3 AWG wire gauge and is weather resistant across a temperature range of -40°F to 140°F (-40°C to 60°C). Its outer jacket is flame, water and oil resistant while remaining flexible on the job site. This cord meets OSHA specifications and is UL compliant. It is ideal for use with standard fans or blowers such as the RA9539-12 fan and the RA9533-15 and RA9533-25 models. Allegro Industries manufacturer's code: 9540-50.

Important: this cord is not explosion-proof. It must never be used in an explosive atmosphere or to power an explosion-proof blower. For spaces classified as explosion hazards, use the appropriate explosion-proof version instead (RA9540-50EX in 125 V or RA9540-60EX in 220 V).

Cord Specifications

• Length: 50 ft / 15.24 m
• Wire type: 12/3 AWG
• Maximum amperage: 15 A
• Voltage: 120 V
• Male connector: NEMA 5-15P
• Female connector: NEMA 5-15R
• Approval: OSHA compliant and meets UL requirements
• Operating temperature: -40°F to 140°F (-40°C to 60°C)
• Flame, water and oil resistant jacket
• Weight: 5.9 lb / 2.68 kg
• Color: yellow with a black line

Advantages of the RA9540-50 Extension Cord for Your Confined Space Work

Built to Power Ventilation Blowers

When a fan or blower must be installed at the entrance of a confined space, the power source is often several meters away. This 50 ft cord lets you position the blower correctly without compromising electrical safety. Its 12/3 AWG gauge ensures minimal voltage drop over the full length, so the blower motor receives the power it needs to maintain its rated airflow.

Rugged for Job Site Use

The outer jacket resists flames, water and oil, and stays flexible even in cold weather down to -40°F. This heavy duty construction withstands the harsh conditions of industrial, municipal and construction sites, where the cord is frequently moved, stepped on or exposed to the elements.

OSHA and UL Compliance

This cord is OSHA compliant and meets UL requirements, making it a suitable choice for regulated professional use. The yellow color with a black line provides good ground visibility, reducing the risk of tripping on the work site.

FAQ — Allegro RA9540-50 50 ft Extension Cord

Can this cord be used in a confined space with an explosion risk?

No. The RA9540-50 is a standard, non-explosion-proof cord. In an explosive atmosphere, its connectors could produce an ignition spark. Use the explosion-proof cord in 125 V (RA9540-50EX) or the 220 V version (RA9540-60EX), designed for these classified environments.

Which blowers can this cord power?

It is suitable for standard 120 V fans and blowers rated at 15 A or less, such as the 12" axial fan (RA9539-12) and the compact 8" axial blower (RA9533). Always check the rated amperage of your device.

Can two extension cords be connected together?

It is possible to join two cords of the same gauge, but you must then monitor the total voltage drop and never exceed the 15 A rated amperage. For long distances, prefer a single cord of the right gauge rather than several cords in series.

Complementary Equipment Suggestions for Your Confined Space Ventilation

To complete your ventilation setup, first see the 12" axial fan with polyethylene shell (RA9539-12) and the compact 8" axial blower (RA9533) that this cord ideally powers. Add the 8" flexible duct (RA9500) or the 12" model (RA9550) depending on your blower diameter, as well as the manhole entry airflow assembly (RA9510).

Under "Accessories" at the bottom of the page, complete your equipment with the Altair 4X 4-gas detector (DETEC4GC) to check the atmosphere before entry, the manhole barrier (EPTBB) to secure the perimeter, and the Peakworks 6 D-ring confined space harness (FPH2000APLE) stored in its carry bag (FPBAG).
