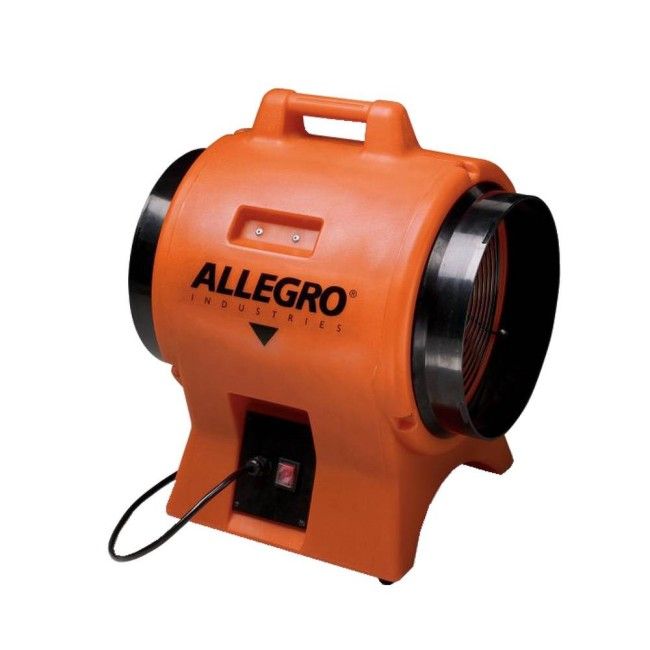

Allegro 12" diameter axial fan with molded polyethylene shell without ducting

12" / 30.4 cm diameter axial fan. This fan model can also be used as an inline booster blower. It has the particularity of being stackable. The flexible duct is not included with this product. You can add a 15- or 25-feet duct (see reference code RA9550-15 or RA9550-25). This fan, also known as a blower, can both extract (purge) or ventilate a confined space depending on the orientation chosen by the user.

Allegro Industries Manufacturer's Code: 9539-12

This type of blower is used to ventilate confined spaces that do not have an explosion hazard. If this is the case, please refer to the following item RA9548-25EX.

In practice, the contaminated gases are extracted first, then a reading is taken with a gas detector equipped with a sampling pump (see DETEC4GC) and if everything is correct, the fan is reversed to push fresh air into the confined space. Because of the hazards of toxic vapours or particles in a confined space, be sure to equip your workers with gas detectors even if you have purged and ventilated the confined space.

The housing is made of lightweight polyethylene and is resistant to corrosion, UV light and most chemicals. This compact blower is super quiet according to the manufacturer. However, it recommends wearing hearing protection for people near the blower in its instruction manual. The blower has six polypropylene blades, a powdered steel grill and a carrying handle moulded into the blower. This fan is also equipped with a single-phase electric motor that meets UL/CSA C22.2 No.113 standards.

The bottom housing provides safe and convenient storage of electrical components. Both sides of the fan are equipped with connection rings to install the ductwork. This makes it easy to switch to exhaust or ventilation mode quickly depending on which side you choose.

Motor part features:

• 1 HP power
• Power supply: 115 Volts AC, 60 Hz, 1 phase
• RPM: 3400 (for 115, 60 Hz)
• Current: 5 amps for 60 Hz
• Power cords: 20 feet / 6.09 m AWG
• Branch Type: NEMA 5-15P

Fan Features:

• Equipped with 6 polypropylene blades
• Generates 2180 cfm / 3703.84 m3/h without ductwork

Installation Tips:

The manufacturer recommends that the fan be installed more than 5 feet away from the hole entrance. To choose the safest location for you. Ensure the wind is flowing in the right direction. When venting the place, so that the fumes disperse with the help of the wind without it returning to you. In the same way during the ventilation, place the blower with your back to the wind. This way you will avoid gas mixtures expelled from the enclosed space.

If you wish to replace your ventilation duct, two lengths are available: 15 feet / 4.57 m or 25 feet / 7.62 m. You will find them under the reference RA9550-15 or RA9550-25. If your blower needs a small repair, you can also consult the list of components under the download tab.

Other equipment frequently used with this blower:

• Confined Space Harness (FPH2000APLE)
• Harness storage bag (FPBAG)
• Tool attachment strap (FPL9900)
• Tripod, Lifeline and Winch Kit (FPLRK3)
• Manhole Barrier (EPTBB)
• Manhole guard (EPTBB)
• 12" diameter manhole vent (RA9510-126, RA9510-1215)
• MSA 4-gas detector and accessory kit (DETEC4GC)
• 15 amp, 125 volt weatherproof extension cord (RA9540-50)

How to select your fan.
In order to choose the right fan, we suggest you use the application developed by Allegro Industries. This application will allow you to select the right fan based on the specific parameters of your enclosed space. To know.

• Dangerousness of the gas, explosive or not
• The size and shape of the space, its volume
• The number of elbows in the duct installation
• And much more...

We suggest that you first read the user's guide for this application (in English only) which you will find at the following Internet address: https://www.allegrosafety.com/how-to-use-our-confined-space-blower-selector/.
Then, you can go directly to the application and download it on your computer or even on your smartphone: https://www.allegrosafety.com/blower-selector/.

The texts colored in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
