Contractor Peakworks harness for ladder, controlled descent and confined space, 6 D-rings class A, P, L, E
FPH2000AELP
$152.55
Peakworks contractor harness with 6 D-rings, class A, P, L, E, for ladders, controlled descent and confined spaces. Universal size, polyester, 400 lb.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Peakworks 6 D-ring class A, P, L, E harness for ladders, descent and confined spaces
The Peakworks contractor harness with 6 D-rings is the most versatile harness in the line, certified class A, P, L and E. It combines 1 dorsal D-ring (A, fall arrest), 2 lateral hip D-rings (P, work positioning), 2 shoulder D-rings (E, recovery and confined-space access) and 1 frontal sternal D-ring (L, ladder climbing and controlled descent). The chest and leg straps are joined by interlocking buckles. It is the ideal choice when a single worker must switch between work at heights, ladder climbing and confined-space entry.
Peakworks product code: V8002060 or model FBH-10000. Meets ANSI Z359.11-2014 and CSA Z259.10-12 requirements. Universal size harness, designed for confined-space work, ladder climbing, controlled descent as well as construction and maintenance work.
This harness can support a worker weighing up to 400 lb (181.4 kg), including clothing, tools and equipment. The shoulder D-rings make it easier to extract a worker from a confined space, while the sternal D-ring secures climbing and descent along a ladder or access system.

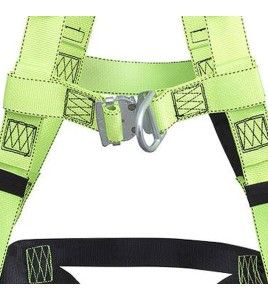

The straps of this harness are made of polyester, a material that offers better resistance to acidic chemicals. The front straps at chest level carry the sternal D-ring used to connect to a ladder. The strap ends have plastic tips to prevent fraying and make adjustment easier, even with gloves. The identification and certification labels are sewn onto the rear strap, on the left side.
Advantages of the Peakworks class A, P, L, E harness
This vest-style harness brings together fall arrest, positioning, climbing and rescue functions in a single piece of equipment.
Versatility and attachment points
- 6 D-rings: 1 dorsal (A), 2 hips (P), 2 shoulders (E), 1 sternal (L)
- Shoulder D-rings for recovery and confined-space access
- Sternal D-ring for ladder climbing and controlled descent
- Universal size fitting most body types
- Polyester straps resistant to acidic chemicals
- Plastic tips on the strap ends to prevent fraying
- Capacity of 400 lb (181.4 kg), including tools and equipment
Job sites and industries where this harness is required
- Confined-space work (tanks, wells, silos, manholes)
- Climbing and descending fixed ladders
- Controlled descent and rescue operations
- Construction, maintenance and industrial upkeep
- Municipal interventions and emergency work at heights
Safety harness inspection
The worker is responsible for performing a routine inspection before each use. The worker must note any sign of degradation, wear, malfunction or breakage, and replace the harness at the first sign of failure.
This harness should also be inspected periodically by a qualified person other than the worker. The frequency varies by manufacturer (from every 90 days to yearly) and should increase in harsh conditions. The recommended lifetime of a harness is 5 years. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a harness inspection service; to learn more, see the Services tab.
Fall arrest harness maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. If your harness is too dirty or contaminated, it is time to replace it. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Peakworks class A, P, L, E harness
What are the 6 D-rings on this harness for?
The dorsal D-ring is for fall arrest, the 2 hip D-rings for positioning, the 2 shoulder D-rings for confined-space recovery and the sternal D-ring for climbing up and down a ladder.
Is this harness suitable for confined spaces?
Yes. The shoulder D-rings are specifically designed to connect a Y-yoke and allow the vertical extraction of a worker from a confined space with a tripod or davit.
What is the size and capacity of this harness?
It comes in universal size and supports a worker with a total weight of 400 lb (181.4 kg), including clothing, tools and equipment.
Suggested complementary products
To complete your fall protection and confined-space operations, also consider a self-locking carabiner (FPAM88), a confined-space kit with winch (FPLRK3), a yoke Y-lanyard (FPLRKL), a davit for confined spaces (FPLRK4), a concrete connector (FPAF075N), a mandatory-use sign (ECO130), a storage bag (FPBAG) and a tool strap (FPLA9900). Under "Accessories" at the bottom of the page.
FPH2000AELP
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Fall protection safety harness
- Name of the product
- Safety harness
- Series of products
- Contractor
- Product code
- FPH2000AELP
- Product use
- Designed for construction work
- Approved/Certified
- Meets the standards ANSI Z359.11-2014 and CSA Z259.10-12
- Manufacturer
- Peakworks
- Country of origin
- China
- Choice of format
- Universal sizes (medium to extra-large)
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The chest and leg straps are joined by interlocking buckles
- Additional Features
- This harness has 5 adjustment points: 2 on the legs, 2 on the torso and 1 on the chest
- Characteristics of metal parts
- Non-painted metal parts
- Post-suspension relief strap
- Does not include trauma straps
- Includes
- With 6 D-rings: 1 dorsal ring, 2 lateral rings for positioning, 2 rings on the shoulders for recovery in enclosed spaces, and 1 frontal (sternal) ring for climbing up and down
- Includes 3
- The ends of the straps have plastic tips to prevent fraying and allow the user to adjust the harness easily even when wearing work gloves
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Classification
- Class AELP — dorsal (A, fall arrest) + shoulders (E, rescue) + sternal (L, climbing) + hips (P, positioning)
- Function of attachment points
- Dorsal D-ring: fall arrest. Sternal D-ring: climbing. Hip D-rings: work positioning. Shoulder D-rings: rescue and confined-space access
- Type of harness
- Vest-style harness
- Material1
- Polyester
- Material2
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 11 in / 27.94 cm
- Width (in/cm)
- 11 in / 27.94 cm
- Height (in/cm)
- 2 in / 5.08 cm
- Weight (lb/kg)
- 4.2 lb / 1.91 kg
- Sold by
- Unit
- Color
- High Visibility Green/Black/Gray
- Another packaging available
- 5 units per box
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker that can wear this harness is 400 lb / 181.4 kg, including clothing, tools, etc
