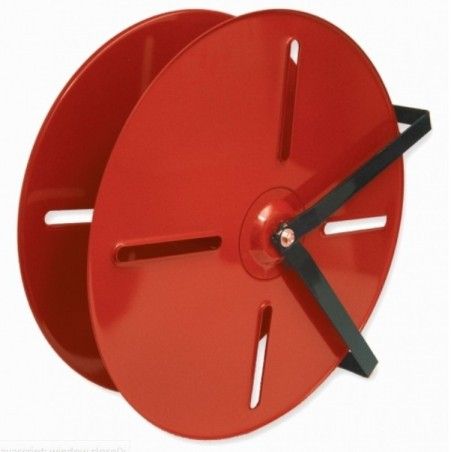

High capacity 24-inch hose reel for 150 feet heavy duty double jacket or rubber hose.
IBD25
$287.60
High-capacity 24 in circular reel in 16-gauge steel for double jacket or rubber hose. 180° swing bracket, up to 300 ft depending on hose type.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
High-Capacity 24 in Circular Reel for Double Jacket or Rubber Hose
The high-capacity 24 in (61 cm) circular hose reel is designed for heavy-duty double jacket or rubber fire hoses, which are sturdier and heavier than standard hoses. Made of robust 16-gauge steel with a red baked-enamel powder coating finish, it offers increased strength for demanding environments. The welded steel mounting bracket allows a 180° swing and fast unwinding of the hose in case of fire.
This reel accommodates both standard hoses and heavier-duty hoses. The maximum hose length depends on its diameter and thickness, as detailed in the table below.
Hose Capacities of the High-Capacity IBD25 Reel
The following table shows the maximum hose lengths by type and diameter :
Maximum hose lengths for the IBD25 hose reel
| For hose diameter 1 1/2 in (38 mm) | |
| Rack hose | 300 feet (91.4 m) |
| Single jacket hose | 200 feet (61 m) |
| Double jacket or rubber hose | 150 feet (45.7 m) |
| For hose diameter 2 1/2 in (64 mm) | |
| Rack hose | 150 feet (45.7 m) |
| Single jacket hose | 100 feet (30.5 m) |
| Double jacket or rubber hose | 75 feet (22.9 m) |
Dimensions and Installation of the IBD25 Reel
The reel dimensions are 29 in width × 24 in height × 8¾ in depth (74 cm × 61 cm × 22 cm). For installation, the hose must be folded in two then inserted in the centre of the reel ; when the supply valve is above the reel, the coupling must be above the nozzle, otherwise invert their positions.
Robust 16-Gauge Construction
The 16-gauge steel and the welded bracket give this reel superior strength, suited to heavy double jacket or rubber hoses.
Buildings and Sectors Where This Reel Is Used
This high-capacity reel is particularly suited to :
- Industrial sites and factories with heavy-duty hoses.
- Warehouses and distribution centres.
- Commercial buildings requiring long hose runs.
- Municipal and technical facilities.
FAQ About the High-Capacity IBD25 Reel
What is the difference between the IBD25 and the standard 24 in reel ?
The IBD25 is made of sturdier 16-gauge steel and accepts double jacket or rubber hoses, unlike the standard 24 in reel (IBD24).
What hose length can I install ?
It depends on the hose diameter and type : up to 300 ft for a 1½ in rack hose, and up to 75 ft for a 2½ in double jacket hose. See the capacity table above.
Does the reel swing ?
Yes, the welded steel bracket allows a 180° swing for easy access to the hose.
Suggested Complementary Equipment for Fire Hose Stations
To set up a complete fire hose station, see also a protective cover (IBC100), a standard 24 in model (IBD24), a compact 18 in model (IBD18), a hydrant cover (CEBORA), a combination wrench (ICC250H), a universal spanner (ICC15), a threaded plug (ICC150), a recessed cabinet (BC100). Under "Accessories" at the bottom of the page.
IBD25
Data sheet
- Product group
- Safety equipment
- Main category
- Fire protection
- Sub category
- Fire hoses and accessories
- Product code
- IBD25
- Material
- 16-gauge steel
- Length (in/cm)
- 28 in / 71.1 cm
- Width (in/cm)
- 26 in / 66.04 cm
- Height (in/cm)
- 9 in / 22.9 cm
- Weight (lb/kg)
- 28 lb / 12.7 Kg
- Color
- Red
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
