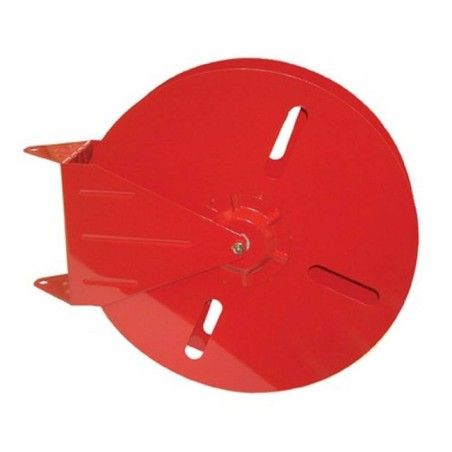

24-inch circular hose reel, for 150 ft rack fire hoses or 100 ft single-jacket hoses.

24 in Circular Hose Reel for 150 ft Fire Hose

The 24 in (61 cm) diameter circular hose reel is designed to store and quickly deploy 1½ in fire hoses. It is suitable for rack fire hoses up to 150 ft (45 m) long and single jacket hoses up to 100 ft (30.5 m) ; it is not recommended for heavy-duty double jacket hoses. Compact, fast-unwinding and solidly built, it requires no assembly on delivery.

Its finish is a corrosion-resistant red baked-enamel powder coating. The 14-gauge steel wall bracket allows the reel to swing 180°, which makes it easy to access the hose from any response angle.

Features and Dimensions of the 24 in Reel

The reel dimensions are 29 in width × 24 in height × 6¼ in depth (74 cm × 61 cm × 16 cm), making it a versatile model for most standard hose stations.

Construction and Finish

The 14-gauge steel bracket ensures a solid wall mount, while the red baked-enamel powder coating protects the reel against corrosion in damp environments.

Buildings and Sectors Where This Reel Is Used

This 24 in reel suits many environments :

• Commercial and institutional buildings with fire hose stations.
• Factories, warehouses and industrial sites.
• Indoor parking lots and service areas.
• Municipal facilities and residential buildings.

Hose Installation on the Reel

The fire hose must first be folded in two, then inserted in the centre of the reel. When the water supply valve is above the reel, the hose coupling must be above the nozzle ; otherwise, invert the positions of the coupling and the nozzle. No special tool is required to set up the hose.

FAQ About the 24 in Circular Reel

Which hoses does this 24 in reel accept ?

1½ in rack fire hoses up to 150 ft, or single jacket hoses up to 100 ft. It is not recommended for double jacket hoses ; for those, see the high-capacity IBD25 model.

Does the reel swing ?

Yes. The 14-gauge steel wall bracket allows a 180° swing for easy access to the hose.

Is a protective cover available ?

Yes, a red vinyl cover with velcro is available for the 24 in reel.

Suggested Complementary Equipment for Fire Hose Stations

To set up a complete fire hose station, see also a protective cover (IBC100), a high-capacity model (IBD25), a compact 18 in model (IBD18), a hydrant cover (CEBORA), a combination wrench (ICC250H), a universal spanner (ICC15), a threaded plug (ICC150), a recessed cabinet (BC100). Under "Accessories" at the bottom of the page.
