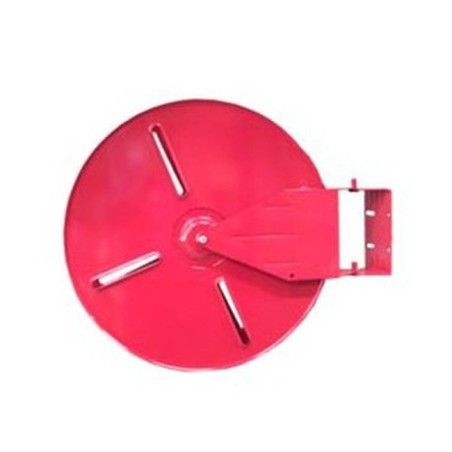

Circular reel, 18 in diameter, for fire hose of 75 ft

18 in Circular Reel for 75 ft Fire Hose

The 18 in diameter circular reel is designed to store and quickly deploy a 75 ft fire hose of 1.5 in diameter. Compact and solidly built, it ensures fast unwinding of the hose in an emergency while keeping the station tidy. Its circular shape makes it easy to wind a hose folded in two, and its wall mounting frees up floor space, making it a practical solution for commercial, industrial and institutional buildings.

Of robust steel construction, this reel is built to last and to withstand repeated use. Two sizes of circular reels are offered in the range, able to accommodate hoses up to 250 ft long depending on the model ; this 18 in version is optimized for 75 ft hoses.

Benefits of the Circular Fire Hose Reel

Beyond simple storage, this reel contributes to fast response and to the longevity of the fire hose.

Fast Unwinding in an Emergency

The circular design allows the hose to be unwound in a single motion, without knots or kinks, saving precious seconds during a response.

Solid Construction and Space Saving

Made of steel, the reel mounts on the wall and frees up floor space ; its compact structure suits corridors, workshops and technical rooms.

Buildings and Sectors Where This Reel Is Used

This circular reel is found in many environments :

• Commercial and institutional buildings with fire hose stations.
• Factories, warehouses and industrial sites.
• Indoor parking lots, garages and service areas.
• Residential buildings and municipal facilities.

Hose Installation on the Reel

The fire hose must first be folded in two, then inserted in the centre of the reel. When the water supply valve is above the reel, the hose coupling must be above the nozzle ; otherwise, invert the positions of the coupling and the nozzle. No special tool is required to set up the hose.

FAQ About the 18 in Circular Reel

What hose length does this 18 in reel accept ?

It is designed for a 75 ft fire hose of 1.5 in diameter. For greater lengths, the 24 in circular reel is more appropriate.

Is there a protective cover for this reel ?

Yes. A red vinyl cover with velcro is available for this 18 in reel, to prevent accidental unrolling and protect the hose.

How do I install the hose correctly ?

The hose must be folded in two then inserted in the centre of the reel, respecting the position of the coupling relative to the supply valve.

Suggested Complementary Equipment for Fire Hose Stations

To set up a complete fire hose station, see also a protective cover (IBC75), a standard 24 in model (IBD24), a horizontal reel (IBD100), a hydrant cover (CEBORA), a combination wrench (ICC250H), a universal spanner (ICC15), a threaded plug (ICC150), a recessed cabinet (BC100). Under "Accessories" at the bottom of the page.
