Universal vehicle bracket for 2.55 lb fire extinguishers

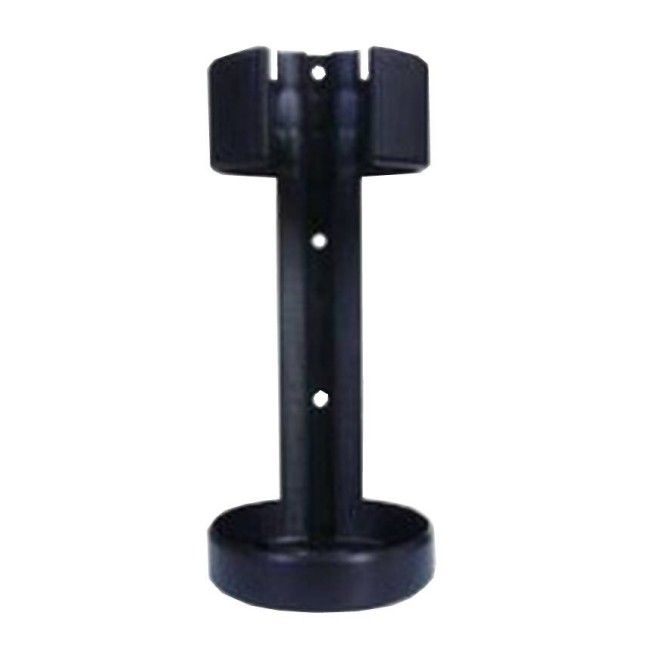

Universal hook for 2.5 lb portable fire extinguisher

The universal hook for a 2.5 lb portable extinguisher is designed to firmly hold a dry chemical extinguisher of this size. The key point: as long as the extinguisher cylinder fits snugly on the hook, it will hold securely. The pound rating refers to the agent content, not the total weight; hooks are designed for the extinguisher's total weight. It is ideal for vehicles, which often carry ABC dry chemical or, more rarely, BC extinguishers.

A major advantage of this universal hook is that it fits a wide range of portable extinguisher models from different manufacturers. You can change extinguisher brand without buying a new hook or drilling new holes: savings on equipment, time and effort. It also readily holds the temporary extinguishers loaned while yours are being serviced.

Specifications of the universal hook

• Type: universal wall hook for portable extinguisher.

• Capacity: 2.5 lb dry chemical portable extinguishers.

• Dimensions: height 4 in (10.16 cm) x length 8 in (20.32 cm) x width 4 in (10.16 cm).

• Weight: 0.5 lb (0.22 kg).

• Colour: black.

Location and installation of the hook

Per NFPA 10 on portable extinguishers, operational readiness is essential: place the extinguisher in a strategic spot, and never set it on the floor.

• Proper bracket: an extinguisher must always be installed on a purpose-built bracket, securely screwed to the wall.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation; an extinguisher is only laid down when empty, to spot it and have it recharged.

• Vibration: dry chemical extinguishers are sensitive to vibration that packs the powder; a well-tensioned hook limits this.

Maintenance and mounting tips

• Flat-head screws: use flat-head screws to fix the hook so you do not damage the extinguisher cylinder (the wrong self-drilling screws leave notches).

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

FAQ about the universal hook

Will my other-brand extinguisher fit?

Yes, as long as the extinguisher cylinder fits snugly on the hook, it works. This hook is designed to accommodate several brands.

Should it be installed vertically?

Yes, the Montreal Fire Safety Service recommends vertical installation; an extinguisher is only laid down when empty.

Which screws should I use?

Flat-head screws, so you do not damage the extinguisher cylinder.

Suggestions and accessories for your extinguisher hook

See also an ABC dry extinguisher 2.5 lb (EXABC2.5), a 2.5 lb chrome extinguisher (EXABC2.5C), a universal hook for 5 lb (CM5), a vehicle hook for 2.5 lb (CUN), an Amerex wall hook 2.5 lb (CAM2), a base for forklifts (CCHARIOT), a semi-recessed cabinet (EC5) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
