Metal base for the installation of a fire extinguisher on a forklift

Metal base for an extinguisher on a forklift

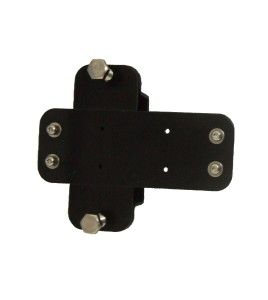

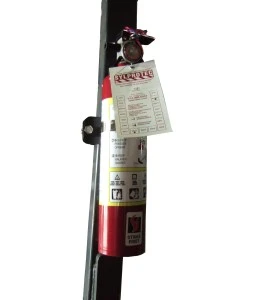

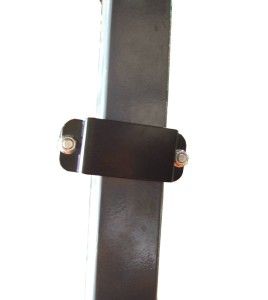

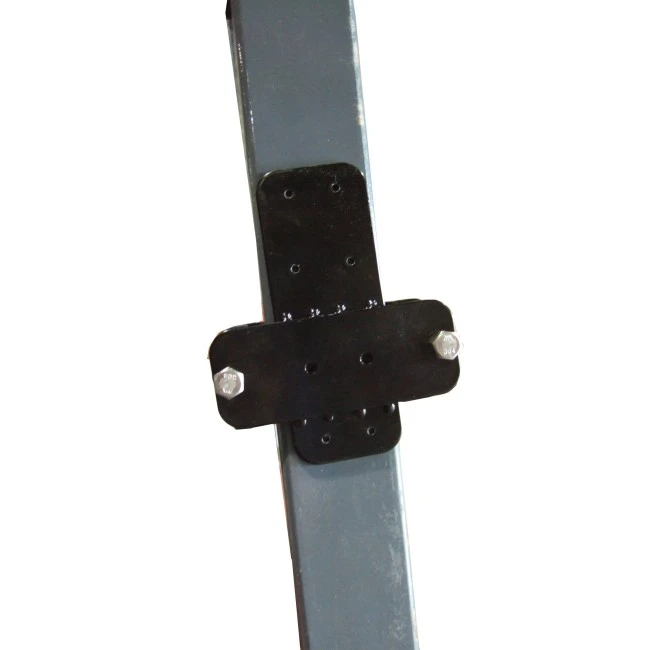

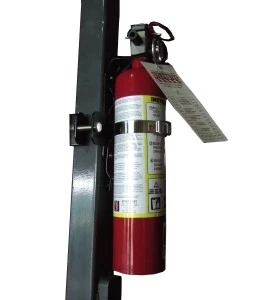

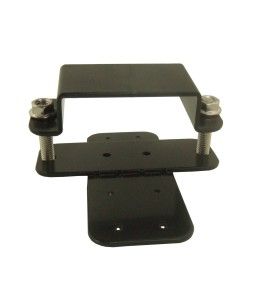

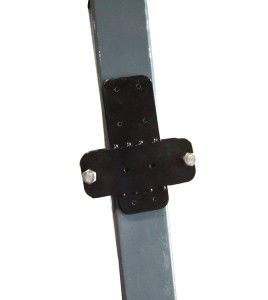

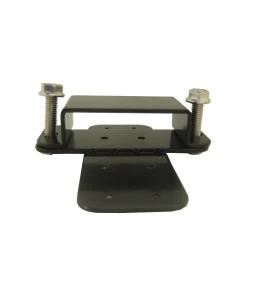

This metal base allows an extinguisher (2.5 to 5 pounds) to be installed on the vertical structure of a forklift (lift truck). Designed for a non-destructive attachment, it avoids damaging the forklift structure when installing the extinguisher hook. The base measures 10 cm between its two 2-inch bolts.

It is ideal to keep an extinguisher within reach on a forklift, in line with good operational-readiness practices. Note: the base is not compatible with all forklift structures; check compatibility before installation.

Specifications of the mounting base

• Type: metal mounting base for an extinguisher on a forklift.

• Capacity: 2.5 to 5 lb extinguisher.

• Bolt spacing: 10 cm between the two 2-inch bolts.

• Dimensions: height 4 in (10.16 cm) x length 10 in (25.4 cm) x width 4 in (10.16 cm).

• Weight: 0.5 lb (0.22 kg).

• Installation: non-destructive.

Location and installation of the hook

Per NFPA 10 on portable extinguishers, operational readiness is essential: place the extinguisher in a strategic spot, and never set it on the floor.

• Proper bracket: an extinguisher must always be installed on a purpose-built bracket, securely screwed to the wall.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation; an extinguisher is only laid down when empty, to spot it and have it recharged.

• Vibration: dry chemical extinguishers are sensitive to vibration that packs the powder; a well-tensioned hook limits this.

Maintenance and mounting tips

• Flat-head screws: use flat-head screws to fix the hook so you do not damage the extinguisher cylinder (the wrong self-drilling screws leave notches).

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

Compatibility restriction

The base is not compatible with all forklift structures. Check compatibility with your forklift before purchase and installation.

FAQ about the mounting base

Which extinguishers can be installed?

A 2.5 to 5 pound extinguisher, mounted with its hook on the vertical structure of the forklift.

Does installation damage the forklift?

No, the base is designed for a non-destructive attachment to the forklift structure.

Is it compatible with all forklifts?

No, it is not compatible with all structures; check compatibility before installation.

Suggestions and accessories for your forklift installation

See also a universal hook for 2.5 lb (CM2.5), a universal bracket for 5 lb (CM5), a 5 lb vehicle-rated extinguisher (EXABC5VR), an ABC size extinguisher 2.5 lb (EXABC2.5), a vehicle hook for 5 lb (CUNV5), a wall hook for 2.5 lb (CUN), a semi-recessed cabinet (EC5) and an extinguisher-location sign (EI700). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
