> Industrial Accessories> Precision instruments by REED> Industriel maintenance>Coating Thickness Gauge for ferrous (F) and non-ferrous (NF) metal substrates.

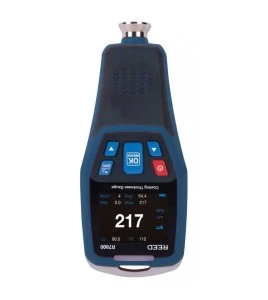

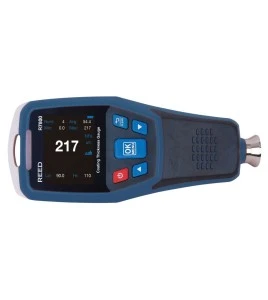

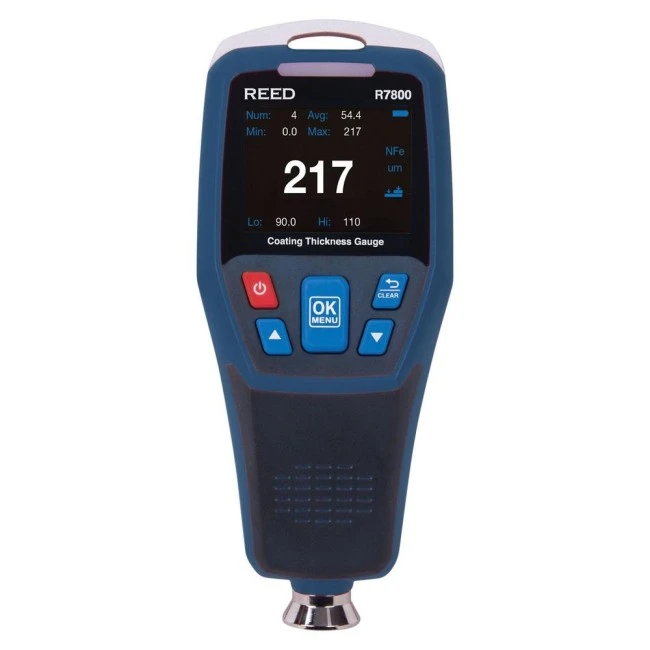

Coating Thickness Gauge for ferrous (F) and non-ferrous (NF) metal substrates. View larger

R7800A

Coating Thickness Gauge for ferrous (F) and non-ferrous (NF) metal substrates.

$331.45

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Add to Compare

Coating Thickness Gauge

Features:

  • Dual technology provides automatic recognition for ferrous (F) and non-ferrous (NF) metal substrates
  • Magnetic induction for ferrous metal substrates
  • Eddy current measurement for non-ferrous metal substrates
  • One or two point calibration
  • User-settable high/low alarms
  • Min/Max/Average
  • Memory stores 400 readings

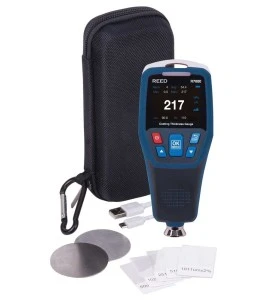

  • Includes two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards and carrying case.

Specifications:

Measuring Range: 0 to 1250μm, 0 to 49.21mils
Min. Curvature Radius: F: 1.5mm; NF: 3mm
Min. Area Diameter: F: 7mm; NF: 5mm
Min. Substrate Thickness: F: 0.5mm; NF: 0.3mm

Type of productSafety equipment
Main categoryIndustrial accessoiries
Sub categoryPrecision instruments by reed
Sub sub categoryIndustriel maintenance
Product codeR7800A
ManufacturerReed Instruments
FeaturesAutomatically detects ferrous and non-ferrous substrates
Additional FeaturesTri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
Measurement functionsCoating Thickness
IncludesCoating Thickness Gauge, Ferrous Substrate, Non-Ferrous Substrate, 5 Reference Films, USB Cable, Wrist Strap, Sensor Cover, Batteries and Hard Carrying Case
Power supply requirements2 AA Batteries
Length (in/cm)10.5 in / 26.67 cm
Width (in/cm)7.5 in / 19.05 cm
Height (in/cm)3 in / 7.6 cm
Weight (lb/kg)1.9 lb / 0.86 Kg
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

R7800_FR

Download (918.5k)

R7800_EN

Download (948.1k)

R7800_Manual

Download (5.47M)

R7800_Manuel

Download (5.41M)
