HT6510A

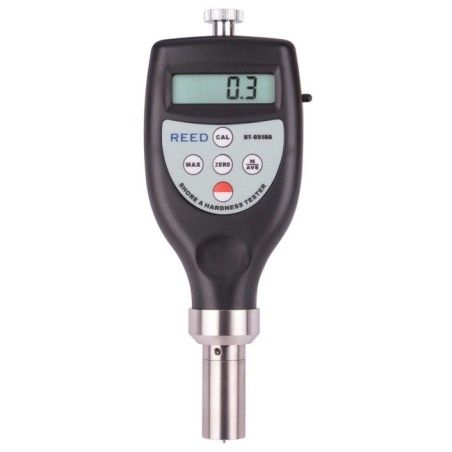

Type “A” Scale Durometer.

$471.90

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Type “A” Scale Durometer. Establishes hardness through penetration measurement of materials such as rubber, elastomers, neoprene, silicone and vinyl.

Features:

  • Digital durometer for Shore A hardness testing
  • Designed to measure the penetration hardness of rubber, elastomers and other rubber like substances such as neoprene, silicone and vinyl
  • Meets DIN 53505, ASTM D2240, ISO 7619 and JISK 7215
  • Pocket-sized model with integrated probe
  • RS232 serial interface
  • Measures maximum value
  • Calculates average value
  • Push button zero calibration
  • Measuring Range: 0 to 90 HA

Accessories available to complete your purchase:

VMUSB: USB/RS232 Cable & Software.
VW3USB11A: RS232 to USB Converter Cable

Type of productSafety equipment
Main categoryIndustrial accessoiries
Sub categoryPrecision instruments by reed
Sub sub categoryIndustriel maintenance
Product codeHT6510A
Approved/CertifiedProduct Certifications CE. Meets DIN 53505, ASTM D2240, ISO 7619 and JISK 7215
ManufacturerReed Instruments

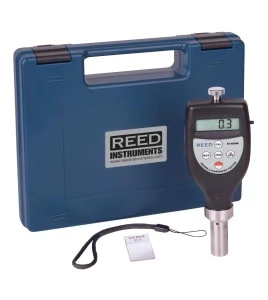

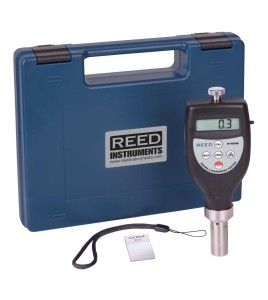

IncludesScale "A" Durometer, Wrist Strap, Test Block, Batteries and Hard Carrying Case
Power supply requirements2 "AAA" Batteries
Height (in/cm)2 in / 5.08 cm
Length (in/cm)9.5 in / 24.1 cm
Width (in/cm)8 in / 20.3 cm
Weight (lb/kg)1.5 lb / 0.7 Kg
Measurement functionsHardness of rubber, elastomers, natural rubber products, neoprene, polyester, resin, leather and soft PVC
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
