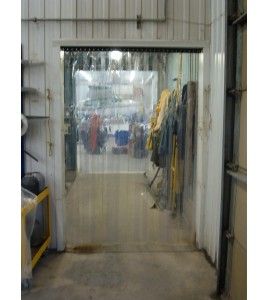

Clear vinyl 4 in. overlap, 8 in X 80 mil, isolate the cold and dust

Clear vinyl with overlaps for insulation against cold and dust, sold by the square foot

The AGVS224C clear vinyl with 4-inch overlap is designed to create an effective barrier against cold and dust while maintaining excellent visibility between areas.

This flexible PVC strip system is ideal for industrial openings requiring partial thermal insulation without blocking traffic.

The strips are sold by the square foot, allowing you to tailor the solution precisely to the dimensions of your opening.

Special features of the PVC strip with reinforced overlap

The 4-inch overlap between each strip significantly improves insulation compared to standard installation.

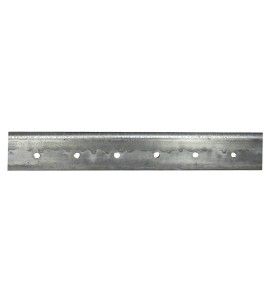

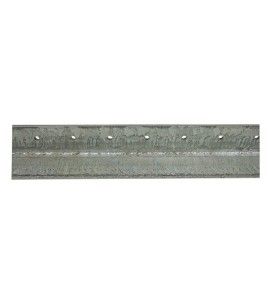

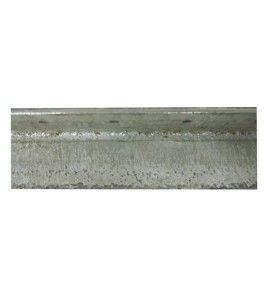

Each set comes with a 90° bent steel mounting bar, ensuring a solid and durable installation, even in demanding industrial environments.

The mounting holes are centered every 2 inches, facilitating precise and uniform installation.

Properties of high-thickness transparent flexible vinyl

The clear vinyl used for this industrial curtain has the following characteristics:

• 80 mil thickness, offering good mechanical and thermal resistance
• Tab width: 8 inches, for an optimal balance between flexibility and coverage
• High transparency, maintaining visibility and safety when moving around
• Flexible material that closes naturally after people or equipment has passed through

Applications for industrial curtains that insulate against cold and dust

This clear vinyl overlap curtain is recommended for:

• Insulating cold or refrigerated areas,
• Limiting drafts between two spaces,
• Reducing dust propagation,
• Separating work areas while maintaining visibility.

It is particularly suitable for warehouses, loading areas, workshops, production areas, and high-traffic areas.

Restrictions and limitations on the use of clear vinyl curtains

This product is designed for light to moderate thermal insulation and dust control.

It must not be used as a barrier:

• Against aggressive chemicals,
• Against welding spatter,
• Or as fire protection.

For specific requirements (heat, welding, chemicals), another type of vinyl must be selected.

Maintenance and lifespan of industrial PVC curtains

Maintenance of the AGVS224C clear vinyl curtain is simple:

• Clean with warm water and mild soap,
• Avoid solvents or abrasive products,
• Periodically inspect fasteners and tabs.

Thanks to its 80 mil thickness and robust fastening system, this product offers a long service life, which varies depending on traffic frequency and environmental conditions.

ℹ️ Important ordering information

• Product sold by the square foot
• Length to be specified when ordering
• Tabs supplied with:
  • 2 in. X 2 in. x 3/16 in. steel bar
  • Bolts, nuts, and washers included

📞 To confirm dimensions or obtain a complete estimate, contact our customer service department.

FAQ for AGVS224C clear vinyl with overlap

1. What is the purpose of the 4-inch overlap on the vinyl strips?

The 4-inch overlap improves insulation by limiting the passage of air, dust, and temperature variations between the strips. It also allows for better natural closure after people or carts have passed through.

2. Does clear vinyl protect against extreme cold?

80 mil clear vinyl provides effective thermal insulation against moderate cold, drafts, and heat loss.

For very cold or refrigerated environments, it is recommended to increase the thickness or overlap, or to opt for a system specifically designed for extreme cold.

3. Can this curtain be used in a high-traffic area?

Yes. The flexible PVC tabs are designed to deform without breaking and return to their original position. They are ideal for areas with frequent pedestrian and light mechanical traffic.

4. Is this vinyl suitable for a welding station?

No. This standard clear vinyl is not formulated to filter UV rays or resist welding spatter.

 For MIG or TIG welding, colored welding vinyl (green, yellow, orange, blue, or grade 8) must be used.

5. Can the length of the tabs be adjusted on site?

Yes. The product is sold by the square foot, which allows you to order a specific length. The tabs can also be cut to size during installation if necessary.

🧭 Help choose: clear vinyl vs. opaque vinyl

👉 Choose clear vinyl if:

• You want to maintain visibility between two areas
• Visual safety is important (forklifts, pedestrians),
• The main objective is insulation against cold, air, or dust
• There is no exposure to UV rays, heat, or splashes.

👉 Choose opaque or colored vinyl if:

• You need to block light, UV rays, or glare,
• You want to hide a work area,
• The application involves welding, heat, or specific industrial processes,
• Visibility is not a priority.

💡 Pro tip:

In some workshops, clear vinyl is used for traffic areas and colored vinyl for high-risk workstations.

Comparison of cold, dust, and welding curtains

Need help choosing the right configuration?

Our team can help you:

• Determine the ideal thickness,
• Choose the right vinyl color for your risk,
• Calculate the optimal height and overlap,
• Validate compatibility with rails, posts, and casters.

📞 Contact our customer service department for a customized recommendation.
