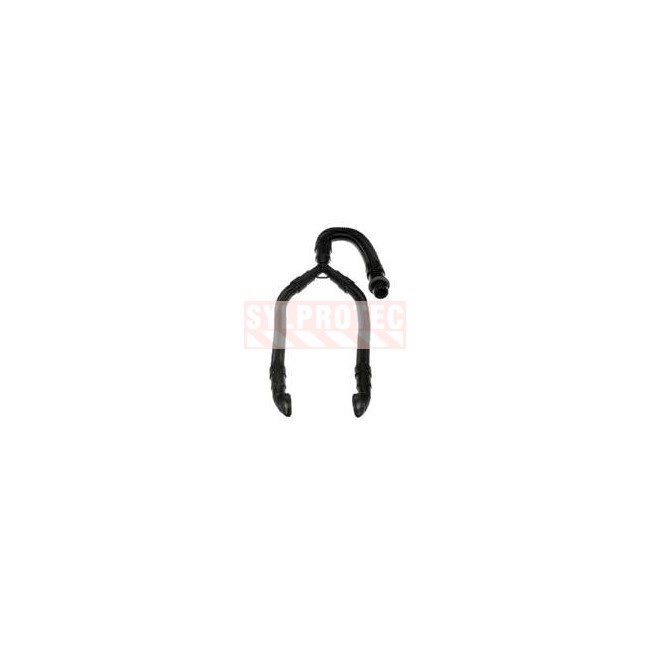

3M Versaflo BT-63 Adjustable-Length Breathing Tube for TR-600 PAPR

3M Versaflo BT-63 Adjustable-Length Breathing Tube for TR-600 PAPR

The 3M BT-63 breathing tube is a tight-fitting component featuring a built-in flexible coil. This coil allows each operator to freely adjust the tube length to their body profile and specific workstation requirements.

Compatible with 3M Versaflo TR-600 and TR-800 PAPR systems, it also connects to full facepieces from the FF-400, 6000 and 7800S series. This versatility makes it suitable for a wide range of tight-fitting respiratory protection configurations.

3M manufacturer code: 7100170023, model: BT-63

In an approved configuration, the BT-63 delivers an Assigned Protection Factor (APF) of 1,000 against certain gases, vapors and particles. This value is among the highest available for a positive-pressure PAPR system under North American standards.

This level of protection is required at high respiratory hazard workstations: chemical industry, pharmaceutical manufacturing, automotive, industrial painting and healthcare. The positive-pressure design of the TR-600 system maintains a slight overpressure inside the facepiece, preventing contaminants from entering even during frequent repositioning inherent to working with an adjustable tube.

The tube can be fully submerged for cleaning with the BT-953 kit, simplifying decontamination in environments with strict hygiene protocols.

Benefits

Adjustable length: a concrete field advantage

Morphology adaptation: the flexible coil of the BT-63 allows each operator to adjust the tube length to their body profile, without having to choose between a tube that is too short or too long. In facilities where multiple operators share the same TR-600 systems, this adaptability reduces the need to maintain multiple tube lengths in inventory.

Comfort during prolonged positions: during long-duration interventions in confined spaces or in finishing booths, the tension exerted by a poorly adjusted tube disrupts the facial seal and generates fatigue. The BT-63, adjusted to the optimal length, maintains constant tension throughout the respiratory circuit for the entire duration of the shift.

Reduction of snagging risks: a tube that is too long creates loops that can catch protruding elements in intervention zones. The precise adjustment of the BT-63 limits this risk by keeping the tube close to the body, even in areas with complex geometry.

Work environments where the BT-63 is required

Chemical and petrochemical industry: operators exposed to concentrated organic vapors or acid gases use TR-600 PAPR systems as last-resort protection in controlled-access zones. The adjustable length of the BT-63 facilitates movement between equipment without compromising respiratory circuit tension.

Paint booths and industrial finishing: painting technicians frequently work in bent-over or lying positions. The ability to adjust the BT-63 to the specific working position of the workstation reduces the discomfort of an ill-fitting tube throughout prolonged work cycles.

Pharmaceutical sector: at high-potency active pharmaceutical ingredient (HAPI) handling workstations, operators maintain rigorous respiratory protection over long work periods. The adjustable length contributes to sustained comfort.

Healthcare and emergency response: during interventions in contaminated environments, medical teams benefit from an adaptable tube that optimizes posture according to the nature of the intervention, whether working standing, kneeling or moving.

BT-63 vs BT-64 - Which one to choose?

The BT-63 and BT-64 are both compatible with the same systems (TR-600, FF-400, 6000, 7800S) and both can be fully submerged for cleaning. The difference is straightforward:

The BT-63 features a flexible coil for length adjustment - it is preferred when operators have varying morphologies or work in changing postures. The BT-64 offers a fixed-length, heavy-duty construction suited to environments with high mechanical stresses (friction, repeated twisting).

FAQ – Frequently Asked Questions

How to properly adjust the length of the BT-63 tube?

The adjustment is performed manually by rotating the flexible coil to extend or compress the tube to the desired length. This must be done with the system unpowered, before donning the facepiece and starting the TR-600 motorized unit. A correctly adjusted tube maintains a light, constant tension between the motorized unit worn at the belt and the full facepiece, without forming excessive loops or creating traction that would compromise the facial seal.

Is the BT-63 compatible with 3M TR-300 and TR-800 systems?

The product technical data confirms compatibility with the Versaflo TR-600 PAPR and FF-400, 6000 and 7800S full facepieces, as well as with the TR-800 series. Compatibility with the TR-300 is not confirmed in the official product documentation - the TR-300 uses dedicated Series S breathing tubes. For TR-300 systems, use the appropriate Series S tube. If in doubt about a specific configuration, contact the Sylprotec team before purchase.

Can the BT-63 be submerged for cleaning?

Yes, the BT-63 can be fully submerged for cleaning. The 3M BT-953 cleaning and storage kit provides maintenance equipment compliant with manufacturer recommendations. This feature simplifies end-of-shift decontamination in environments subject to strict hygiene protocols, particularly pharmaceutical and healthcare settings.

Suggestions complémentaires

For operators using the BT-63 with a TR-600 PAPR system in industrial or pharmaceutical environments, the 6 mils powder-free black nitrile gloves (GL7007) provide a light chemical barrier for sensitive product handling. The 3.9 mils black nitrile gloves (GL7004) suit lighter tasks requiring enhanced tactile sensitivity.

The Genesis safety eyewear with anti-fog clear lens (YAU3200) completes eye protection in indoor environments. The disposable Tyvek 400 coveralls with hood (VTY127SWH) protect the body against particle or dilute chemical splashes. The reusable P3001 Tri-Flange earplugs 26 dB (OA3001) complete protection in noisy environments. Under "Accessories" at the bottom of the page.

To keep your Versaflo TR-600 system in perfect condition, the TR-600 spark arrestor (RVTR662) protects filters from arc welding spatter, the Versaflo TR-600 airflow indicator (RVTR971) enables in-service airflow verification, and the TR-600 combined HEPA acid gas cartridge (RVTR6320N) delivers versatile filtration for mixed-contaminant environments.
