3M Versaflo BT-953 Cleaning and Storage Kit for BT-63 and BT-64 Breathing Tubes

3M Versaflo BT-953 Cleaning and Storage Kit for BT-63 and BT-64 Breathing Tubes

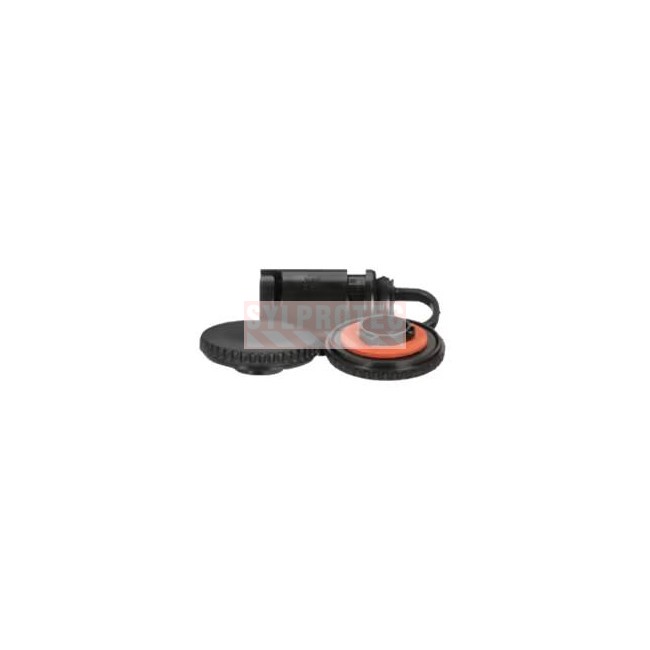

The 3M BT-953 kit is the essential accessory for maintaining and storing the adjustable breathing tube (BT-63) and the heavy-duty resistant breathing tube (BT-64) used with 3M Versaflo TR-600 PAPR systems.

It enables full submersion cleaning by sealing all openings on the breathing tube. The kit includes plugs and seals for the tube inlets and outlets, a cover for the battery connector, and caps for the breathing tube connector.

3M Manufacturer Code: 7100176699, model: BT-953

The seals included in the kit should be replaced after 30 uses or when they show signs of wear or damage. Regular replacement ensures a proper seal during every cleaning cycle.

The BT-953 kit is designed for environments with strict hygiene requirements: pharmaceutical manufacturing, automotive assembly, healthcare, spray coating, and general maintenance. It fits directly into the 3M recommended maintenance protocol for tight-fitting breathing tubes.

Benefits

Thorough Cleaning Without Residue or Damage

By sealing all tube openings, the BT-953 kit allows complete submersion cleaning without risk of water infiltration into internal components.

This cleaning method effectively removes biological and chemical contaminants accumulated after use, particularly in sectors with strict hygiene protocols.

Secure Storage Between Uses

The included caps also protect tube connectors during storage, limiting exposure to dust, ambient chemical agents, and mechanical shocks.

This passive protection extends the functional lifespan of the breathing tube and reduces cross-contamination risks between users or work shifts.

Confirmed Compatibility with the TR-600 Series

The BT-953 kit is specifically designed for the BT-63 and BT-64 breathing tubes used with Versaflo TR-600 PAPR systems. To further protect tubes during highly contaminated operations, the disposable protective tube cover RVTR642 is an ideal companion.

Cost-Effective Long-Term Maintenance

By enabling thorough cleaning and protected storage, the BT-953 kit helps extend the service life of BT-63 and BT-64 breathing tubes, making it a protective investment well worth the cost.

FAQ - Frequently Asked Questions

How many times can the seals in the BT-953 kit be reused?

The seals included in the BT-953 kit are designed to be replaced after 30 uses or whenever they show signs of wear or deterioration. Beyond this threshold, their ability to provide a complete seal during submersion cleaning can no longer be guaranteed. It is recommended to keep a log of cleaning cycles to anticipate seal replacement.

Is the BT-953 kit compatible with TR-800 breathing tubes?

According to the official 3M documentation, the BT-953 kit is confirmed compatible with the BT-63 and BT-64 breathing tubes used with Versaflo TR-600 PAPR systems. Compatibility with TR-800 systems is not indicated in the technical datasheet. For TR-800 systems, contact 3M or Sylprotec directly before use to confirm compatibility with your specific configuration.

How do I properly clean a BT-63 or BT-64 breathing tube using the BT-953 kit?

To clean a BT-63 or BT-64 breathing tube: install all plugs and caps provided in the kit on the tube inlets, outlets, and connectors. Once sealed, submerge the tube in an appropriate cleaning solution following 3M recommendations. Rinse thoroughly and allow to dry completely before reassembly. Inspect the seals after each use and replace them at the 30th cycle or when visible wear is present.

Complementary Suggestions

For maintenance and handling operations in PAPR environments, the recommended personal protective equipment includes nitrile Class 2 medical gloves (PS706), Silver Shield chemical-resistant gloves (GSSGXL), SecureFit SF201 clear anti-fog safety eyewear (YASF201), reusable UltraFit 340-4002 earplugs (OA4002) and the Pioneer 2077 disposable coverall with hood (V2077). These products are also available under the "Accessories" section at the bottom of the page.

Among accessories directly related to Versaflo TR-600 breathing tubes, the adjustable BT-63 tube (RBT63), the heavy-duty resistant BT-64 tube (RBT64) and the disposable polyethylene tube cover (RVTR642) are ideal companions to the BT-953 kit for complete PAPR system maintenance.
