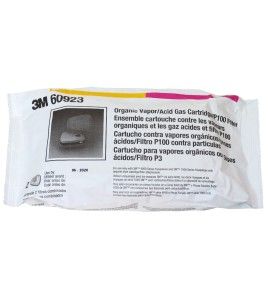

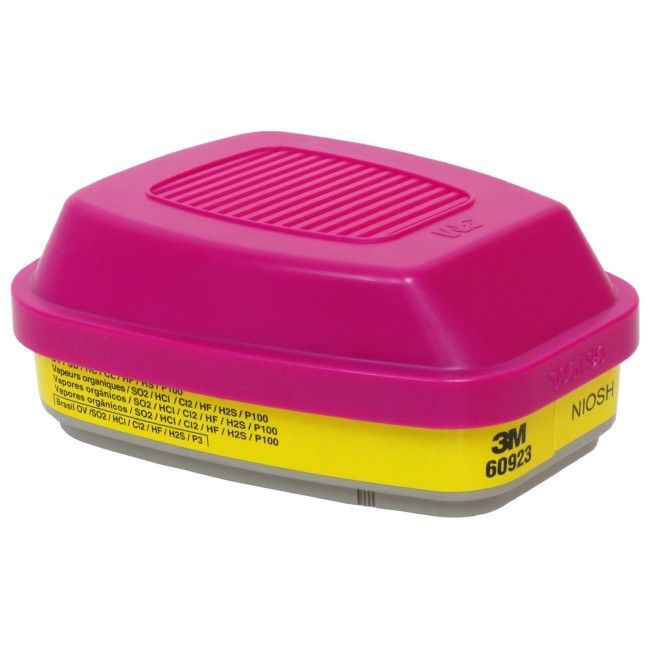

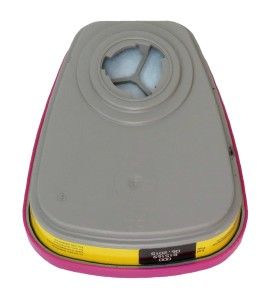

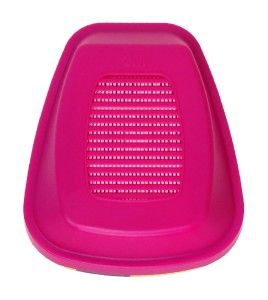

3M cartridge/P100 filter for organic vapours & acid gases model 60923

3M 60923 P100 combination cartridge: performance and safety for respiratory protection

Manufacturer 3M, model 60923

WARNING: This type of cartridge does not protect against carbon monoxide (CO) and carbon dioxide (CO₂). If there is a possibility of these gases being present in your work environment, other means of protection must be used.

The 3M 60923 cartridge integrates two inseparable elements: a P100 filter and an activated carbon cartridge. The P100 filter captures 99.97% of solid and liquid particles, including those from oily and non-oily aerosols. The “oil proof” membrane ensures optimal resistance to oil-containing particles. The activated carbon, located in the lower part, effectively absorbs organic vapors such as xylene, benzene, industrial solvents, and acid gases such as sulfur dioxide, chlorine, or hydrochloric acid. This cartridge is designed to provide reliable protection in high chemical concentration environments while respecting permissible exposure limits.

Discover our range of combination cartridges for 3M 6000, 7000, and FF-400 series respiratory protection masks:

• Combination cartridge for organic vapors (R60921)
• Combination cartridge for acid gases (R60922)
• Combination cartridge for organic vapors and acid gases (R60923)
• Combination cartridge for ammonia and methylamine (R60924)
• Combination cartridge for formaldehyde and organic vapors (R60925)
• Combination cartridge for organic vapors, acid gases, and multiple gases (R60926)

Certified respiratory protection for industrial environments.

Technical features of the combination cartridge against organic vapors and acid gases:

The 3M P100 combination cartridge is certified to NIOSH 42 CFR 84 standards. It offers protection against radioactive particles (uranium, plutonium), heavy metals (lead, cadmium, arsenic), low-level asbestos, and carcinogenic particles such as methylenedianiline (MDA). It is also effective against certain airborne biological particles, such as mold, Koch’s bacillus, or flu viruses (H5N1, H1N1). However, it does not protect against carbon monoxide (CO) or carbon dioxide (CO₂), and should not be used in low-oxygen environments.

Installing the combination cartridge on 3M respirator masks:

The 60923 cartridge installs easily on 3M respirator masks from the 6000, 7000 and FF-400 series. Simply clip it onto the side connectors of the mask, ensuring a perfect seal. Quick installation allows immediate use for respiratory protection against organic vapors and acid gases.

Maintenance and lifespan of the P100 combination cartridge:

P100 combination cartridges are disposable and require no maintenance. They should be stored in an airtight bag when not in use, as they continue to absorb airborne contaminants. If breathing becomes difficult, this indicates the filter is saturated. If odors or tastes of contaminants are noticeable, the activated carbon is saturated. In both cases, the cartridge must be replaced. It is recommended to follow the usage limits established by the manufacturer to ensure optimal protection.

Usage tips for effective respiratory protection with the 3M P100 cartridge:

This cartridge should only be used in environments where gas and vapor concentrations do not exceed 10 times the permissible exposure limit, according to CNESST. It is not suitable for sandblasting or oxygen-deficient environments. The user must not have a beard or any condition preventing direct contact between the mask and the face. In the event of hydrogen sulfide (H₂S) release, this cartridge can provide temporary protection for evacuation but must be discarded immediately after exposure.

FAQ about the 3M P100 combination cartridge against organic vapors and acid gases:

Does the 3M P100 cartridge protect against acid gases like sulfur dioxide and chlorine?

Yes, it is designed to effectively filter acid gases such as SO₂, Cl, and HCl within permissible exposure limits.

Can this cartridge be used for protection against carbon monoxide?

No, the P100 combination cartridge does not protect against CO. A self-contained breathing apparatus or another suitable system is required.

How do I know when to replace the cartridge?

If breathing becomes difficult or if you notice odors or tastes of contaminants, this means the filter or activated carbon is saturated. The cartridge must be replaced immediately.

Additional suggestions for the 3M P100 combination cartridge:

Need additional safety equipment? See the following items: CDN “Cartridge Respirator Required” sign (ECO106), “Notice: Cartridge Respirator Required in This Area” sign (EOAV328-107), half-face respirator (R6200), full-face respirator (RFF402), or Quick Latch half-face respirator (R6502QL).

Under “Accessories” at the bottom of the page. If you are looking for work equipment, check out the following products: Full-face respirator (R6800), 3M medium air-purifying protective suit (R6800PF) or the large version (R6900PF).
