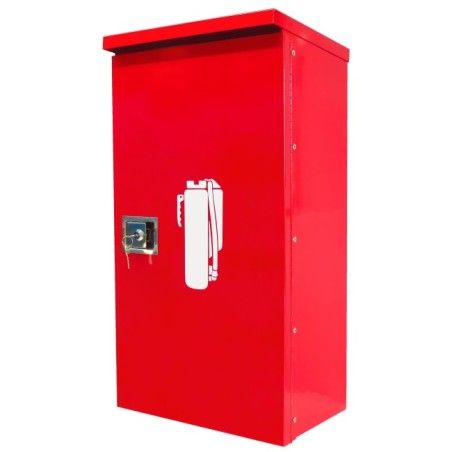

Surface-mounted outdoors steel fire cabinet for 10 lbs extinguishers.

Surface-mounted galvanized steel cabinet for 10 lbs fire extinguishers - full metal door, outdoor use

The EC11 cabinet by Sylprotec is a surface-mounted 16-gauge galvanized steel cabinet designed to protect 10 lbs portable fire extinguishers in demanding outdoor and industrial environments. Its red acrylic finish resists weather. The full metal door is mounted on a stainless steel piano hinge and secured with a zinc-plated latch. The cabinet is supplied with 2 keys. Extinguisher not included.

Interior dimensions: height 24 in x width 11 3/4 in x depth 7 3/4 in. Exterior dimensions: height 24 3/4 in x width 12 1/2 in x depth 8 1/2 in. This steel model offers superior mechanical impact resistance compared to plastic models, making it the preferred choice for industrial zones where the risk of impact or vandalism is elevated.

Benefits

16-gauge galvanized steel - impact resistance

16-gauge galvanized steel (approximately 60 mils thick) provides significantly greater mechanical strength than moulded plastic. This cabinet can withstand accidental impacts from material handling equipment, vehicles or heavy objects, making it the appropriate choice for warehouses, industrial workshops and loading areas where impact risks are real. The red acrylic coating provides good weatherproofing while maintaining equipment visibility.

Full door with stainless piano hinge

The full metal door is mounted on a continuous stainless steel piano hinge that eliminates weak points across the entire door height. This robust construction withstands repeated openings and harsh weather conditions without warping or play. The zinc-plated latch ensures secure closure with the 2 included keys, protecting the extinguisher against theft and vandalism.

Comparison with the EC9 plastic model

For 10 lbs extinguishers, the choice between EC9 (plastic) and EC11 (steel) depends primarily on the installation environment. The EC9 is lighter and more resistant to chemical corrosion and UV rays, suited to humid and saline environments. The EC11 offers superior mechanical protection and is preferable when the risk of impact, vandalism or physical shock is higher. Both are designed for outdoor surface mounting.

Fields of Application

The EC11 cabinet suits outdoor and industrial environments where mechanical resistance is a priority. It is particularly adapted to warehouses and distribution centers with heavy equipment traffic, industrial mechanical shops and garages, loading docks and forklift operating areas, outdoor parking lots and transportation zones exposed to impact risks, municipal installations and public infrastructure, as well as high-vandalism-risk industrial zones.

In these contexts, the strength of galvanized steel and the keyed lock system offer a level of protection that meets fire prevention inspector requirements and applicable safety codes.

FAQ - Frequently Asked Questions

Does this cabinet come with a lock and key?

Yes. The EC11 is supplied with a keyed latch and 2 keys included. This locking system protects the extinguisher against theft and vandalism while allowing rapid access to authorized personnel in case of emergency.

What is the steel gauge of this cabinet?

This cabinet is made of 16-gauge galvanized steel, approximately 60 mils (1.52 mm) thick. This thickness is standard for industrial fire extinguisher cabinets and provides a good balance between mechanical strength and manageable weight.

Can this cabinet be installed indoors?

Yes. Although designed for outdoor use, the EC11 can be installed indoors in industrial environments where impact resistance is required, such as workshops, warehouses and production areas. In highly humid or saline environments, the EC9 plastic model may be preferable to avoid long-term corrosion.

Complementary Suggestions for Outdoor Fire Safety

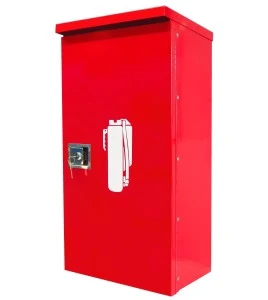

Looking for complementary fire safety equipment to go with this outdoor steel 10 lbs cabinet; also see the surface plastic 10 lbs cabinet (EC9), the surface steel 20 lbs cabinet (EC12), the surface steel 30 lbs cabinet (EC13), the painted semi-recessed 10 lbs cabinet (EC6), the stainless semi-recessed 10 lbs cabinet (EC6ST), the plastic surface 5 lbs cabinet (EC8), the recessed fire hose cabinet (BC100) and the surface fire hose cabinet (BC101).

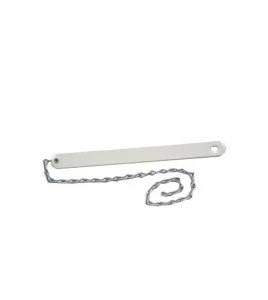

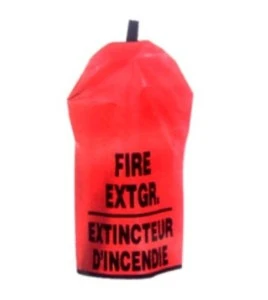

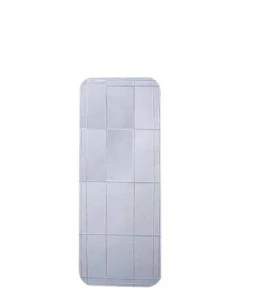

Under « Accessories » at the bottom of the page.

Looking for more outdoor fire protection equipment, see the plastic outdoor 10 lbs cabinet (EC9), the steel outdoor 20 lbs cabinet (EC12) and the steel outdoor 30 lbs cabinet (EC13).
