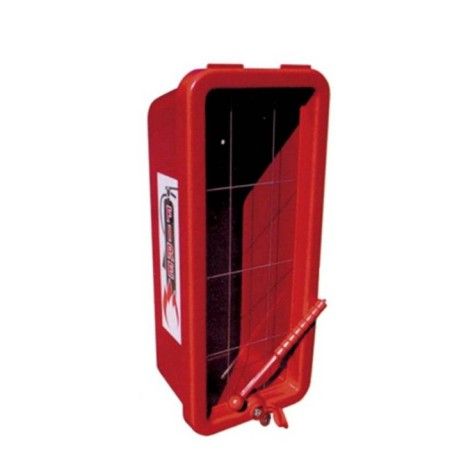

Surface-mounted outdoors plastic cabinet for 10 lbs extinguishers.

Surface-mounted plastic cabinet for 10 lbs fire extinguishers - pre-scored glass, outdoor use

The EC9 cabinet by Sylprotec is a surface-mounted cabinet made of red moulded plastic, designed to protect 10 lbs portable fire extinguishers in outdoor and industrial environments. Waterproof, UV-resistant and weatherproof, it keeps the extinguisher accessible in case of emergency while protecting it from weather conditions and unauthorized handling. Extinguisher not included.

Like the EC8 model for 5 lbs extinguishers, this cabinet features a breakable pre-scored glass panel for rapid access without glass shards, a weather-protected cylindrical lock and an included brass hammer. Interior dimensions: height 20 1/2 in x width 6 3/4 in x depth 6 in. Exterior dimensions: height 23 in x width 9 in x depth 7 in. Technical data sheet available in PDF format, attached at the bottom of the page (English only).

Benefits

Pre-scored glass - safe emergency access

The EC9 front glass panel is pre-scored in a controlled pattern that prevents glass shards when broken. In an emergency, a single strike with the included brass hammer provides immediate access to the 10 lbs extinguisher. This design is particularly valued in industrial environments, warehouses and frequented outdoor installations where speed of intervention and user safety are critical.

The included brass hammer is corrosion-resistant and remains functional in humid or saline environments. It is typically secured inside the cabinet so it is always available when needed.

Plastic construction for outdoor use

The EC9's red moulded plastic does not rust, does not chip and withstands freeze-thaw cycles, UV rays and humidity. It is a lighter and less expensive alternative to galvanized steel cabinets (EC11) for installations where corrosion is the main concern but mechanical impact is limited. Its bright red color enables rapid visual identification of the extinguisher during an emergency. Surface mounting allows direct installation without any wall cutout.

Weather-protected cylindrical lock

The keyed cylindrical lock prevents theft or vandalism. Its weather protector prevents the buildup of dust, ice or moisture inside the mechanism, ensuring reliable operation in all seasons. This locking system is particularly useful in public outdoor spaces, industrial parks and facilities accessible to the public.

Fields of Application

The EC9 cabinet is suited to outdoor environments requiring a surface-mounted weatherproof cabinet for 10 lbs extinguishers. It is particularly suited to exterior facades of industrial and commercial buildings, loading docks and delivery areas, covered and open parking lots, marinas and marine environments exposed to salt air, construction sites and temporary installations, as well as industrial zones exposed to weather or corrosion.

For environments requiring resistance to mechanical impacts or enhanced security, the EC11 galvanized steel model offers a more robust alternative for 10 lbs extinguishers.

FAQ - Frequently Asked Questions

What is the difference between the EC9 (plastic) and EC11 (steel) for 10 lbs extinguishers?

The EC9 plastic cabinet is lighter, less expensive and highly resistant to corrosion and UV rays, making it the preferred choice for humid, saline or heavily weather-exposed environments. The EC11 in 16-gauge galvanized steel offers superior mechanical impact resistance and is better suited to industrial areas where the risk of impact or vandalism is high. Both models are designed for outdoor surface mounting.

Is this cabinet compatible with all 10 lbs extinguishers?

This cabinet is sized for standard 10 lbs portable fire extinguishers. Interior dimensions are: height 20 1/2 in x width 6 3/4 in x depth 6 in. It is recommended to verify the extinguisher dimensions before installation to confirm compatibility.

Can this cabinet be installed indoors?

Yes. Although designed for outdoor use, the EC9 can be installed in humid, corrosive or industrial indoor environments. Its UV and moisture-resistant plastic makes it a durable option in mechanical shops, wash bays or refrigerated warehouses.

Complementary Suggestions for Outdoor Fire Safety

Looking for complementary fire safety equipment to go with this outdoor 10 lbs cabinet; also see the surface plastic 5 lbs cabinet (EC8), the surface plastic 20 lbs cabinet (EC10), the surface steel 10 lbs cabinet (EC11), the painted semi-recessed 10 lbs cabinet (EC6), the stainless semi-recessed 10 lbs cabinet (EC6ST), the large-format semi-recessed cabinet (EC7), the recessed fire hose cabinet (BC100) and the surface fire hose cabinet (BC101).

Under « Accessories » at the bottom of the page.

Looking for more outdoor fire protection equipment, see the plastic outdoor 5 lbs cabinet (EC8), the steel outdoor 10 lbs cabinet (EC11) and the plastic outdoor 20 lbs cabinet (EC10).
