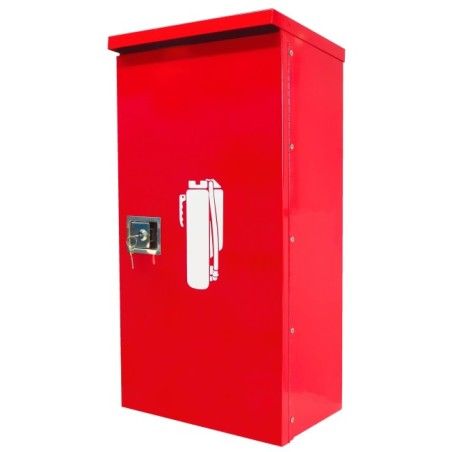

Surface-mounted outdoors steel fire cabinet for 20 lbs extinguishers.

Surface-mounted galvanized steel cabinet for 20 lbs fire extinguishers - full metal door, outdoor use

The EC12 cabinet by Sylprotec is a surface-mounted 16-gauge (77 mils) galvanized steel cabinet designed to protect 20 lbs portable fire extinguishers in demanding outdoor and industrial environments. Its red acrylic finish resists weather. The full metal door is mounted on a stainless steel piano hinge and secured with a zinc-plated latch. The cabinet is supplied with 2 keys. Extinguisher not included.

Interior dimensions: height 27 3/4 in x width 13 3/4 in x depth 8 3/4 in. Exterior dimensions: height 28 in x width 14 in x depth 9 in. This large-format steel model offers the optimal combination of mechanical strength and weatherproofing for 20 lbs extinguishers used outdoors.

Benefits

16-gauge galvanized steel at 77 mils

16-gauge galvanized steel at 77 mils (approximately 1.96 mm) represents the industrial standard for heavy-duty extinguisher cabinets. This thickness offers impact resistance superior to the standard 16-gauge (60 mils of the EC11 model), making it the appropriate choice for environments with the highest mechanical risks: heavy material handling zones, logistics warehouses and high-traffic industrial installations.

The red acrylic coating resists UV rays, humidity and temperature variations, extending cabinet service life in outdoor conditions. Galvanization protects the steel against rust, even in moderately humid environments.

Large format for 20 lbs extinguishers

The generous interior dimensions (height 27 3/4 in x width 13 3/4 in x depth 8 3/4 in) comfortably accommodate standard 20 lbs ABC dry chemical powder extinguishers. The full metal door with continuous piano hinge ensures warp-free opening across the full cabinet height, even after repeated use in harsh conditions.

Enhanced security - latch and 2 keys

The zinc-plated latch with the 2 included keys protects the extinguisher against theft, vandalism and unauthorized handling. This locking system is particularly useful in industrial zones accessible to multiple people, where controlling access to safety equipment is a risk management requirement.

Fields of Application

The EC12 cabinet is designed for demanding outdoor and industrial environments where a 20 lbs extinguisher must be protected against weather and mechanical risks. It is particularly suited to large warehouses and distribution centers, heavy industrial production zones, loading docks and forklift operating areas, truck parking and heavy transport zones, municipal installations and public infrastructure, as well as high-vandalism-risk zones requiring secure locking.

For highly humid or saline environments where chemical corrosion outweighs mechanical risks, the EC10 plastic model for 20 lbs extinguishers offers a lighter and more corrosion-resistant alternative.

FAQ - Frequently Asked Questions

What is the difference between the EC12 and EC11 steel cabinets?

Both models are 16-gauge galvanized steel with red acrylic coating, full door, stainless piano hinge and keyed latch with 2 keys. The main difference is size: the EC11 is designed for 10 lbs extinguishers (interior: 24 in x 11 3/4 in x 7 3/4 in) while the EC12 accommodates 20 lbs extinguishers (interior: 27 3/4 in x 13 3/4 in x 8 3/4 in). The EC12 is also specified at 77 mils, slightly thicker.

Is this cabinet compatible with all 20 lbs extinguishers?

This cabinet is sized for standard 20 lbs portable fire extinguishers. Interior dimensions are: height 27 3/4 in x width 13 3/4 in x depth 8 3/4 in. It is recommended to verify the exact extinguisher dimensions before installation to confirm compatibility.

Is this cabinet suitable for large-capacity CO2 extinguishers?

This cabinet is primarily sized for 20 lbs powder extinguishers. For CO2 or water extinguishers of large format, verify interior dimensions and extinguisher specifications before installation. For 10 lbs CO2 or 2.5 gal water extinguishers, consult the EC7 semi-recessed model.

Complementary Suggestions for Outdoor Fire Safety

Looking for complementary fire safety equipment to go with this outdoor steel 20 lbs cabinet; also see the surface steel 10 lbs cabinet (EC11), the surface steel 30 lbs cabinet (EC13), the surface plastic 20 lbs cabinet (EC10), the semi-recessed 20 lbs cabinet (EC7), the painted semi-recessed 10 lbs cabinet (EC6), the stainless semi-recessed 10 lbs cabinet (EC6ST), the recessed fire hose cabinet (BC100) and the surface fire hose cabinet (BC101).
