Bradley combination emergency shower and eyewash with handheld spray hose, certified ANSI Z358.1-2009.
search
  • Bradley combination emergency shower and eyewash with handheld spray hose, certified ANSI Z358.1-2009.
Bradley

Bradley combination emergency shower and eyewash with handheld spray hose, certified ANSI Z358.1-2009.

PD19314P
$1,575.30
Quantity

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

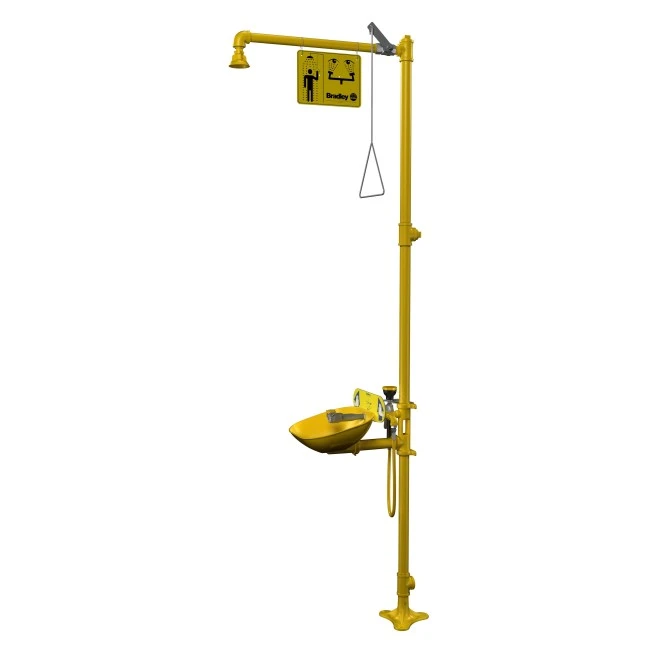

Bradley combination emergency shower and eyewash station with plastic bowl and handheld spray hose (S19314P).

Certified ANSI Z358.1-2009. The emergency shower has a minimum flow exceeding 20 GPM (76 L/min). The eyewash has a minimum flow exceeding 0.4 GPM (1.5 L/min). The handheld spray hose is considered a supplement for the eye/wash station and does not replace a full-body emergency shower. This emergency shower combo does not include a device for controlling water temperature.

Ideal for laboratories, medical facilities, industries, workshops, garages, airports, food processing plants, paper mills, and any other places where workers risk being exposed to dust, particulates, and/or hazardous, irritating or corrosive materials.

This emergency shower and eyewash combo is floor-mounted. The emergency shower has a single-step activation simply by pulling on the triangular handle. Once activated, the emergency shower will stay on until manually turned off. The eyewash station is just as easy to activate by pushing on the large handle, allowing the victim to use their hands to keep their eyes open when rinsing them. The hinged dust cover tilts open at the same time as the handle moves. Like the emergency shower, the eyewash station stays on until manually turned off. The handheld 2.4 m (8 ft) spray hose allows rinsing the face and the body.

The emergency shower has separate pipes for water intake and for the drain, and there is no risk of water accumulating in the drain pipe. The emergency shower has a yellow ABS plastic showerhead that imparts a spiralling motion to the water jet, allowing an even flow of water over a larger area. The bowl of the eyewash station is made of impact-resistant yellow plastic. The sprayheads are equipped with strainers to filter water particulates, and with an antimicrobial protection. Yellow and gray plastic covers protect the sprayheads from dust. Pipes are made of galvanized steel protected by yellow Bradtec covering.

The package includes:

  • Parts necessary for the installation of the emergency shower and eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
  • 1 universal safety sign to indicate the location of the emergency shower
  • 1 inspection tag
  • 1 trilingual instructions booklet (English, French, Spanish). PDF version also available, see below.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

We would also like to remind our customers that the emergency shower must not be used to rinse eyes, since the water flow is too strong and may aggravate eye injuries.

PD19314P

Data sheet

Type of product
Safety equipment
Main category
First aid and emergency showers
Sub category
Emergency showers
Sub sub category
Combined emergency shower
Name of the product
Combination emergency shower and eyewash
Product code
PD19314P
ANSI Requirements
Compliance ANSI Z358.1-2009
Manufacturer
Bradley
Features
Not include a device for controlling water temperature
Additional Features
The eyewash heads are equipped with filters to retain water particles and antimicrobial protection
Includes
Parts necessary for the installation of the emergency shower and eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
Includes 2
The 2.4 meter (8 foot) personal wash hose allows you to rinse your face and body
Type of emergency
Body and eye wash
Installation specifications
This emergency shower and eyewash combo is floor-mounted
Activation type
The emergency shower has a single-step activation simply by pulling on the triangular handle. The eyewash station is just as easy to activate by pushing on the large handle.
Operating flow rate
The emergency shower has a minimum flow exceeding 20 GPM (76 L/min). The eyewash has a minimum flow exceeding 0.4 GPM (1.5 L/min)
Material1
The body shower has a yellow ABS plastic head. The eyewash station has a yellow impact resistant plastic bowl. The piping is made of galvanized steel protected by the yellow Bradtect coating.
Material2
Yellow and grey plastic lids
Length (in/cm)
36 in / 91.44 cm
Width (in/cm)
18 in / 45.72 cm
Height (in/cm)
18 in / 45.72 cm
Weight (lb/kg)
15 lb / 6.80 Kg
Sold by
Unit
Return conditions
No returnable
