Bradley
Bradley Combined Emergency Shower and Eyewash ANSI Z358.1 Sylprotec
PD19314SB
$1,792.00
The Bradley Combined Emergency Shower (PD19314SB) features advanced Halo™ technology and a durable stainless steel bowl for superior eye and body decontamination. Fully ANSI Z358.1 compliant, it ensures high-visibility safety and reliable performance in demanding industrial or laboratory environments.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

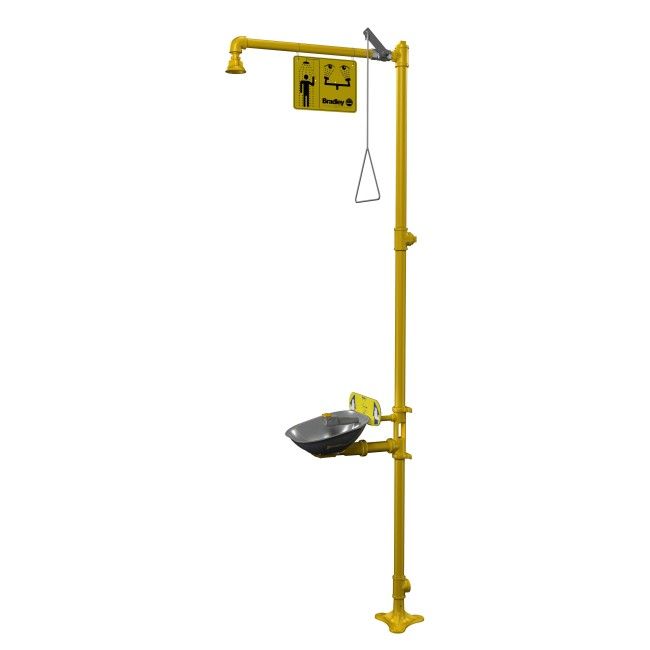

Bradley Combined Emergency Shower and Eyewash Station – Steel Bowl
Ensure immediate and effective decontamination in the event of an accident with the Bradley Combined Shower (Model S19314SB). This heavy-duty safety equipment integrates a full-body drench shower and a Halo™ eyewash, providing a complete solution for high-risk environments.
Built for maximum durability, it is ideal for laboratories, chemical plants, garages, and industrial sites where workers are exposed to hazardous or corrosive substances.
Performance and Regulatory Compliance
The Bradley combined shower is certified to the strictest standards to ensure a reliable emergency response:
-
ANSI Z358.1 Standard: Fully compliant with safety requirements for emergency wash equipment.
-
Optimized Flow Rates: The drench shower provides a flow rate exceeding 20 GPM (76 L/min), while the eyewash delivers at least 0.4 GPM (1.5 L/min).
-
Easy Activation: Instant start via a triangular pull handle (shower) or a large push handle (eyewash), leaving the user's hands free for rinsing.
Technical Specifications
| Feature | Details |
| Sylprotec Reference | PD19314SB |
| Materials | Galvanized steel piping, stainless steel bowl |
| Coating | Yellow Bradtect™ protective coating for high visibility |
| Mounting Type | Floor-mounted (pedestal) |
| Included Components | Universal safety sign, inspection tag, trilingual manual |
| Manufacturer | Bradley (Certified Quality) |
Why Choose Bradley’s Halo™ Technology?
The Halo™ eyewash system provides complete and uniform facial coverage. Unlike standard models, its spray heads are equipped with strainers to filter water impurities and feature antimicrobial protection for superior hygiene.
Installation and Maintenance Tips
-
Location: Install the shower within 10 seconds (approx. 50 feet/15 meters) of the hazard, on the same level.
-
Water Temperature: ANSI recommends using a Thermostatic Mixing Valve (sold separately) to deliver tepid water (between 60°F and 100°F / 16°C and 38°C) to prevent thermal shock.
-
Weekly Testing: It is crucial to activate the shower once a week to flush the lines and verify proper valve operation.
Warning: The drench shower should never be used to rinse the eyes, as the high pressure could aggravate injuries.
FAQ - Frequently Asked Questions
1. Does this shower include a temperature control valve?
No, this base model does not include a control device. To be fully compliant with ANSI comfort recommendations, we suggest adding a Bradley thermostatic valve.
2. Can this shower be installed outdoors?
This model is designed for indoor use. For areas prone to freezing, specific "freeze-protected" versions are available. Contact us for more details.
3. Is the steel bowl corrosion-resistant?
Yes, the stainless steel bowl and the Bradtect™ coating on the piping are designed to withstand harsh industrial environments and high humidity.
Recommended Complementary Products
Do you need additional safety equipment? Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).
Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).
PD19314SB
Data sheet
- Product group
- Safety equipment
- Main category
- First aid and emergency showers
- Sub category
- Emergency showers
- Sub sub category
- Combined emergency shower
- Name of the product
- Combination emergency shower and eyewash
- Product code
- PD19314SB
- Sort by keywords
- Combined steel bowl
- ANSI Requirements
- Compliance ANSI Z358.1-2009
- Manufacturer
- Bradley
- Features
- Not include a device for controlling water temperature
- Additional Features
- The eyewash heads are equipped with filters to retain water particles and antimicrobial protection
- Includes
- Parts necessary for the installation of the emergency shower and eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
- Type of emergency
- Body and eye wash
- Installation specifications
- This emergency shower and eyewash combo is floor-mounted
- Activation type
- The emergency shower has a single-step activation simply by pulling on the triangular handle. The eyewash station is just as easy to activate by pushing on the large handle.
- Operating flow rate
- The emergency shower has a minimum flow exceeding 20 GPM (76 L/min). The eyewash has a minimum flow exceeding 0.4 GPM (1.5 L/min)
- Material1
- The body shower has a yellow ABS plastic shower head. The eyewash has a stainless steel bowl, robust and resistant. The piping is made of galvanized steel protected by the yellow Bradtect coating.
- Material2
- Yellow and grey plastic lids
- Length (in/cm)
- 36 in / 91.44 cm
- Width (in/cm)
- 18 in / 45.72 cm
- Height (in/cm)
- 18 in / 45.72 cm
- Weight (lb/kg)
- 15 lb / 6.80 Kg
- Sold by
- Unit
- Return conditions
- No returnable
