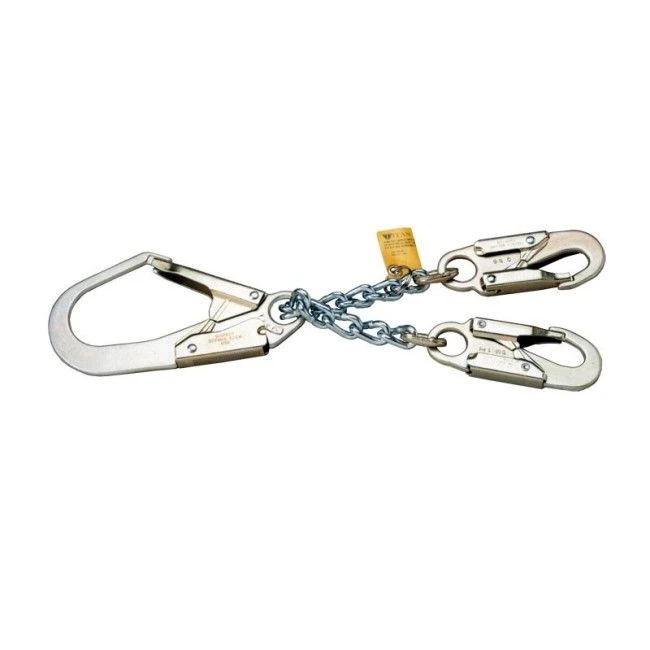

Positioning assembly chain. This assembly is equipped with two standard double-locking carabiners, a locking rebar/scaffold hook, and a rebar chain. All carabiners are double-locking and meet ANSI Z359.1-2007 standards. They can withstand a force of 3600 lbs (16 kN) without distorsion. The 25 in (63.5 cm) long chain is made of steel like the carabiners.

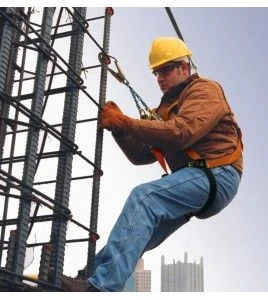

This item can support a weight of 310 lbs (141 kg). Both standard carabiners are to be inserted in the lateral positioning D-ring located near the hips and the rebar/scaffold carabiner is to be hooked to the anchor point. One must keep in mind that it is necessary to have a full fall protection kit while using a positioning assembly because the latter won’t absorb the shock of a fall.
|Type of product||Safety equipment|
|Main category||Personal protection|
|Sub category||Fall protection|
|Sub sub category||Fall protection accessories|
|Name of the product||Positioning chains|
|Approved/Certified||Complies with ANSI Z359.1-2007|
|Comfort features||The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming|
|Includes 2||Equipped with two different types of carabiners: 2 standard carabiners with a ¾" / 19mm opening and scaffold carabiner with a 2 ½" / 64mm opening. They are self-locking and require a double action to open|
|Length (in/cm)||6 in / 15.24 cm|
|Width (in/cm)||6 in / 15.24 cm|
|Height (in/cm)||2 in / 5.08 cm|
|Weight (lb/kg)||5 lb / 2.26 Kg|
|Return conditions||No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page|
|Caution||The maximum weight supported is 310 lb / 141 kg, which includes the weight of tools and any other equipment carried by the worker|
