Amerex 860 heavy-duty vehicle rubber strap bracket for 5 lb portable fire extinguishers, 2-3/4 to 4.25 inches

Amerex 860 vehicle hook for 5 lb extinguisher

The Amerex 860 hook is a rugged vehicle bracket for a 5 lb portable extinguisher with a 2.75 to 4.25 inch diameter. Its 5/32 inch (4 mm) thick steel frame makes it a durable choice for trucks, machinery and demanding conditions.

Specifications of the vehicle hook

• Type: vehicle hook for portable extinguisher.

• Capacity: 5 lb extinguisher.

• Extinguisher diameter: 2.75 to 4.25 in.

• Dimensions: height 2 in (5.08 cm) x length 11 in (27.94 cm) x width 6 in (15.24 cm).

• Weight: 2,5 lb (1,13 kg).

• Material: steel frame 5/32 in (4 mm) thick.

• Colour: Red/Black.

• Manufacturer: Amerex (code 860).

Location and installation of the vehicle hook

Per NFPA 10 on portable extinguishers, operational readiness is essential: place the extinguisher in a strategic spot in the vehicle, and never set it on the floor.

• Proper bracket: the extinguisher must always be installed on a purpose-built bracket, securely screwed to the vehicle's inner wall.

• Vertical position: the Montreal Fire Safety Service (SIM) recommends a vertical installation; an extinguisher is only laid down when empty, to spot it and have it recharged.

• Vibration: dry chemical extinguishers are sensitive to vibration that packs the powder; a well-tensioned vehicle hook limits this.

Maintenance and mounting tips

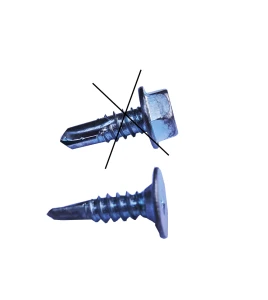

• Flat-head screws: use flat-head screws to fix the hook so you do not damage the extinguisher cylinder.

• No overload: do not hang any clothing or object on the hook or the extinguisher.

• Check: regularly verify that the hook holds the extinguisher well and is securely fastened.

FAQ about the vehicle hook

What sets this Amerex hook apart?

Its 5/32 in (4 mm) thick steel frame makes it a rugged bracket, designed for vehicle use and demanding conditions.

Should it be installed vertically?

Yes, the Montreal Fire Safety Service recommends a vertical installation; an extinguisher is only laid down when empty.

Which screws should I use?

Flat-head screws, so you do not damage the extinguisher cylinder.
