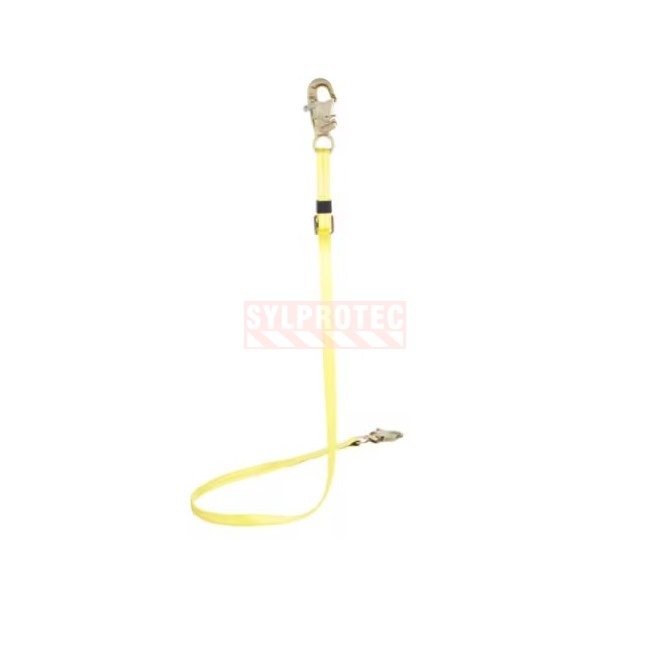

Adjustable web positioning lanyard DBI-SALA 3M 6 ft 1231016C

Adjustable web positioning lanyard DBI-SALA(R) 3M(TM) for pole climbers

3M purchase code: 7100232058, 3M model number: 1231016C.

Designed for linemen and utility pole climbers, this adjustable web positioning lanyard from DBI-SALA(R) wraps around the pole and connects to the two lateral positioning D-rings of a belt or harness. The worker leans back into it under tension to work hands-free. The length is easily set with an adjuster, so the support can be matched to the pole size. This is a work positioning device, NOT a fall arrest device.

This lanyard also comes in other versions depending on material and connector: a kernmantle rope model with steel hook (FPL1234070), with aluminum hook (FPL1234071) and a nylon rope model (1234080, 1234081). See the products enabled by the green hyperlink or browse the Lanyards tab.

Material and connectors

The lanyard is made of rugged, abrasion-resistant polyester webbing. It is fitted with easy-to-use self-locking snap hooks at each of its two ends. A sliding adjuster lets you set the desired length with one hand. The lanyard features a 3M(TM) Connected Safety ID for equipment tracking and inspection.

Adjustment and work positioning

To get into position, the climber passes the lanyard around the pole, connects the snap hooks to the lateral D-rings, then adjusts the length with the adjuster until a firm support is reached. The worker can then lean back under tension and work hands-free. The 1.8 m (6 ft) lanyard offers an adjustment range suited to climbing and holding position on utility poles.

Fall arrest system required

This positioning lanyard does NOT replace a fall arrest device. Free fall must stay limited to 2 ft (0.6 m). For fall protection, it must be used WITH a separate fall arrest system: a full-body harness with lateral D-rings and a fall arrest device (self-retracting lifeline, rope grab, or a pole fall-limiting device such as the Cynch-Lok(TM)). The load capacity is 310 lb (141 kg) including the user, clothing and tools. This positioning device meets OSHA requirements; refer to the product label and manufacturer instructions for applicable certifications.

Inspection

Like any protective equipment, this lanyard must be inspected before each use: webbing, stitching, adjuster, snap hooks and labels. Any cut, burned or frayed webbing or damaged stitching requires immediate removal from service. A formal annual inspection by a qualified person other than the user is required, as well as a full inspection after any fall before returning the lanyard to service. Clean with water and mild soap, then air dry.

FAQ: Frequently asked questions about the web positioning lanyard

Here are the most common questions about this positioning lanyard for pole climbers.

What is the difference between the web model and the rope models?

The web model (FPL1231016C) uses polyester webbing with snap hooks at both ends, while models 1234070, 1234071, 1234080 and 1234081 use an adjustable rope with a connecting hook. The choice depends on the climber preference and the type of work.

Does this lanyard arrest a fall?

No. It is a work positioning device that holds the worker in support against the pole. It must always be combined with a separate fall arrest system (full-body harness and fall arrest device).

What is the load capacity?

The maximum capacity is 310 lb (141 kg), including the user, clothing and tools.

How is the length adjusted?

The length is set with one hand using the sliding adjuster, so the support can be matched to the pole size during the climb.

Complementary suggestions

A rebar worker on site connecting with this DBI-SALA 3M lanyard completes personal protection with a high-visibility garment (V5514F2C), a helmet (TA222) with an integrated chin strap, cut-resistant gloves (GS13SXB), safety eyewear (YA3304) and corded earplugs (OA1101) that stay around the neck and cannot drop from height.

For the lanyard to work in a complete fall arrest system, plan a DBI-SALA 3M harness (FPH140103XCAP), a DBI-SALA 3M fixed anchor (FPA2104562), a DBI-SALA 3M tie-off anchorage strap (FPA120139X), a 200 ft RollGliss R550 rescue (FPLR550) and descent device for emergency lowering, a DANGER barricade tape (ECT3RE9) to cordon off the ground area and the sign (ECO130) reminding that the harness is mandatory.
